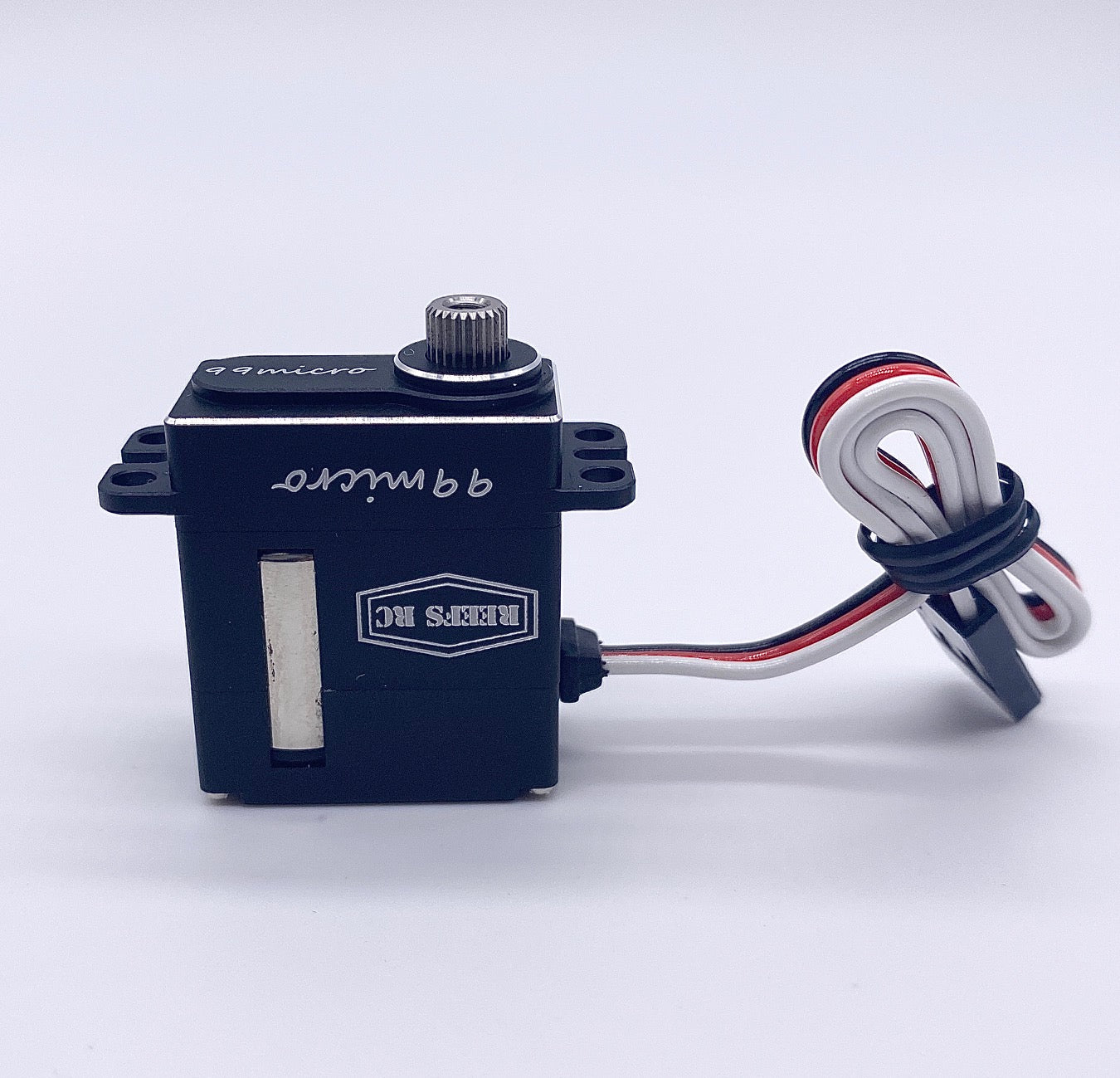

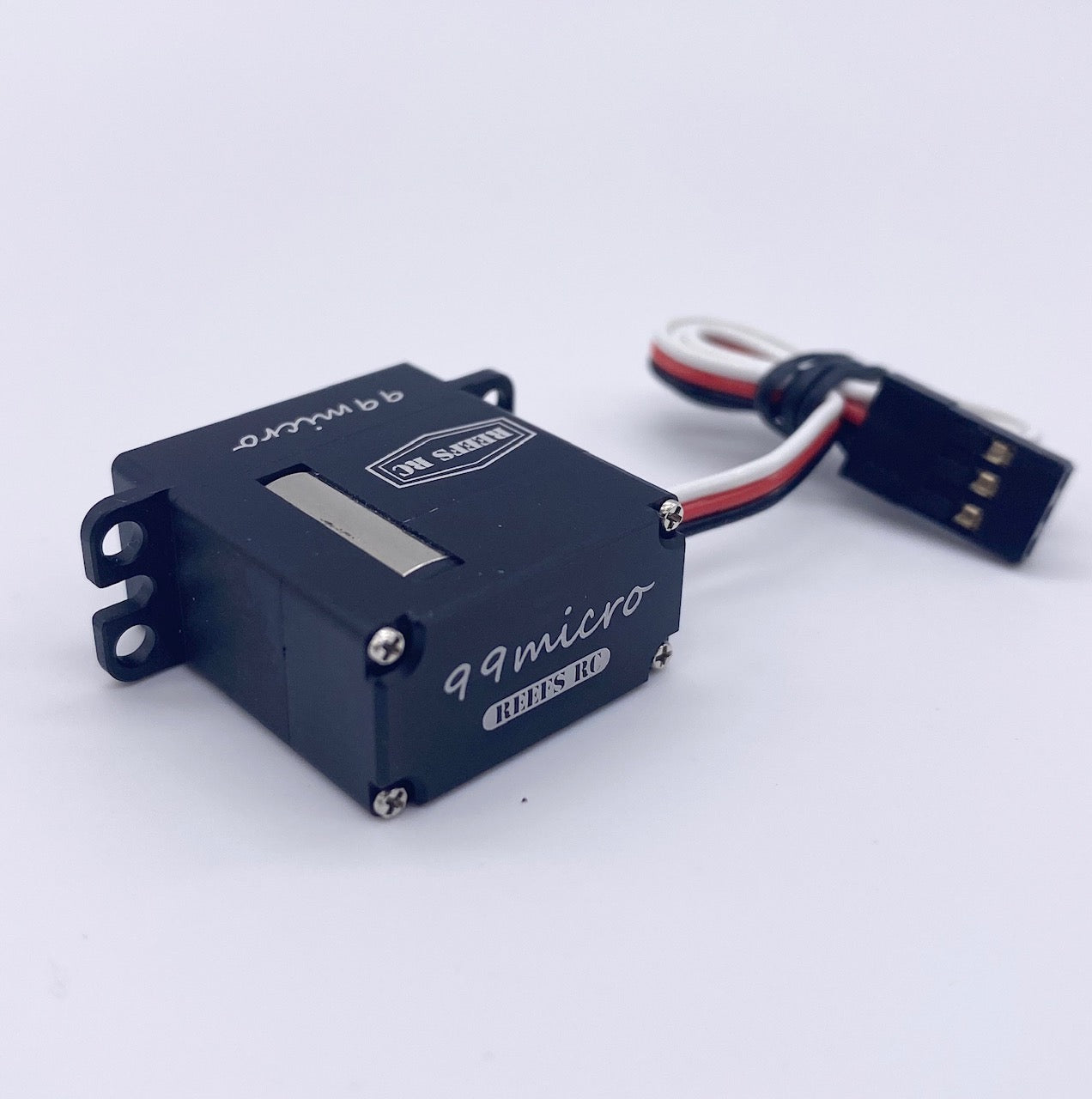

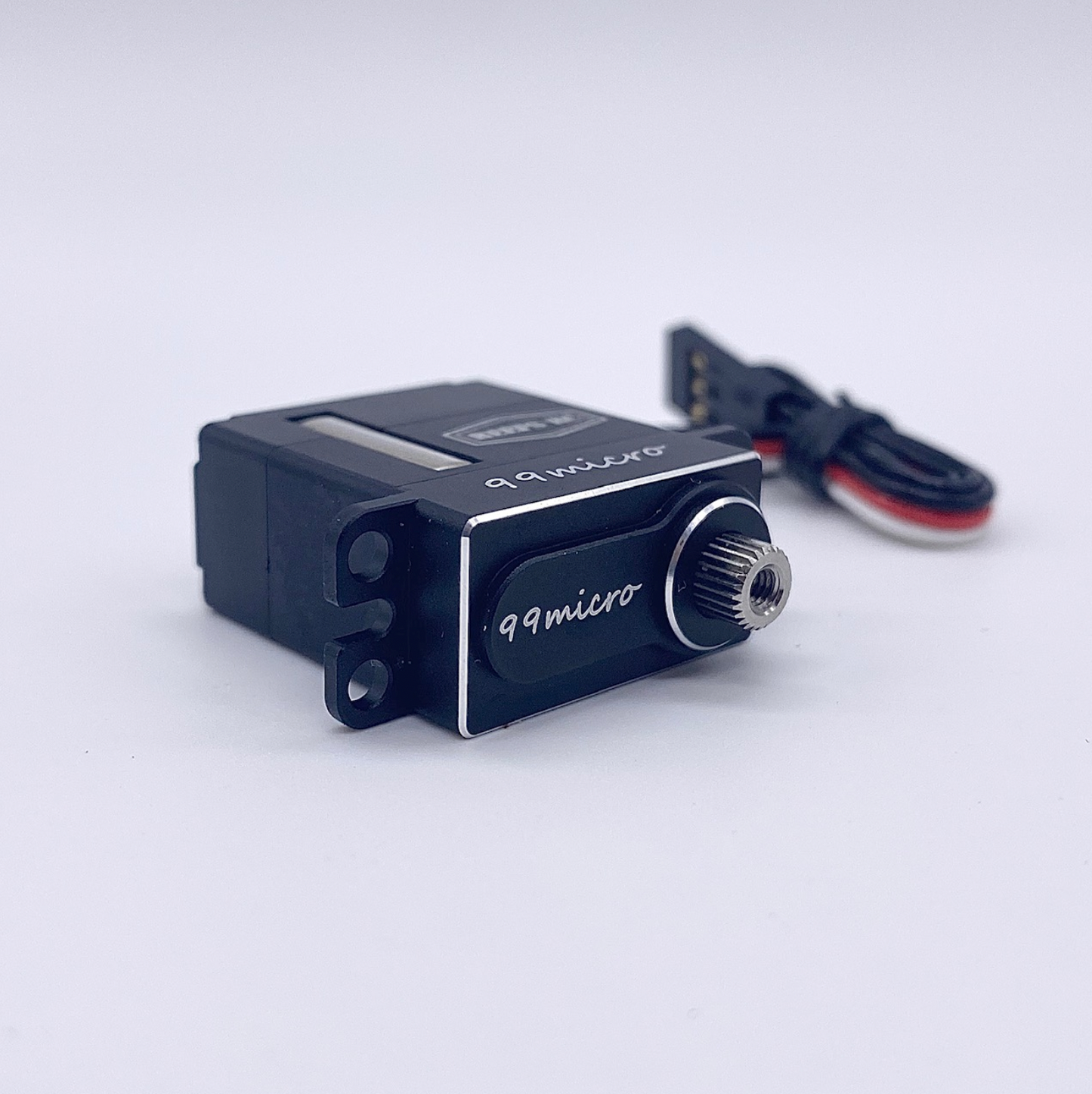

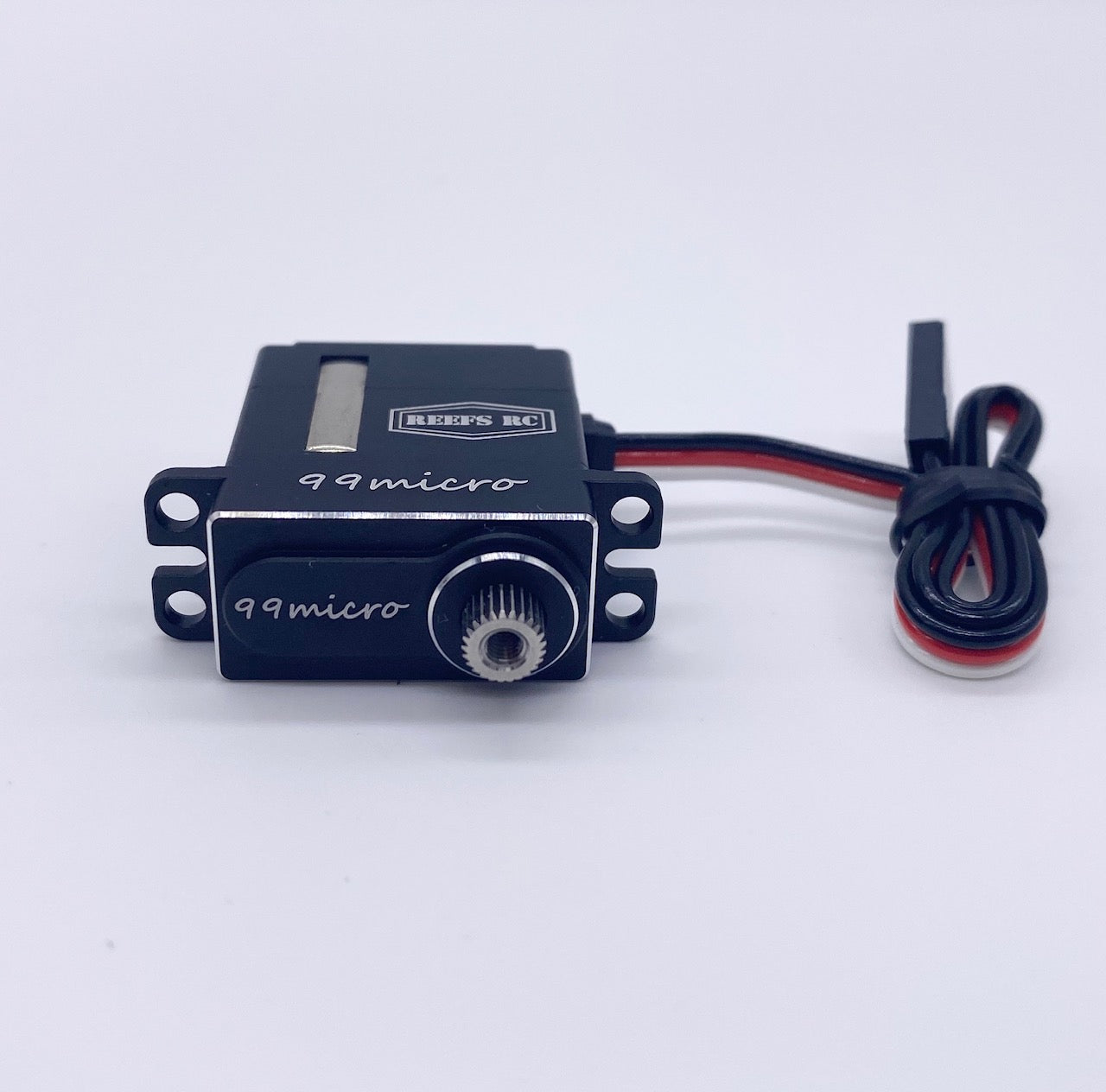

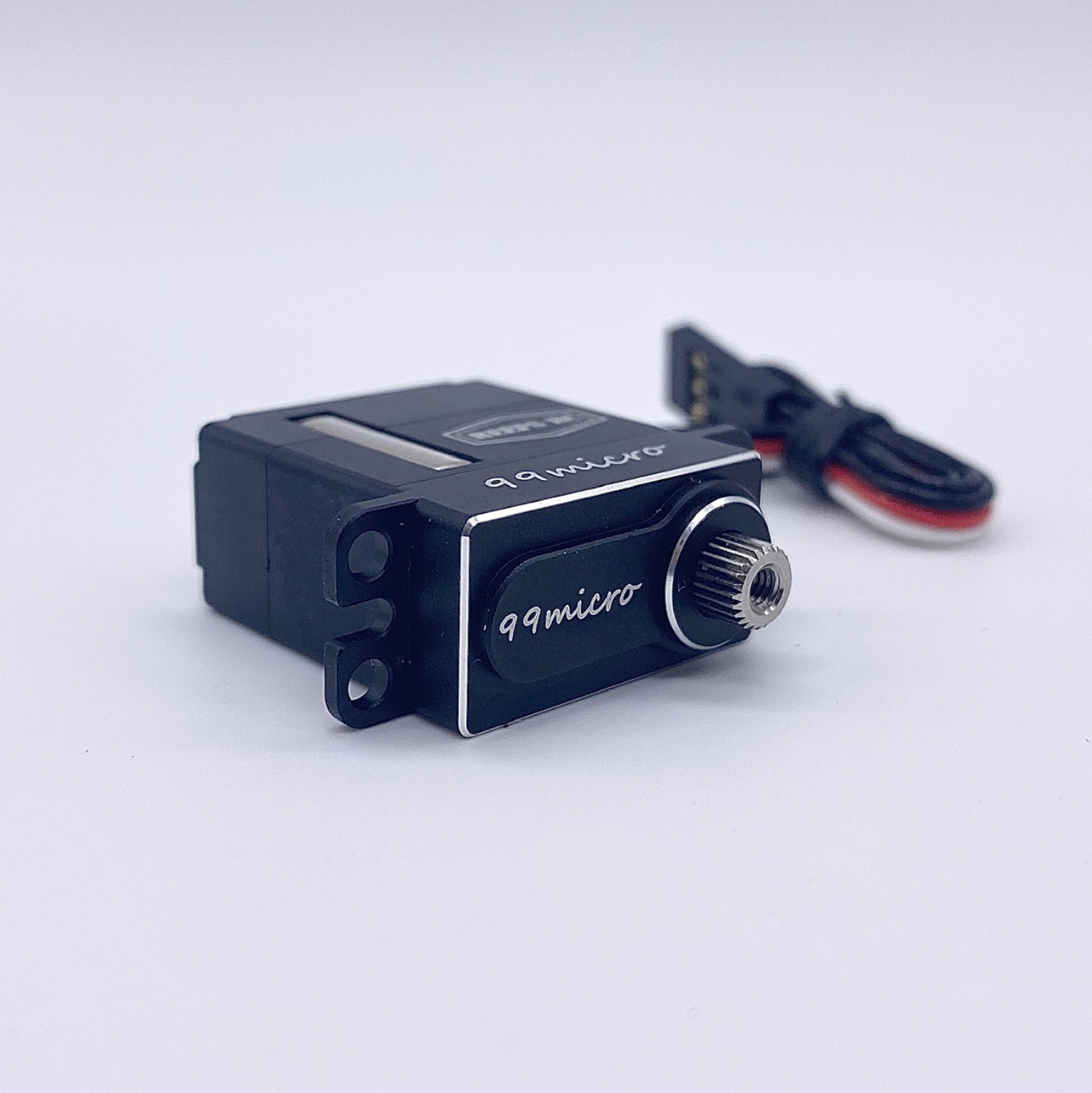

99 Micro Servo #REEFS25

99 Micro Servo #REEFS25

Regular price $59.99
Regular price Sale price $59.99
Discounted Price Sold out
Shipping calculated at checkout.


NOTE: Not recommended for use on the Mini-B or Mini-T.

We recommend the Micro 179.

179 Smart Brushless Micro Servo – Reefs RC

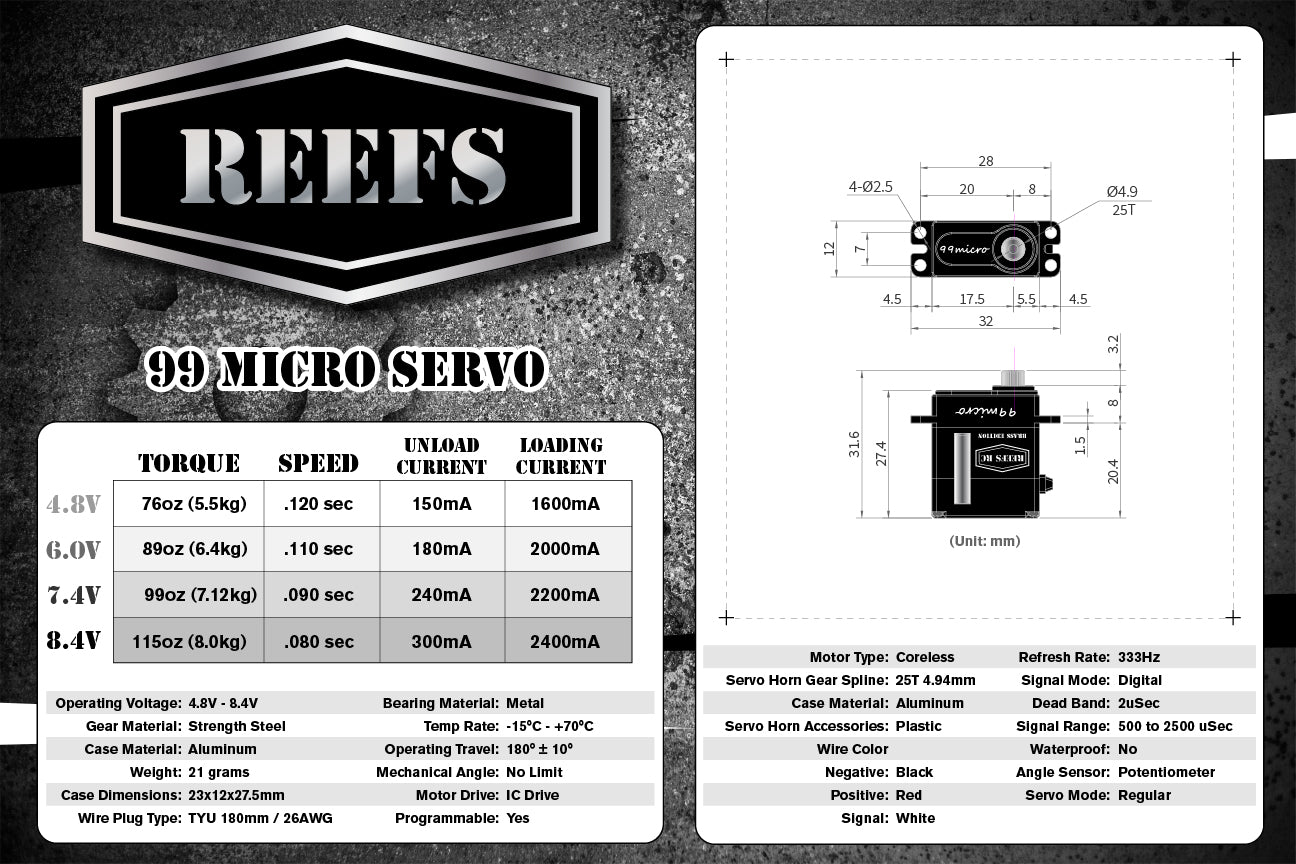

SPECIFICATIONS:

  • High Torque High Speed Micro Servo
  • WATERPROOF : Voltage 6v-8.4v
  • Internal: Precision Metal Gears / All CNC Alum. REEFS Case

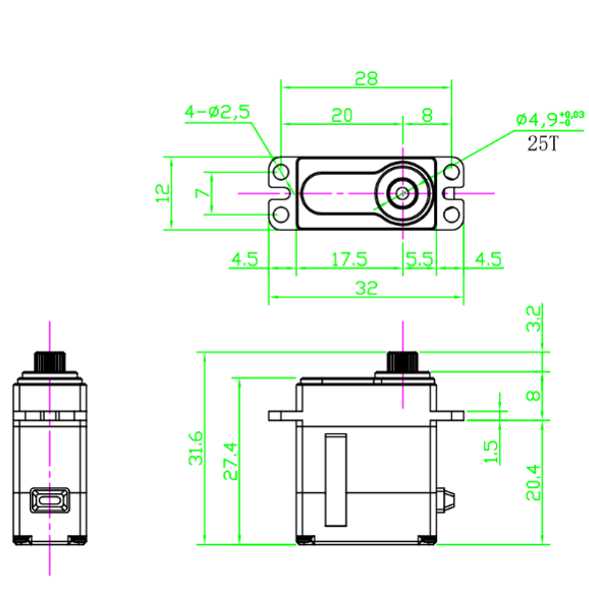

  • Bearing Type: 2BB /Weight: .70oz / Dimension: .90 x .47 x 1.08 (LWH)
  • Torque: 89oz @ 6.0v / 99oz @ 7.4v / 115oz @ 8.4v
  • Speed: .11sec @ 6.0v / .09sec @ 7.4v / .08sec @ 8.4v
  • Spline: 25T Micro / Dead Band Width: 2¦Ìs / BEC Not Required

Unload Current
  • 200mA @ 4.8V
  • 350mA @ 6.0V
  • 450mA @ 7.4V
  • 550mA @ 8.4V

Loading Current (Max Stall Current)
  • 1600mA @ 4.8V
  • 2000mA @ 6.0V
  • 2200mA @ 7.4V
  • 2400mA @ 8.4V

Item# REEFS25
