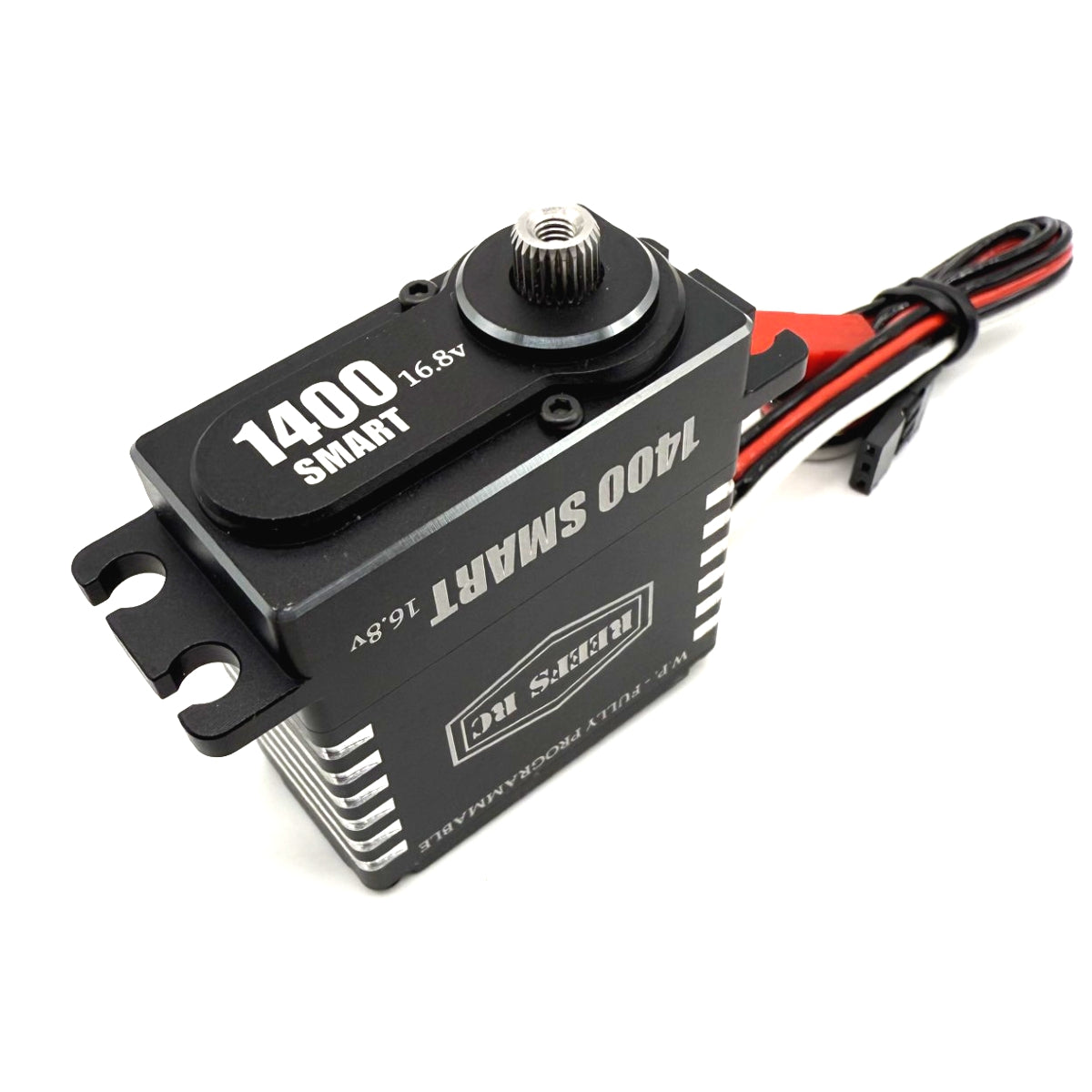

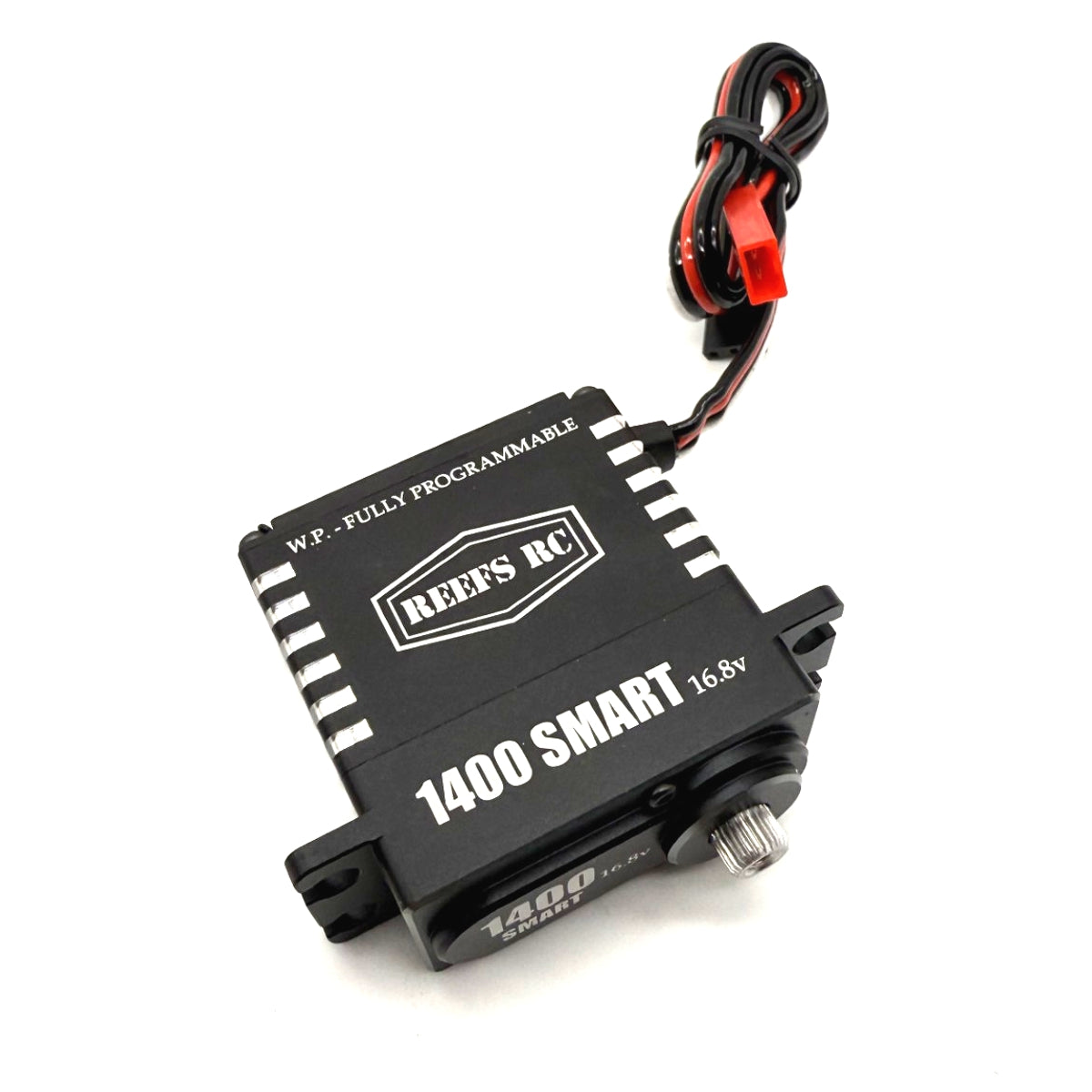

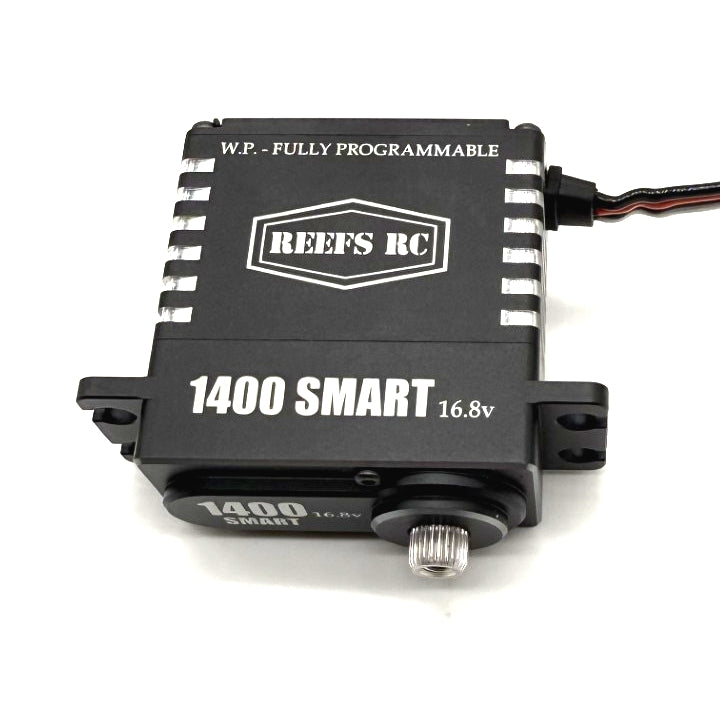

1400 Smart 16.8V Brushless Servo #REEFS246

• High Torque High Speed Brushless SERVO or WINCH
• Comes as SERVO out of the Box, can be changed to WINCH with the REEFS LINK V2 (Sold separately) and Software.
• BUILT IN PREPROGRAMMED WINCH CONTROLLER
• SUBMARINE WATERPROOF: 7 Point Seals w/ HEAT SINK
• Military Grade Construction
• Magnetic Angle Sensor
• Pulse Width Modulation Control
• 4 Pole Brushless Motor
• Voltage: 10V - 16.8V
• Internal: Steel Gears / All CNC Aluminum Casing
• Bearing Type: 4 Ball Bearings / Weight: 3.19oz / 90gm

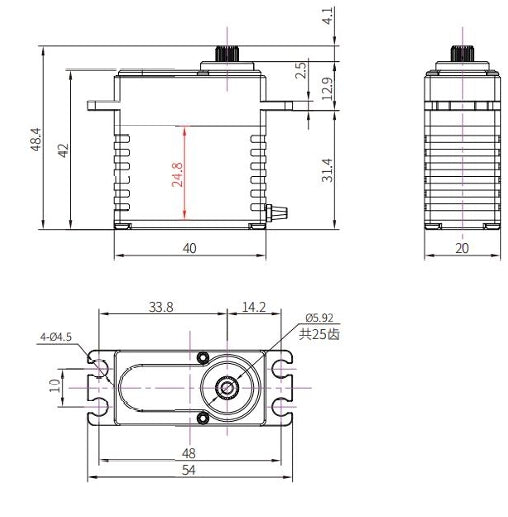

• Dimension: 1.57 x .79 x 1.5 (LWH) / 40x20x42mm

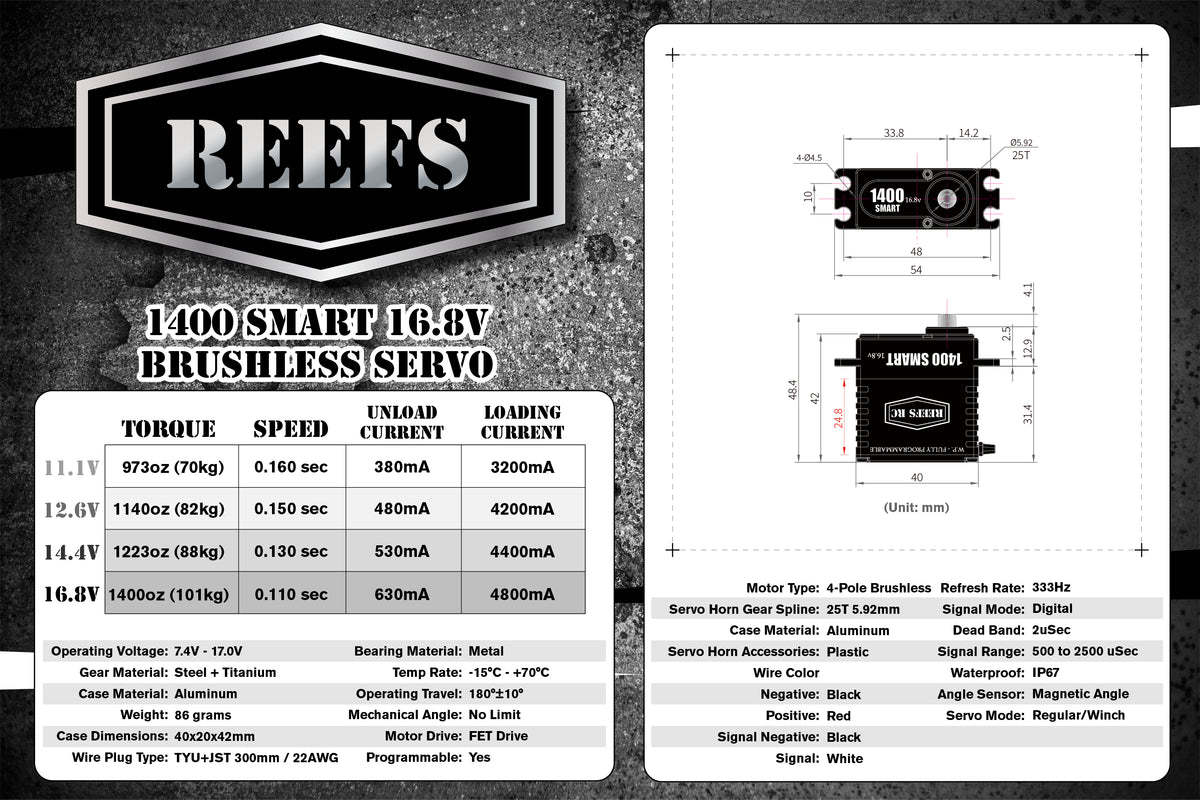

• Torque: 1140oz @ 12.6v/ 1223oz @14.4v / 1400oz @16.8v
• 82KG@12.6v / 88KG@14.4v / 101KG@16.8v
• Speed: .15sec @ 12.6v / .13sec @ 14.4v / .11sec @ 16.8v
• Spline: 25T
• Dead Band Width: 2¦Ìs
• Unload Current:
• 320mA@10.0V
   380mA@11.1V
   480mA@12.6V
   530mA@14.4V
   630mA@16.8V
• Load Current:
• 3200mA@10.0V
   3600mA@11.1V
   4200mA@12.6V
   4400mA@14.4V
   4800mA@16.8V

Item# REEFS246
