299:LP Low Profile Racing Servo
299:LP Low Profile Racing Servo
Regular price
$124.99
Regular price
Sale price
$124.99
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability

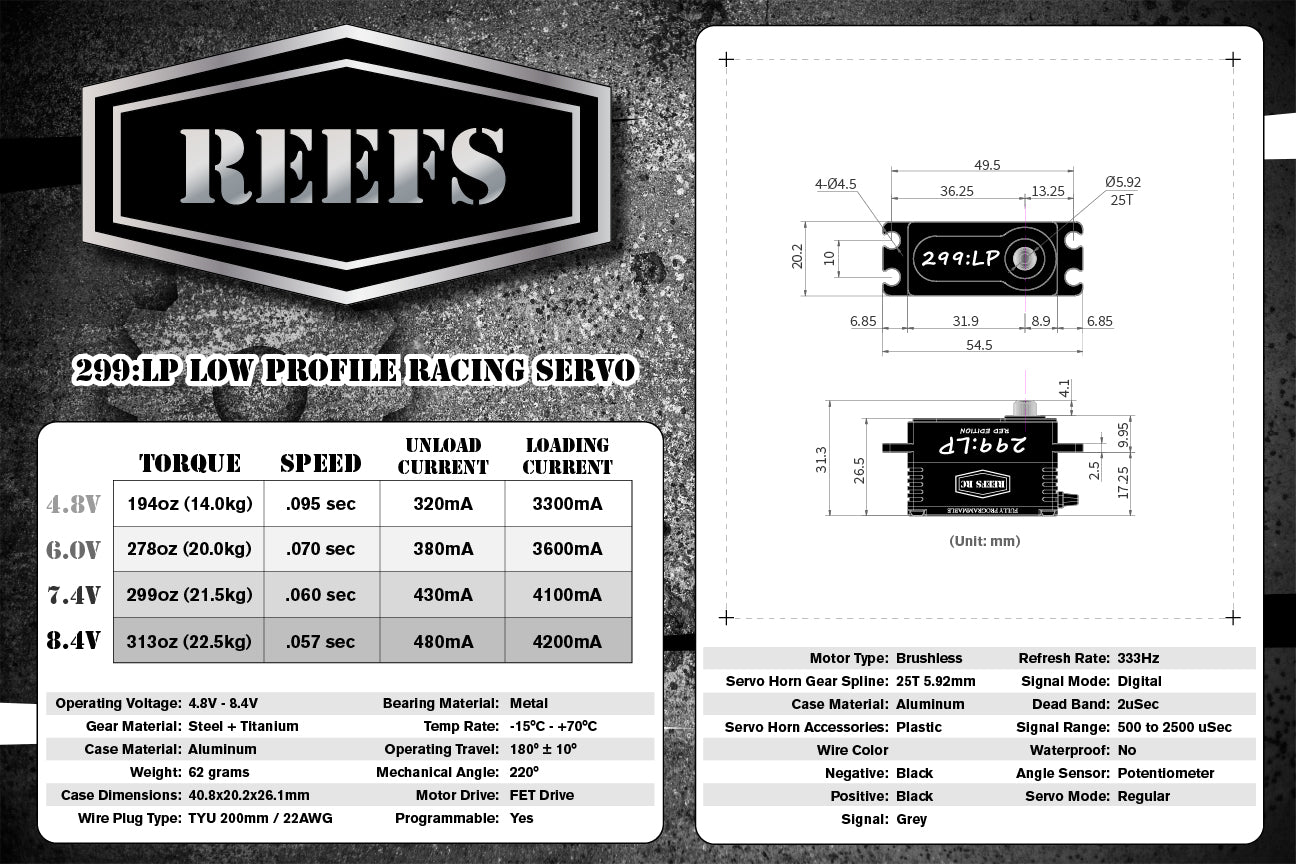

SPECIFICATIONS:
- High Torque High Speed Brushless Motor
- Water Resistant
- Magnetic Angle Sensor
- Pulse Width Modulation Control
- Fully Programmable w/ REEFS Software (REEFS LINK required for Programming)
- Voltage: 4.8V - 8.4V
- Internal: Steel Gears / All CNC Aluminum Casing
- Bearing Type: 2 Ball Bearings / Weight: 2.0oz / 57.2g

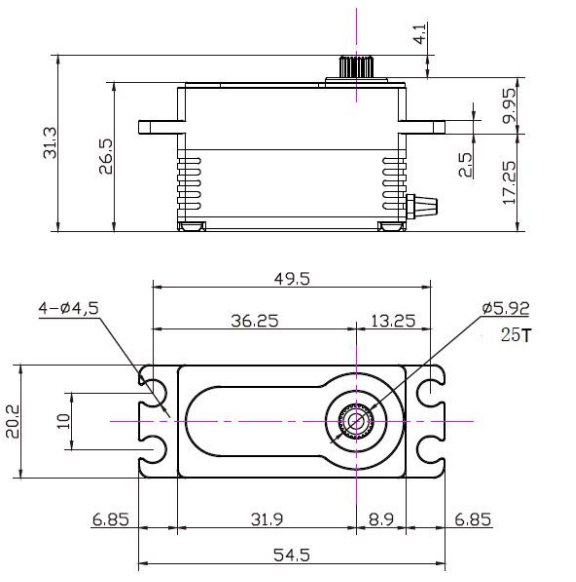

- Dimensions: 1.6 x .79 x 1.0 (LWH) 40.8x20.2x26.5mm
- Torque: 278oz @ 6v/ 299oz @7.4v/ 313oz @8.4v
- Speed: .07sec @6v/.06sec @7.4v/.057sec @8.4v
- Spline: 25T /
- Dead Band Width: 2¦Ìs
For programming, the USB Link is required.
Item# REEFS24
