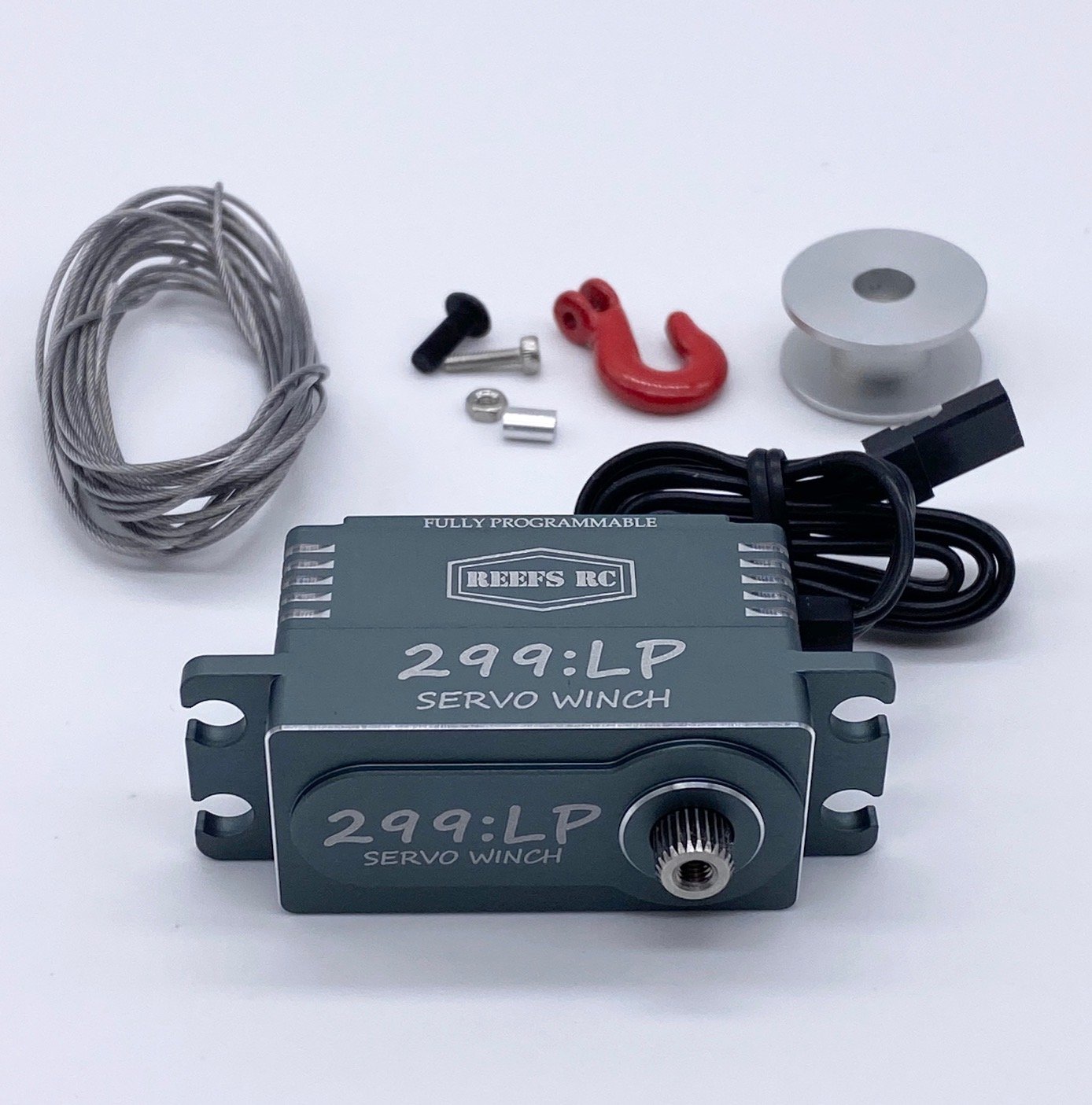

299:LP Servo Winch #REEFS59

• SMALL FOOTPRINT! Ideal for Comp & Scale builds.
• High Torque Brushless Servo Winch
• SUBMARINE WATERPROOF: Voltage 4.8-8.4

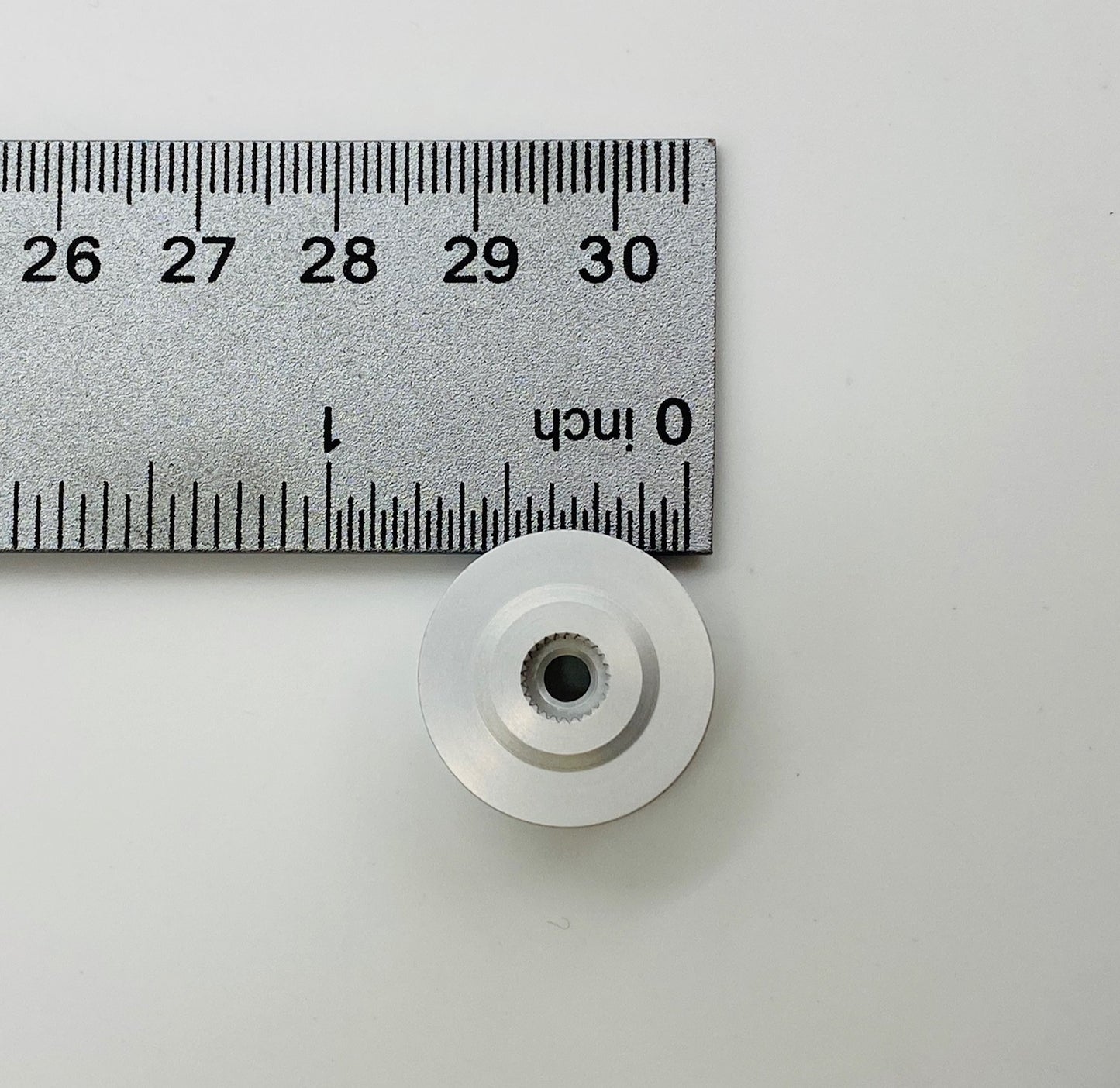

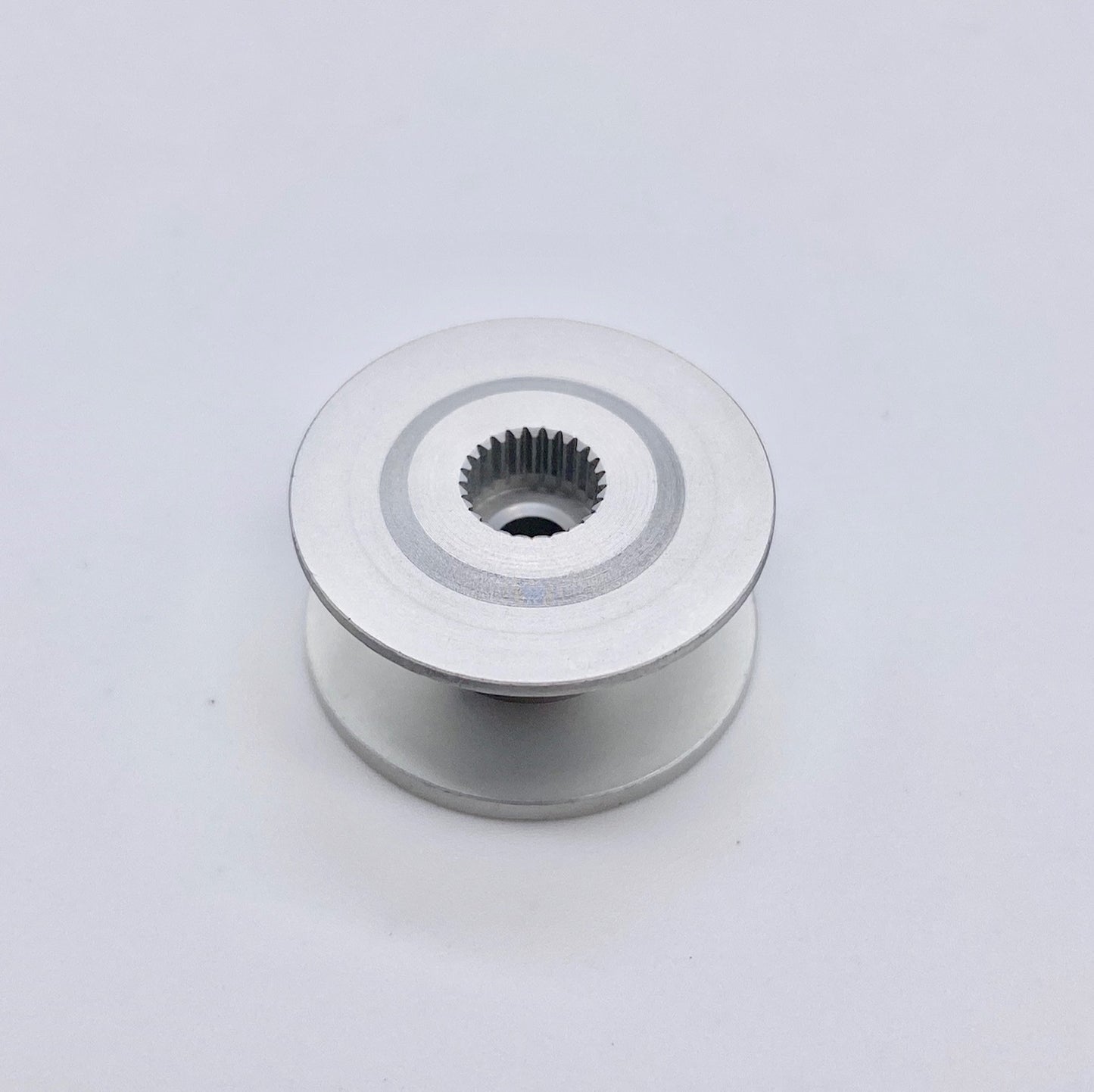

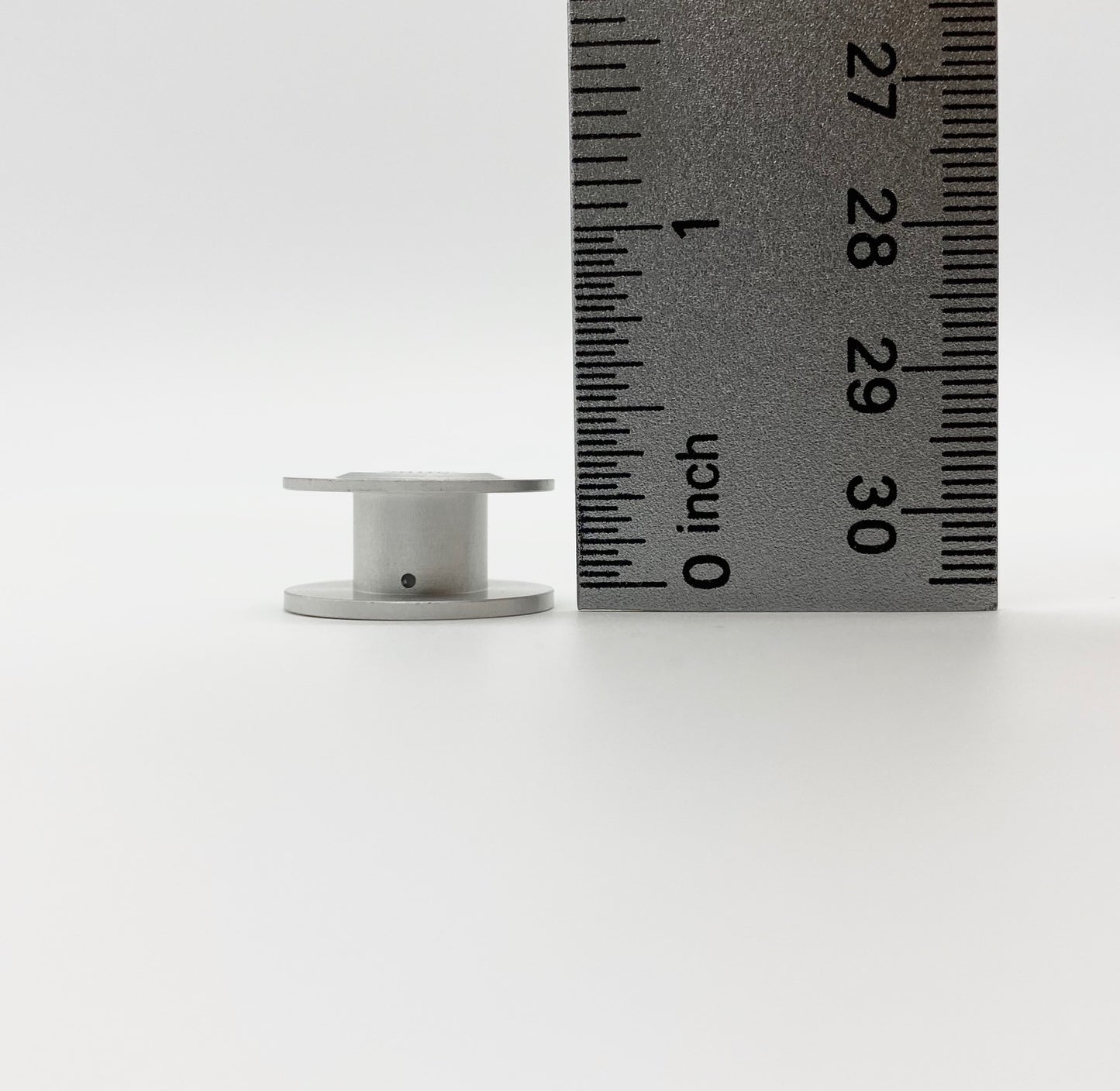

• 7075 LOWPRO CNC MACHINED SPOOL w/ Clear Finish

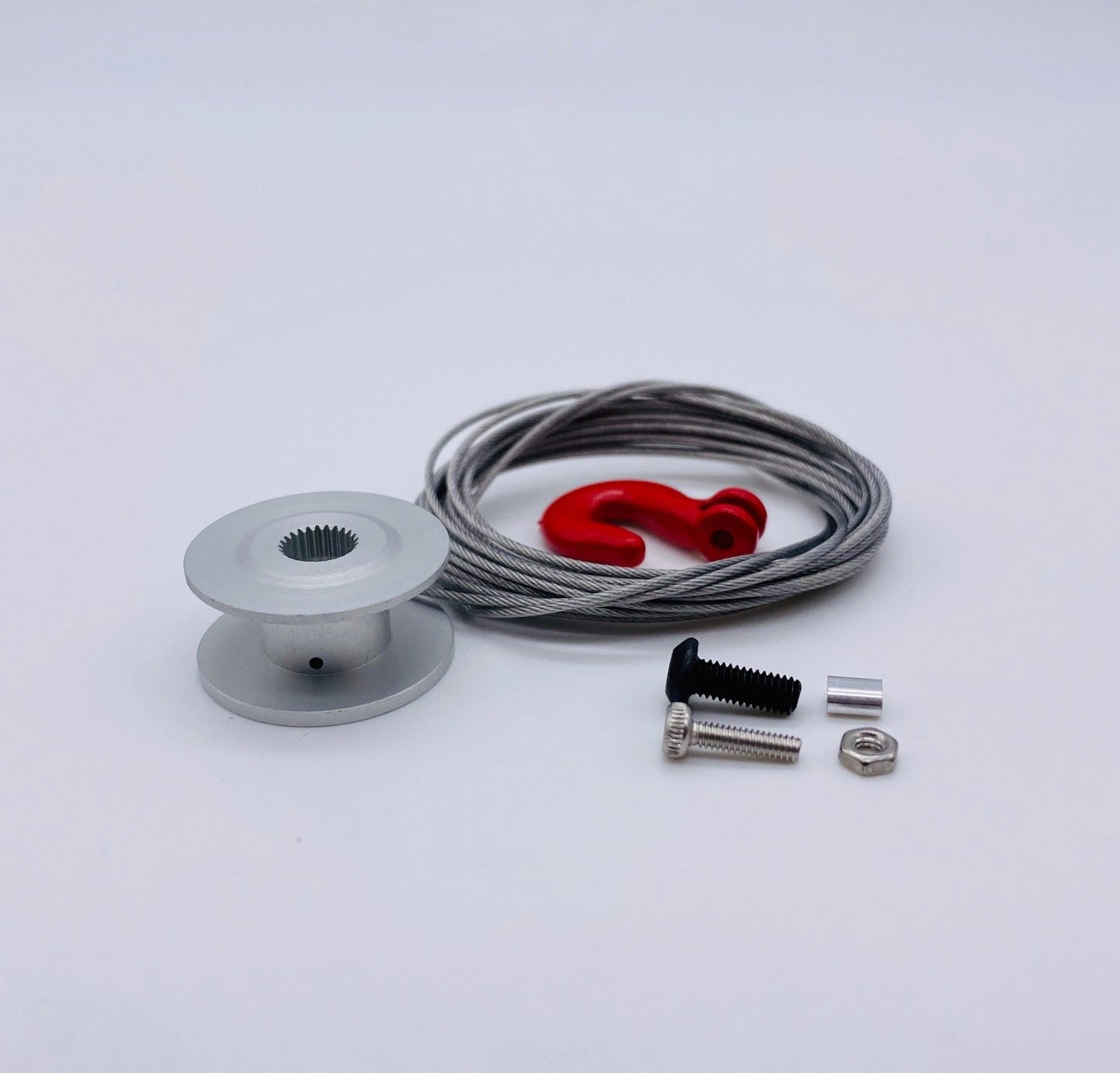

• 5FT Silicone Coated Steel Braided Line,
• w/ Scale Recovery Hook
• Internal: Steel Gears / All CNC Aluminum Casing
• Anodized Color: REEFS GRAY
• Bearing Type: 2BB / Weight: 2.0oz

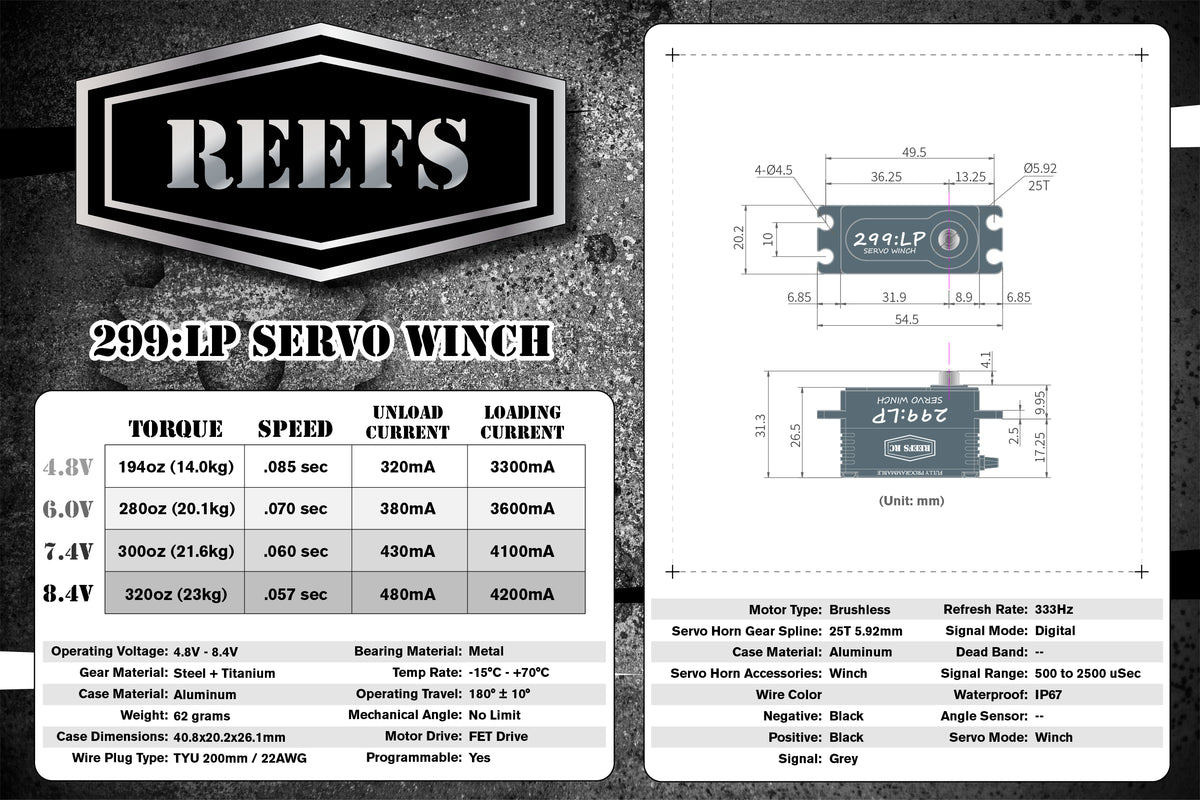

• Dimension: 1.60 x .79 x 1.00 (LWH)
• Torque: 280oz (20.1kg)@6.0v / 300oz (21.6kg)@7.4v / 320oz (23kg)@8.4v
• Speed: .07sec @6.0v /.06sec @7.4v /.057sec @8.4v
• Spline: 25T / Dead Band Width: 2¦Ìs
• BEC Not Required

UnloadCurrent

320mA@4.8V
 380mA@6.0V
 430mA@7.4V
 480mA@8.4V

LoadingCurrent

3300mA@4.8V
 3600mA@6.0V
 4100mA@7.4V
 4200mA@8.4V

Note: Does not fit in the Gen8 mount.

Item# REEFS59
