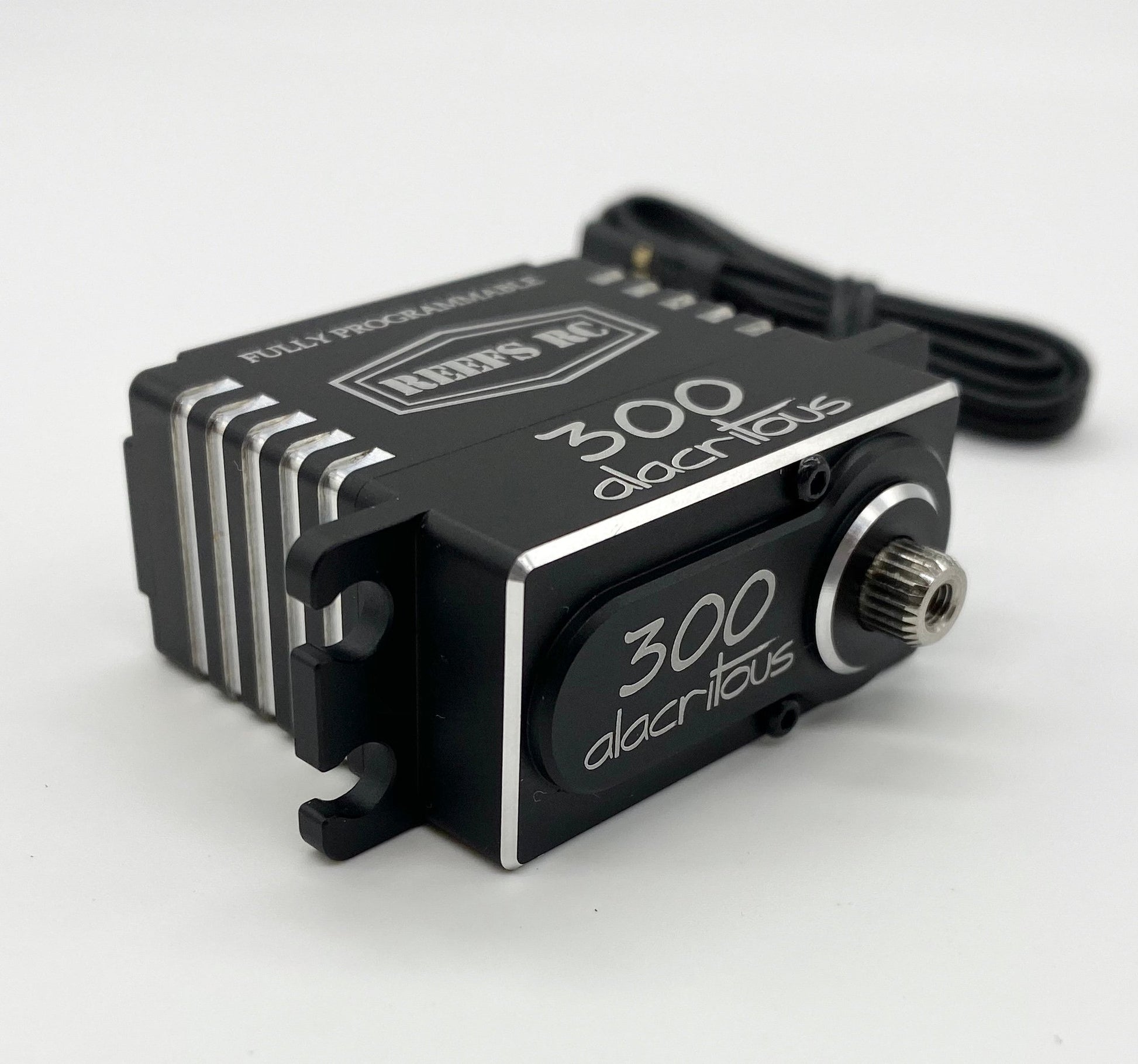

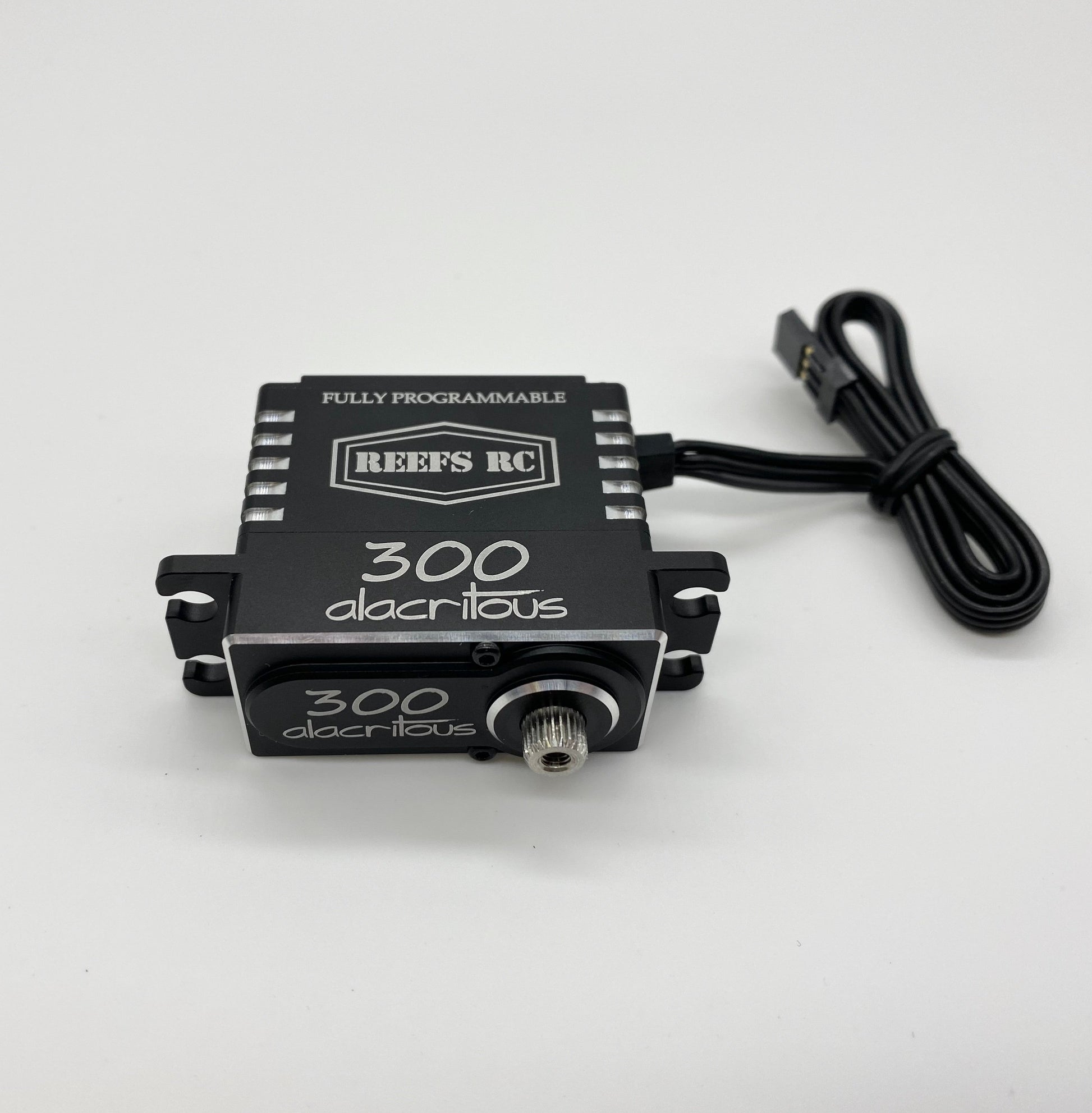

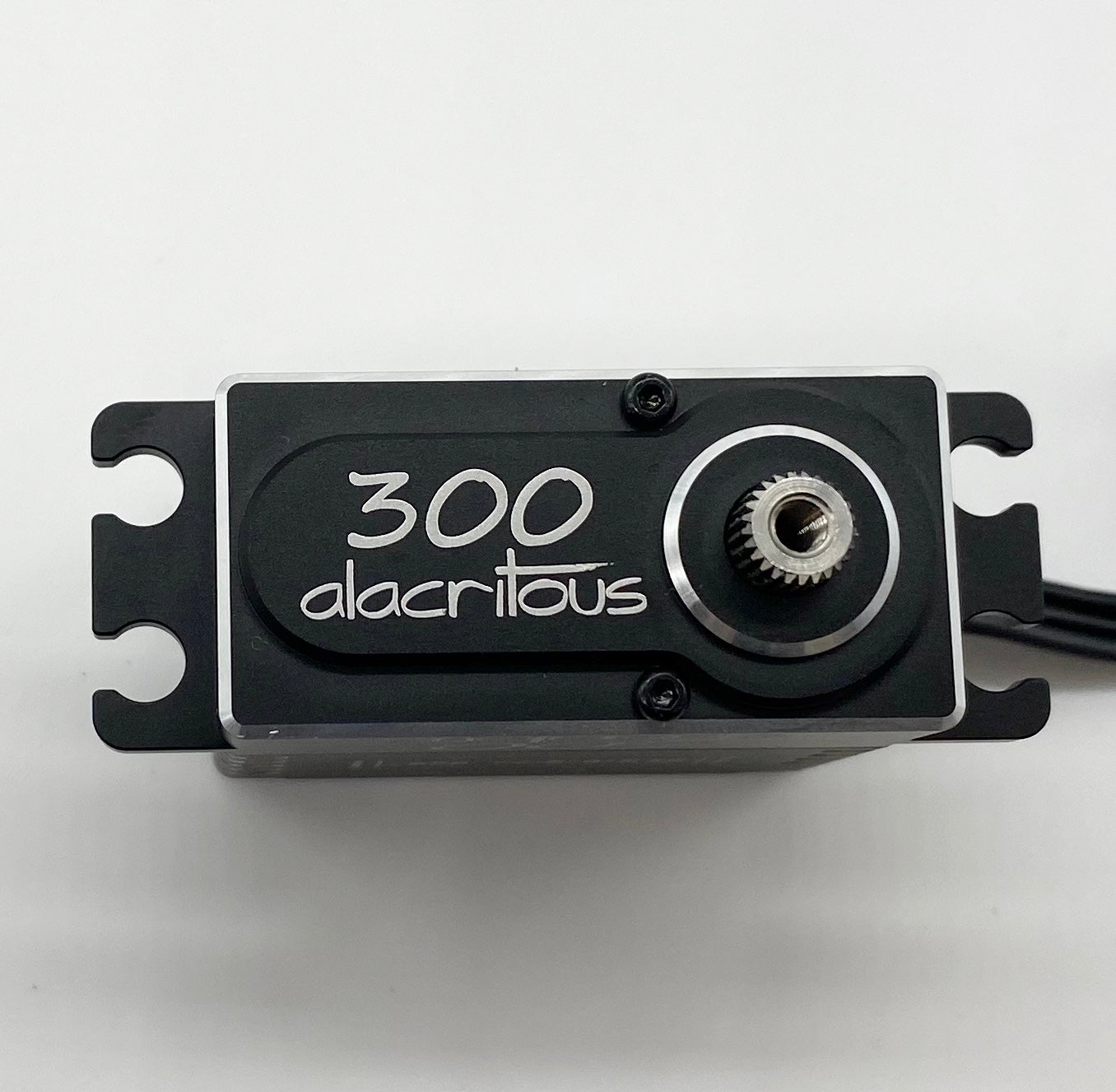

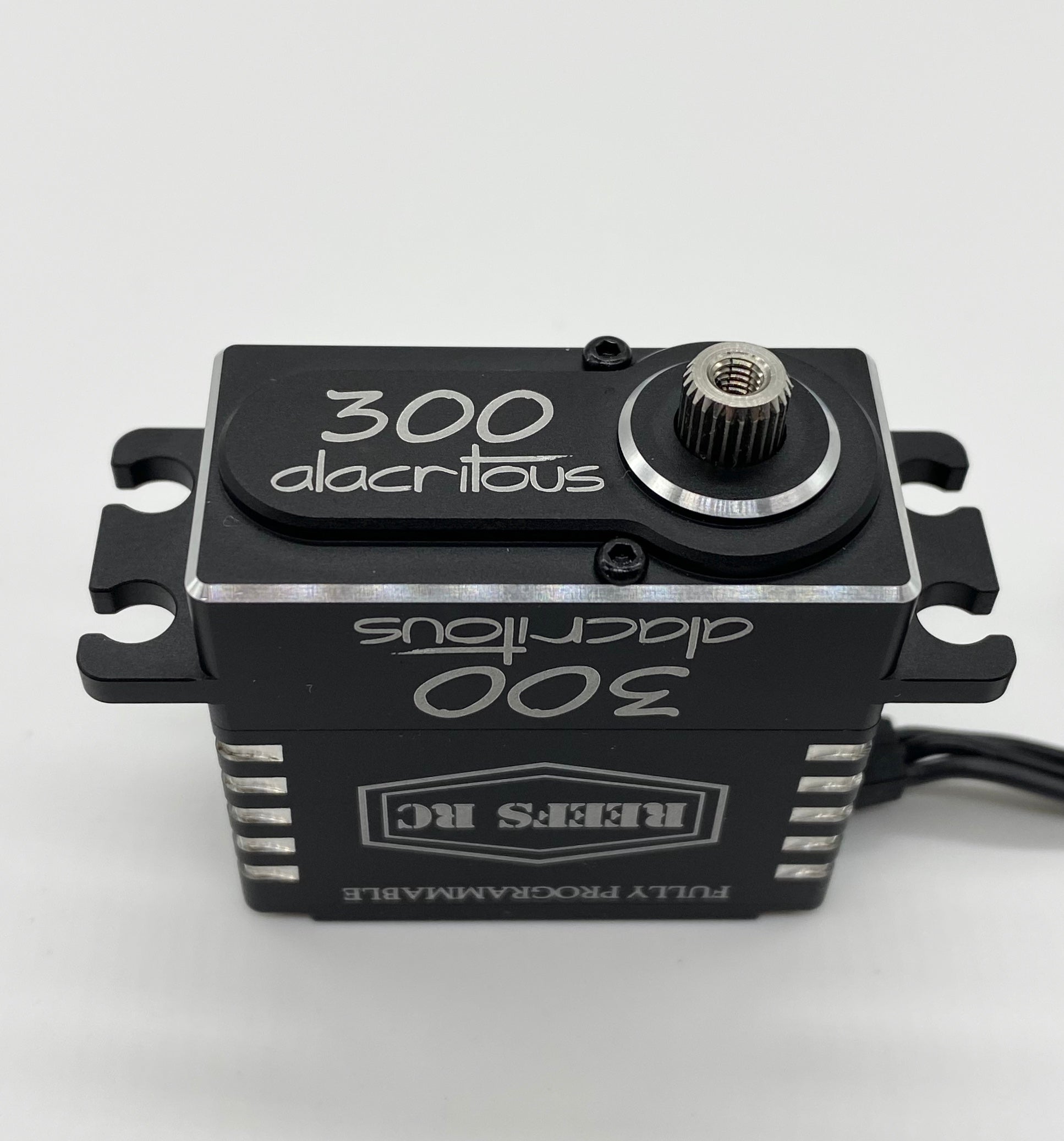

300 Alacritous Brushless Servo #REEFS74

• High Speed Brushless Servo
• Water Resistant: 7 Point Seals
• Fully Programmable (REEFS LINK required)
• Voltage: 4.8V - 8.4V
• Internal: Steel Gears / All CNC Aluminum Casing
• Bearing Type: 3 Ball Bearings
• Weight: 2.85oz
• Dimensions: 1.57 x .78 x 1.46 (LWH)
• Torque: 210oz (15.1kg)@ 6v/ 270oz (19.4kg)@7.4v/ 310oz (22.3kg)@8.4v
• Speed: .07sec @6v/.06sec @7.4v/.05sec @8.4v
• Spline: 25T
• Dead Band Width: 2¦Ìs

UnloadCurrent

280mA@4.8V
 310mA@6.0V
 360mA@7.4V
 400mA@8.4V

LoadingCurrent

3600mA@4.8V
 4000mA@6.0V
 4300mA@7.4V
 4500mA@8.4V

For programming, the USB Link is required.

Item# REEFS74
