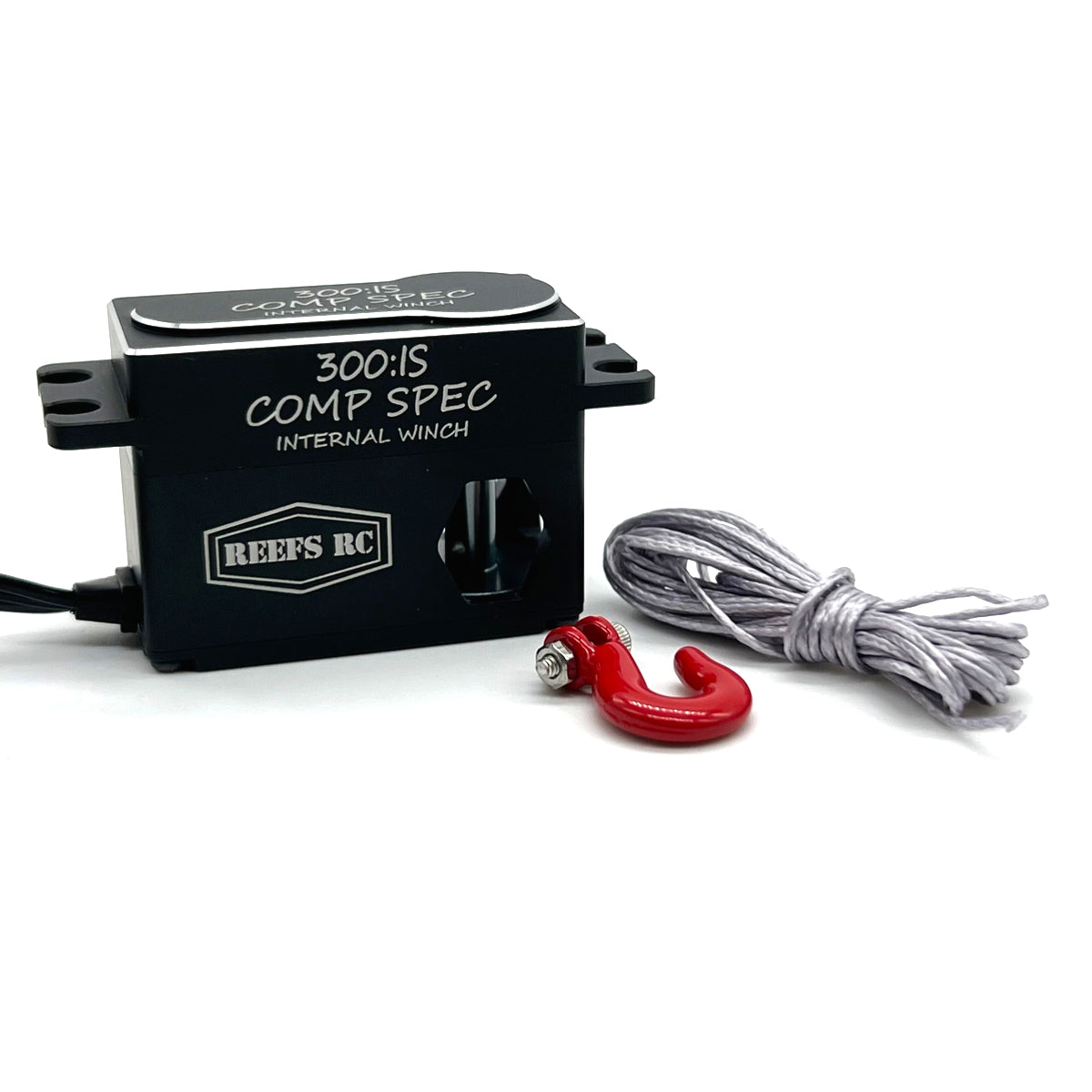

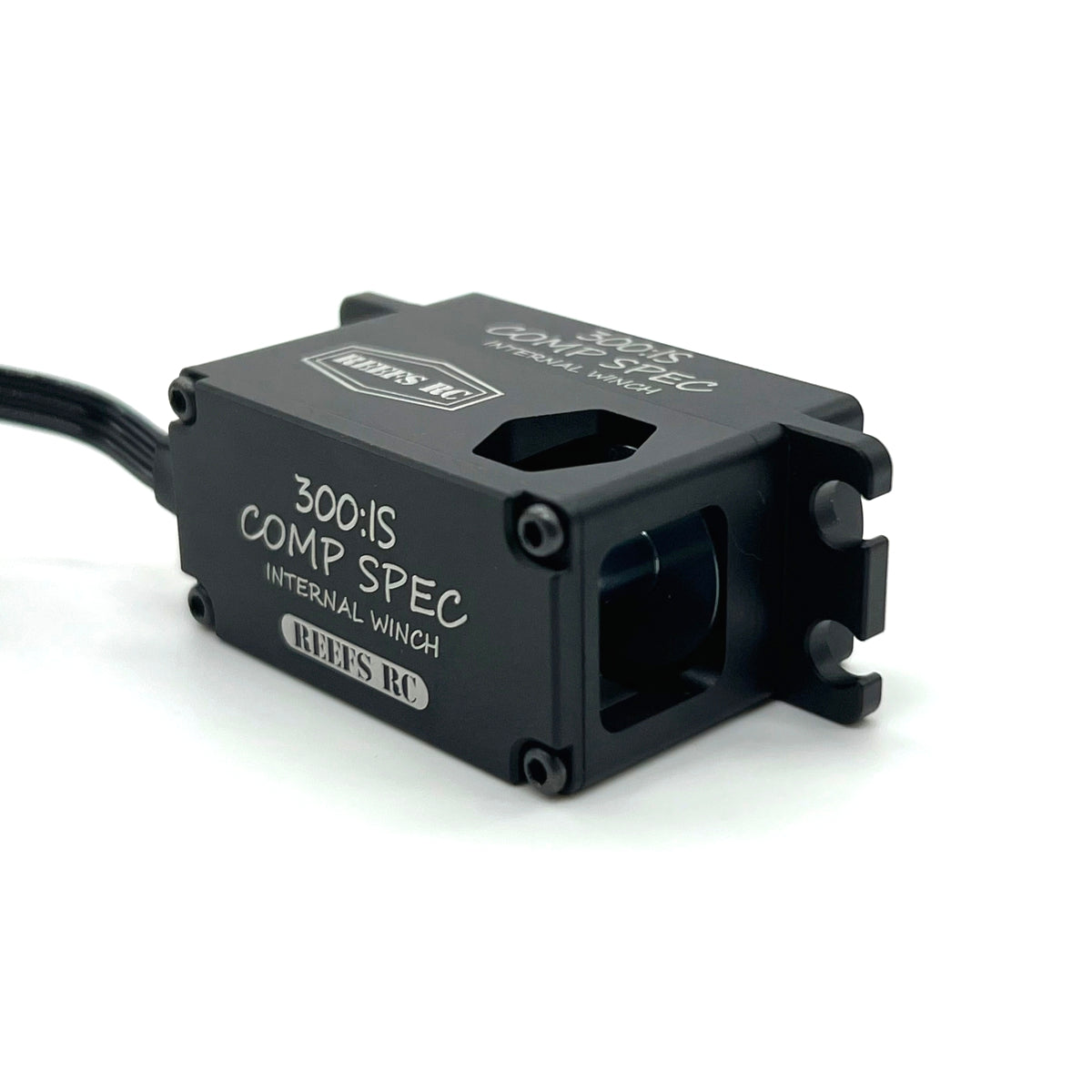

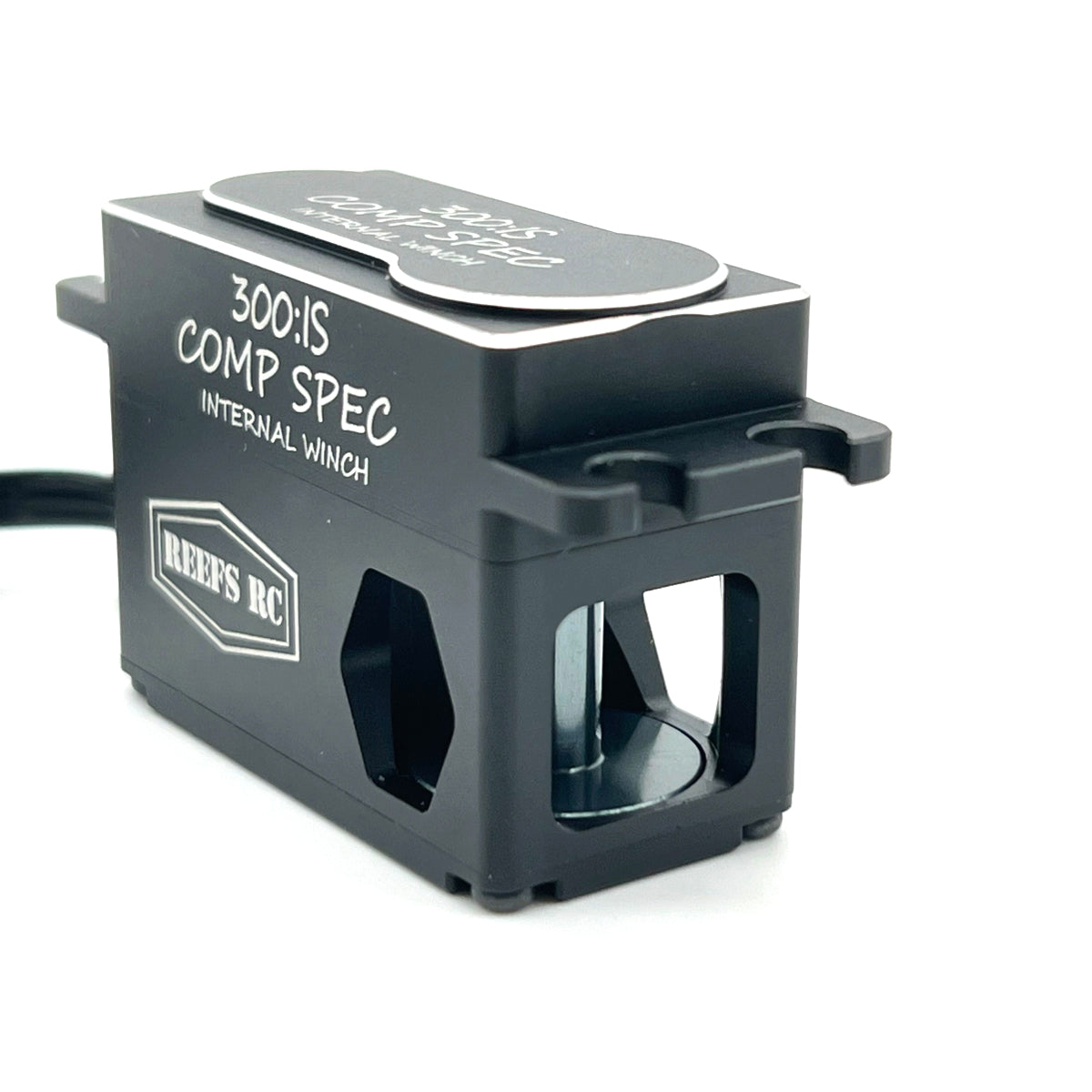

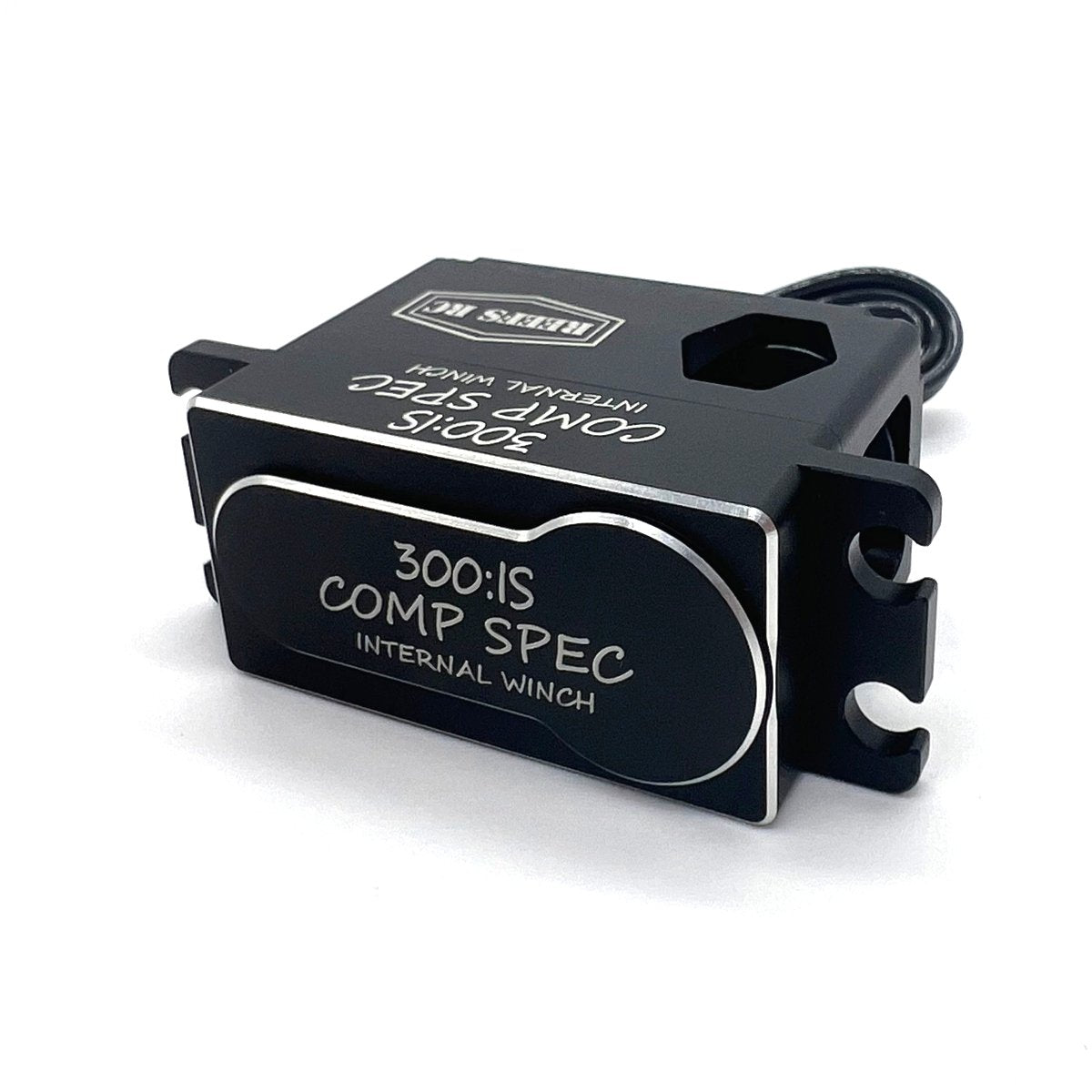

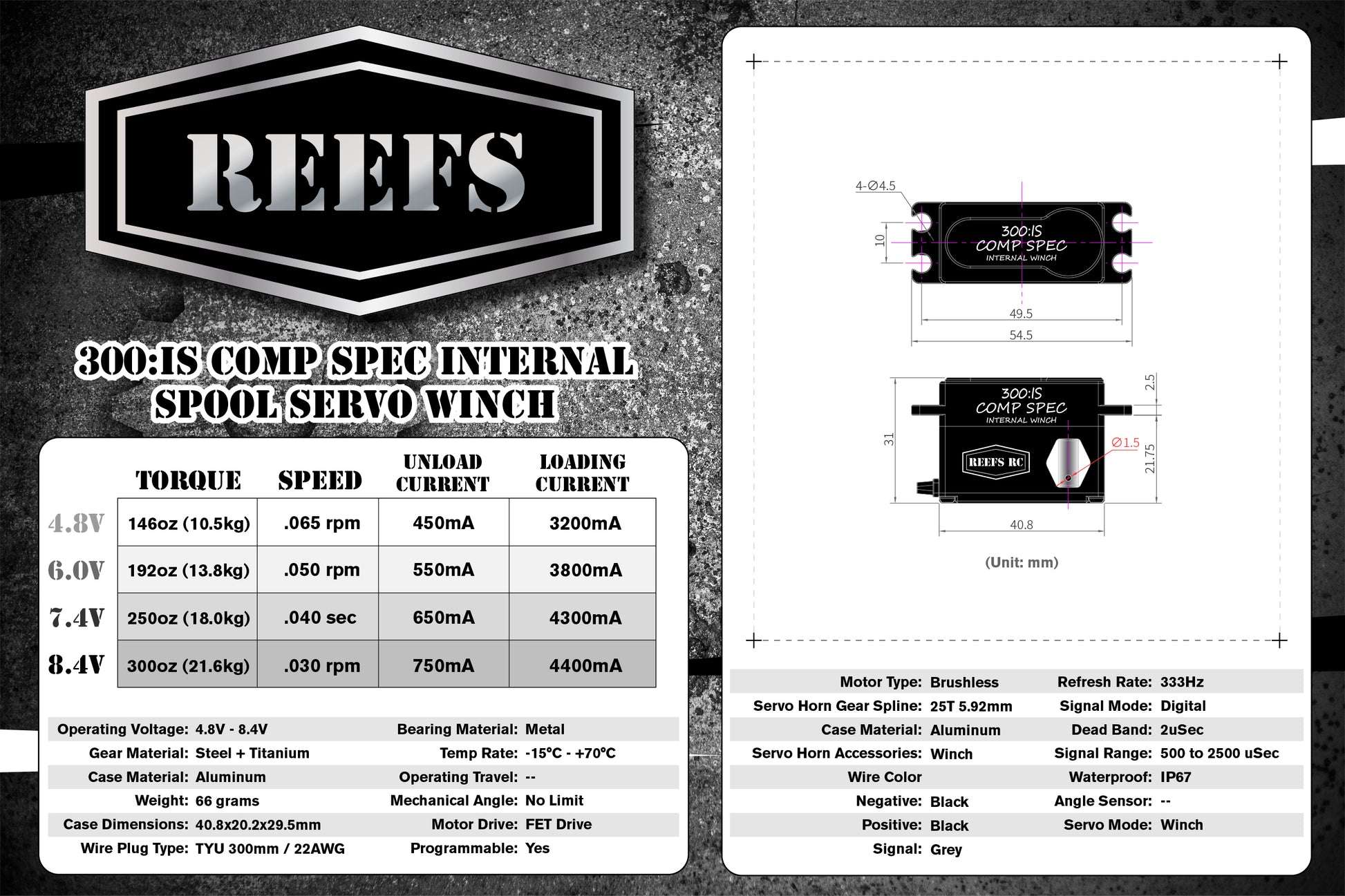

300 IS Comp Spec Internal Spool Servo Winch

SPECIFICATIONS:

• High Speed Brushless Servo Winch
• BUILT IN PREPROGRAMMED WINCH CONTROLLER
• Fully Programmable w/ REEFS Software
• REEFS LINK required for Programming (OPTIONAL)
• SUBMARINE WATERPROOF: 6 Point Seals
• Internal Machined Spool w/ Coated Finish
• Approx 6ft .8mm Synthetic Line w/ Scale Recovery Hook
• Voltage: 4.8V - 8.4V
• CNC Aluminum Casing
• Internal: Steel Gears
• Bearing Type: 3 Ball Bearings / Weight: 2.3oz

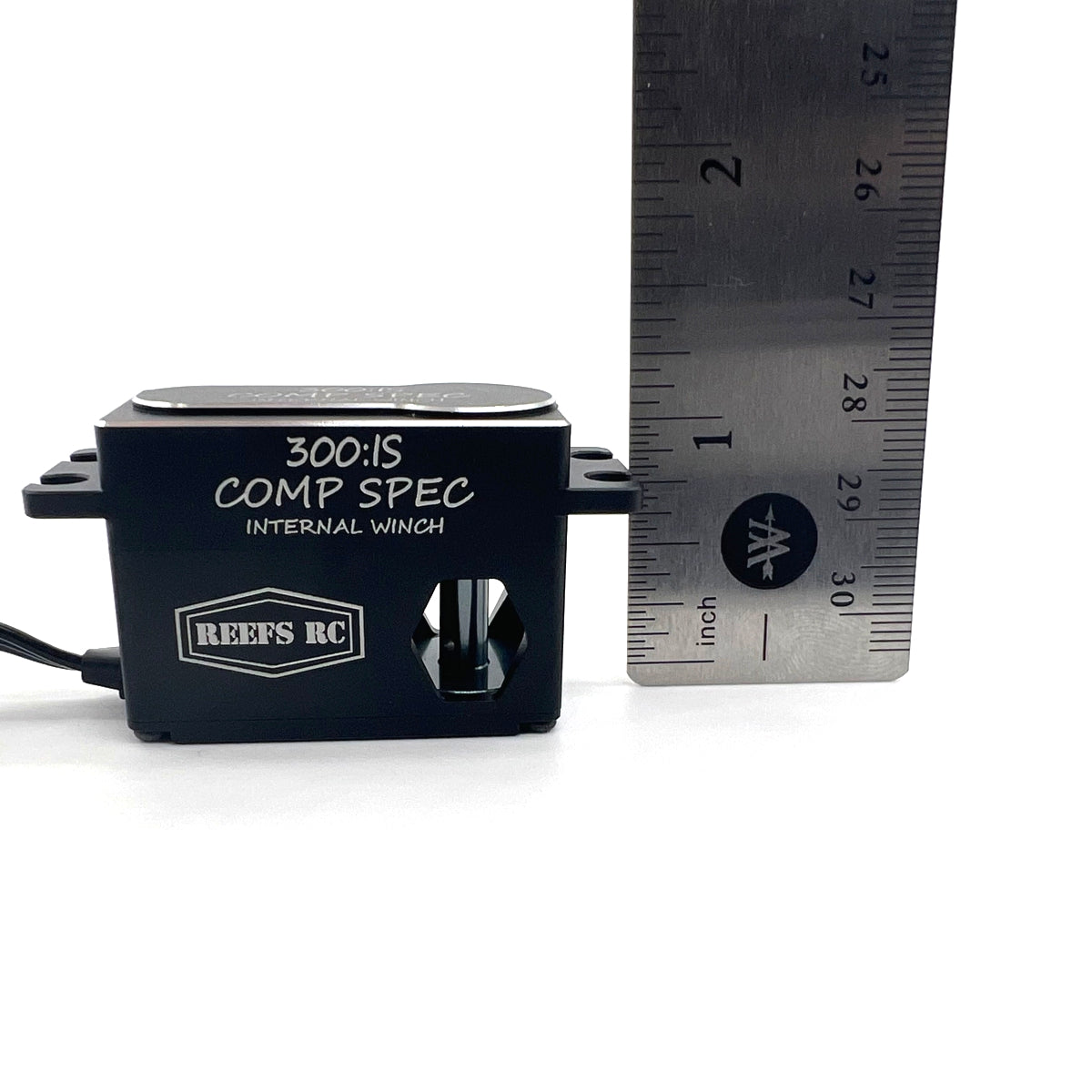

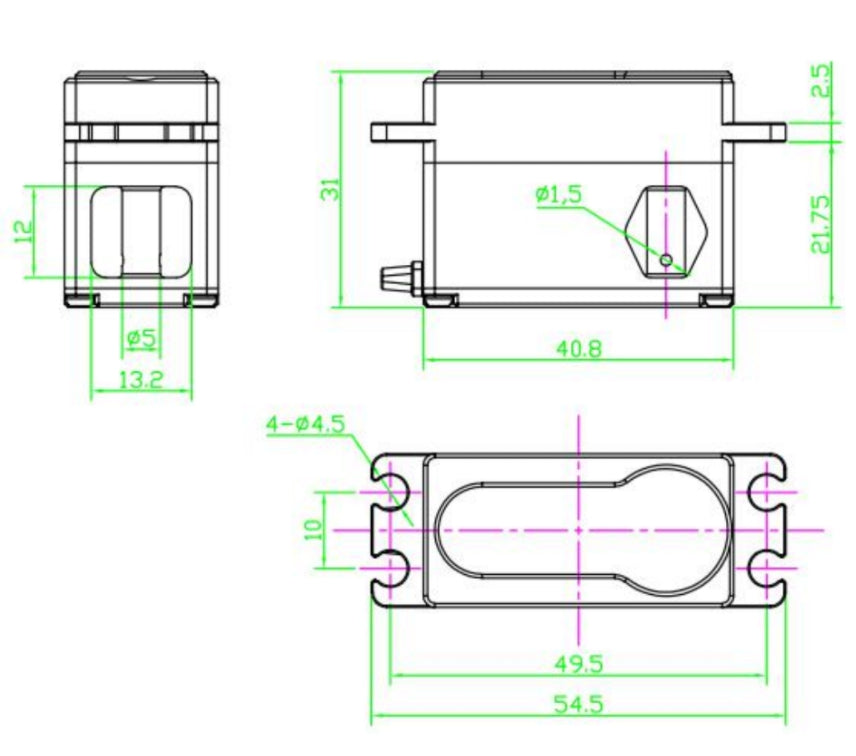

• (LWH) : 1.6 x .79 x 1.16 / 40.8x20.2x29.5mm
• Torque: 192oz @ 6v/ 250oz @7.4v/ 300oz @8.4v
• Speed: .05sec @6v/.04sec @7.4v/.03sec @8.4v
• Dead Band Width: 2¦Ìs
• BEC Not Req. (Recommended for max performance)

For programming, the USB Link is required.

Item# REEFS123
