400:SC V2 Racing Servo #REEFS12

• High Torque High Speed Brushless Servo
• Water Resistant
• Magnetic Angle Sensor
• Pulse Width Modulation Control
• Fully Programmable (REEFS LINK required)
• Voltage: 4.8V - 8.4V
• Internal: Steel Gears / All CNC Aluminum Casing
• Bearing Type: 3 Ball Bearings / Weight: 2.85oz

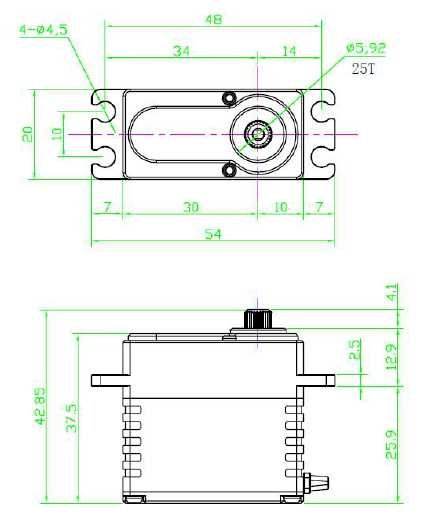

• Dimensions: 1.57 x .78 x 1.5 (LWH)

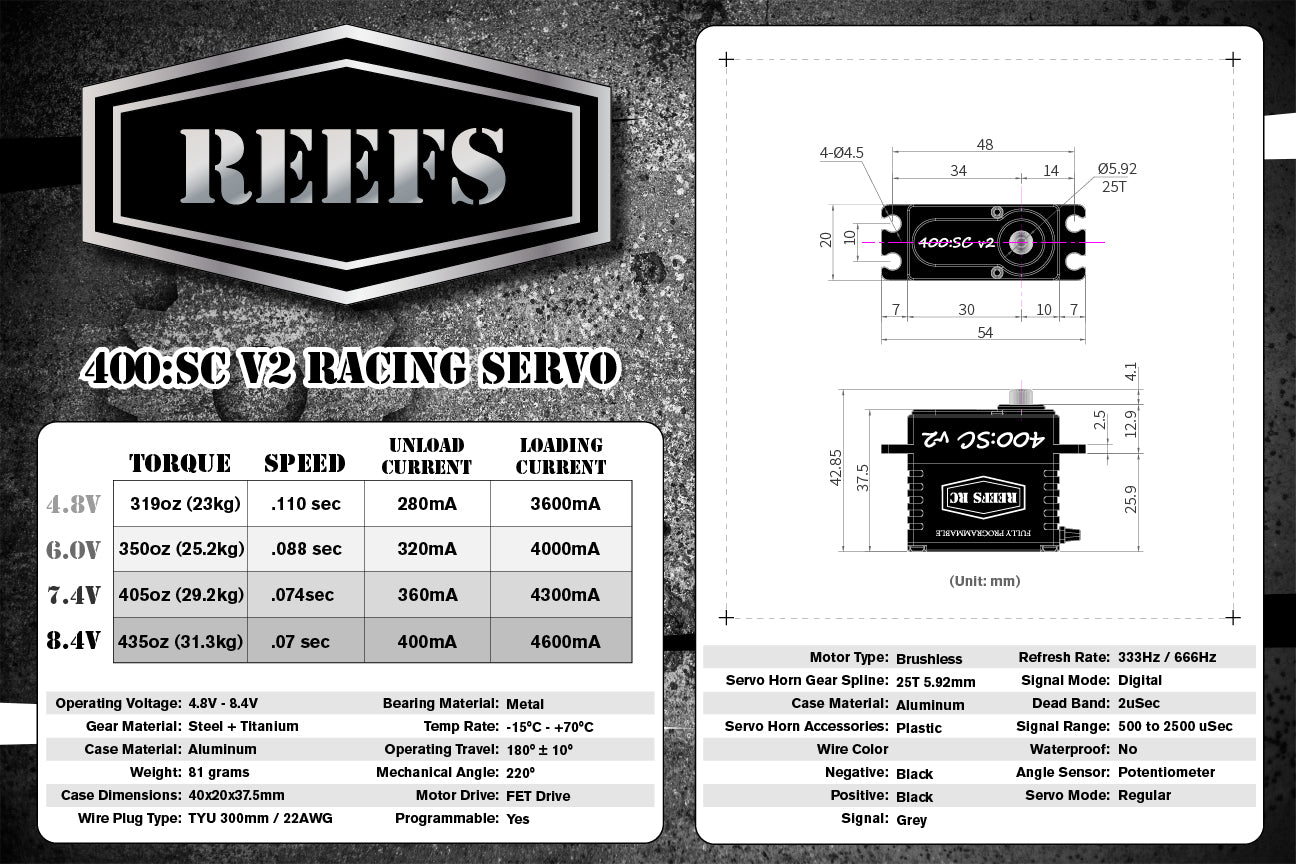

• Torque: 350oz (25.2kg)@ 6v/ 405oz (29.2kg)@7.4v/ 435oz (31.3kg)@8.4v
• Speed: .088sec @6v/.074sec @7.4v/.07sec @8.4v
• Spline: 25T
• Dead Band Width: 2¦Ìs
• BEC Not required (Recommended for best performance)

UnloadCurrent

280mA@4.8V
 320mA@6.0V
 360mA@7.4V
 400mA@8.4V

LoadingCurrent

3600mA@4.8V
 4000mA@6.0V
 4300mA@7.4V
 4600mA@8.4V

For programming, the USB Link is required.

Item# REEFS12
