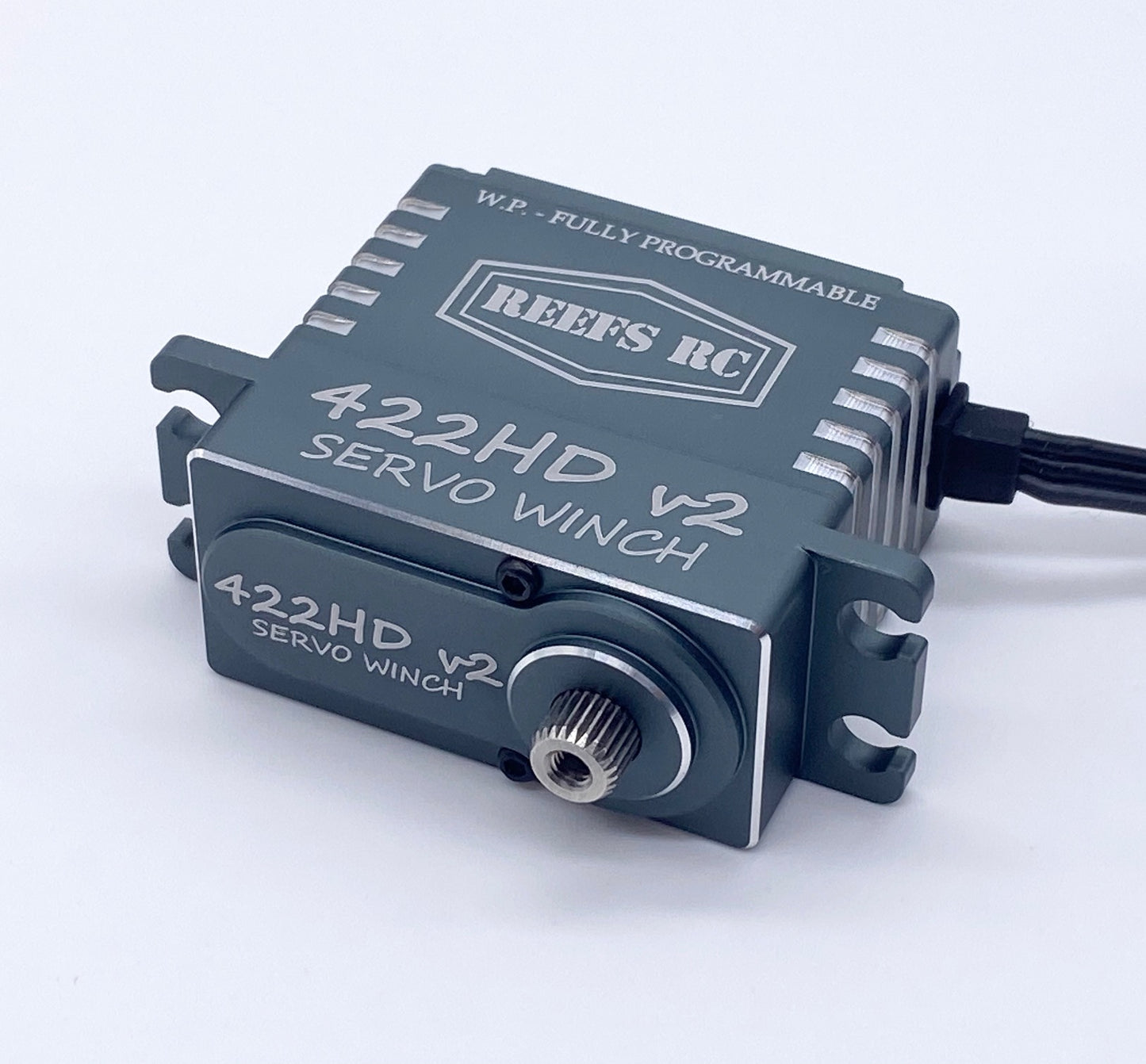

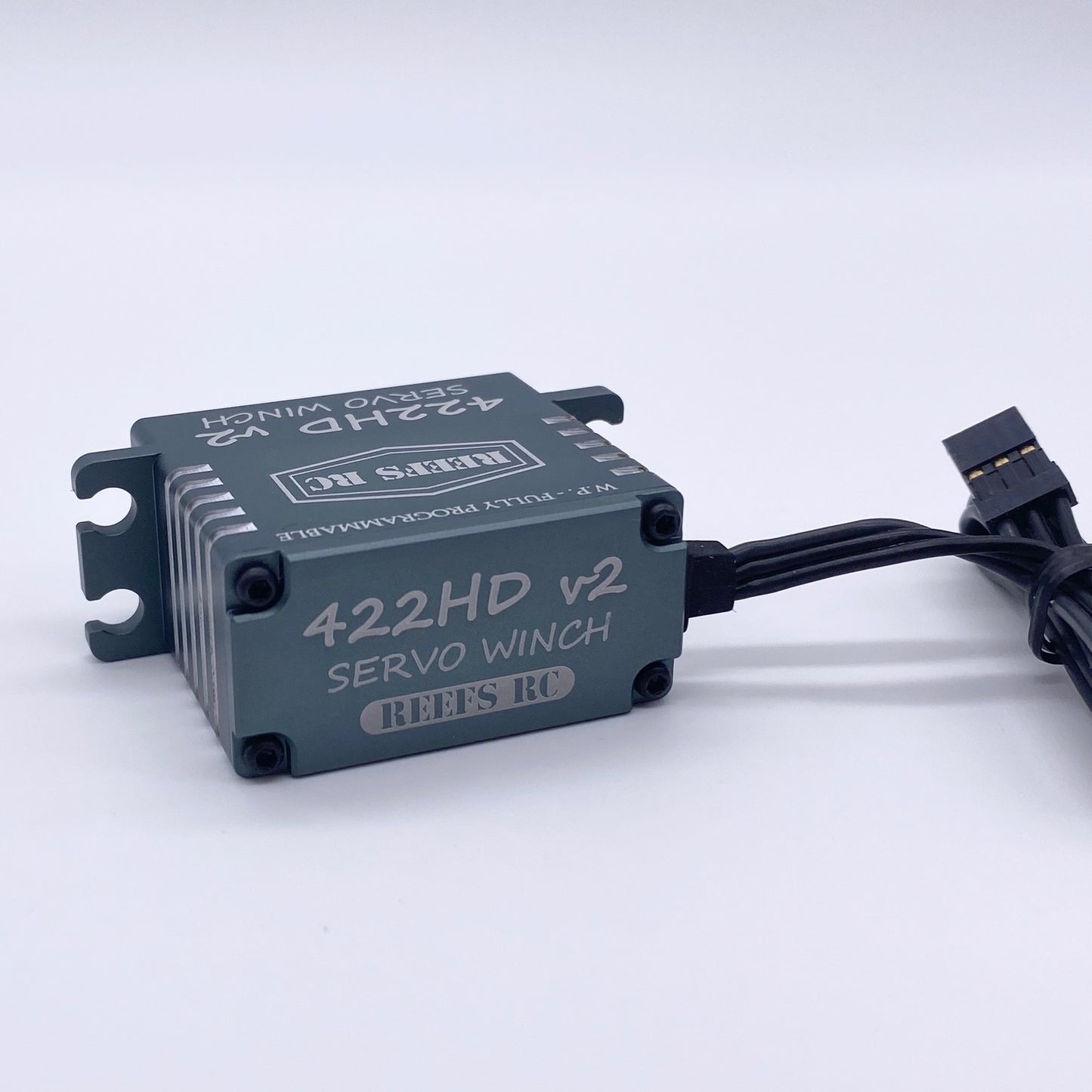

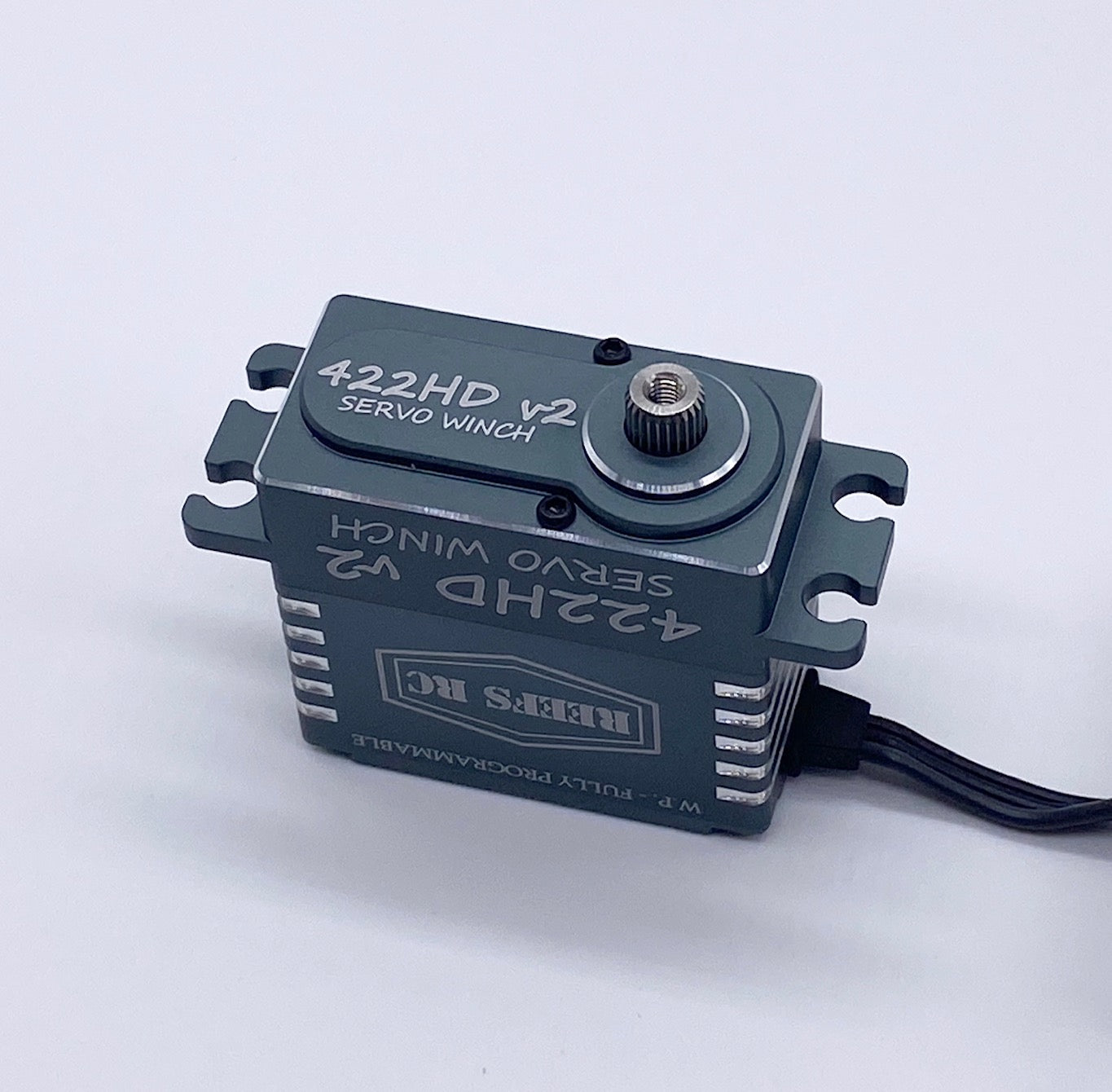

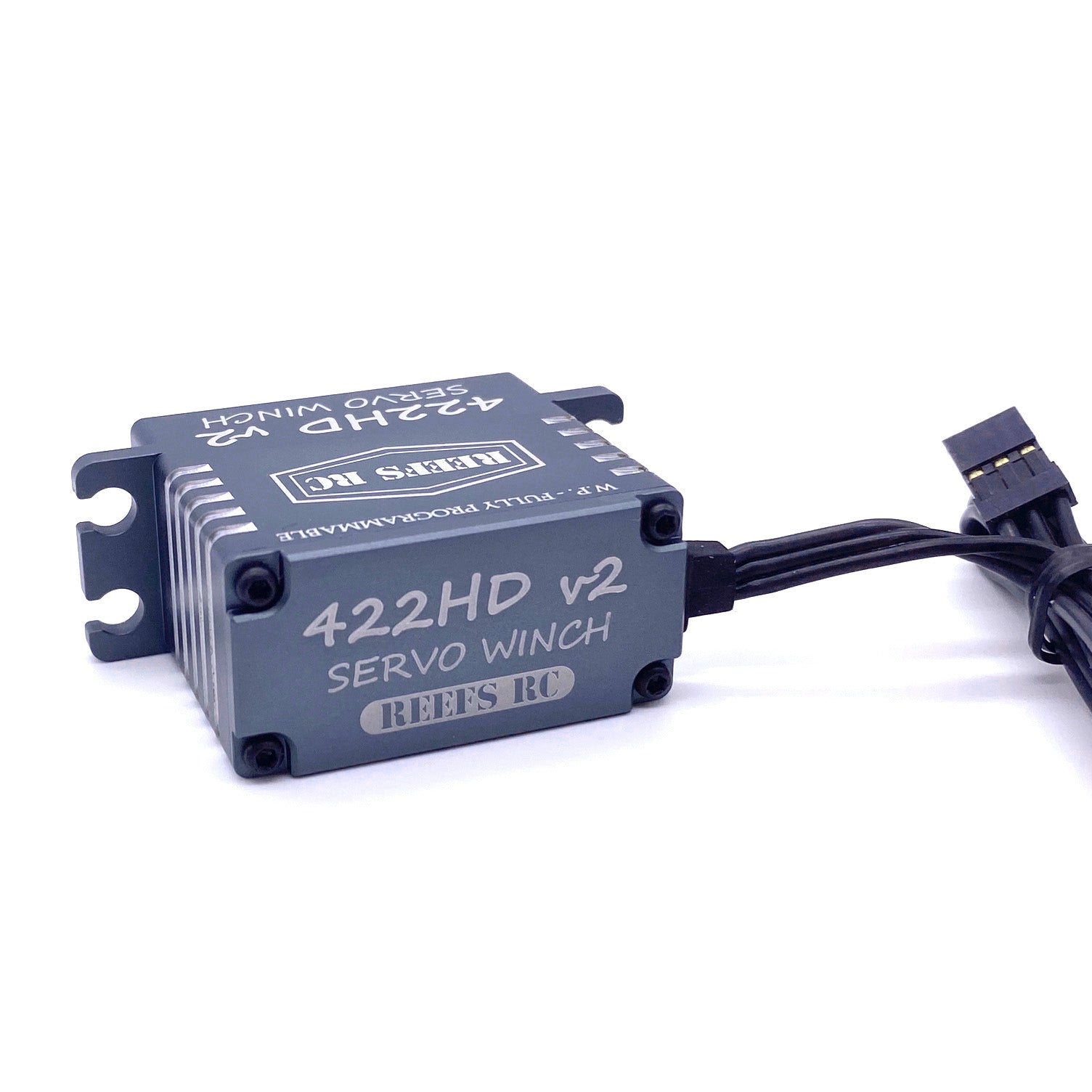

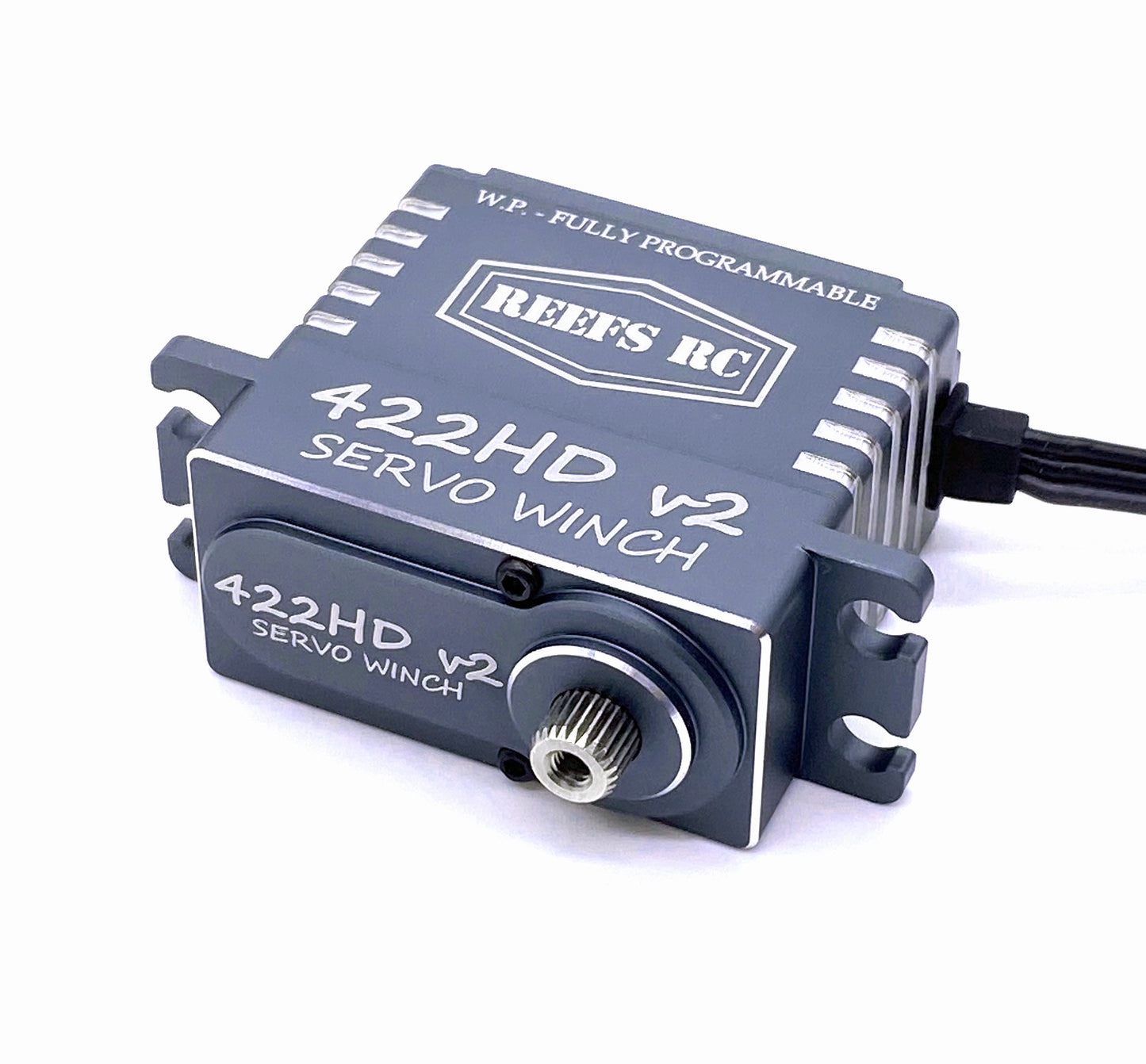

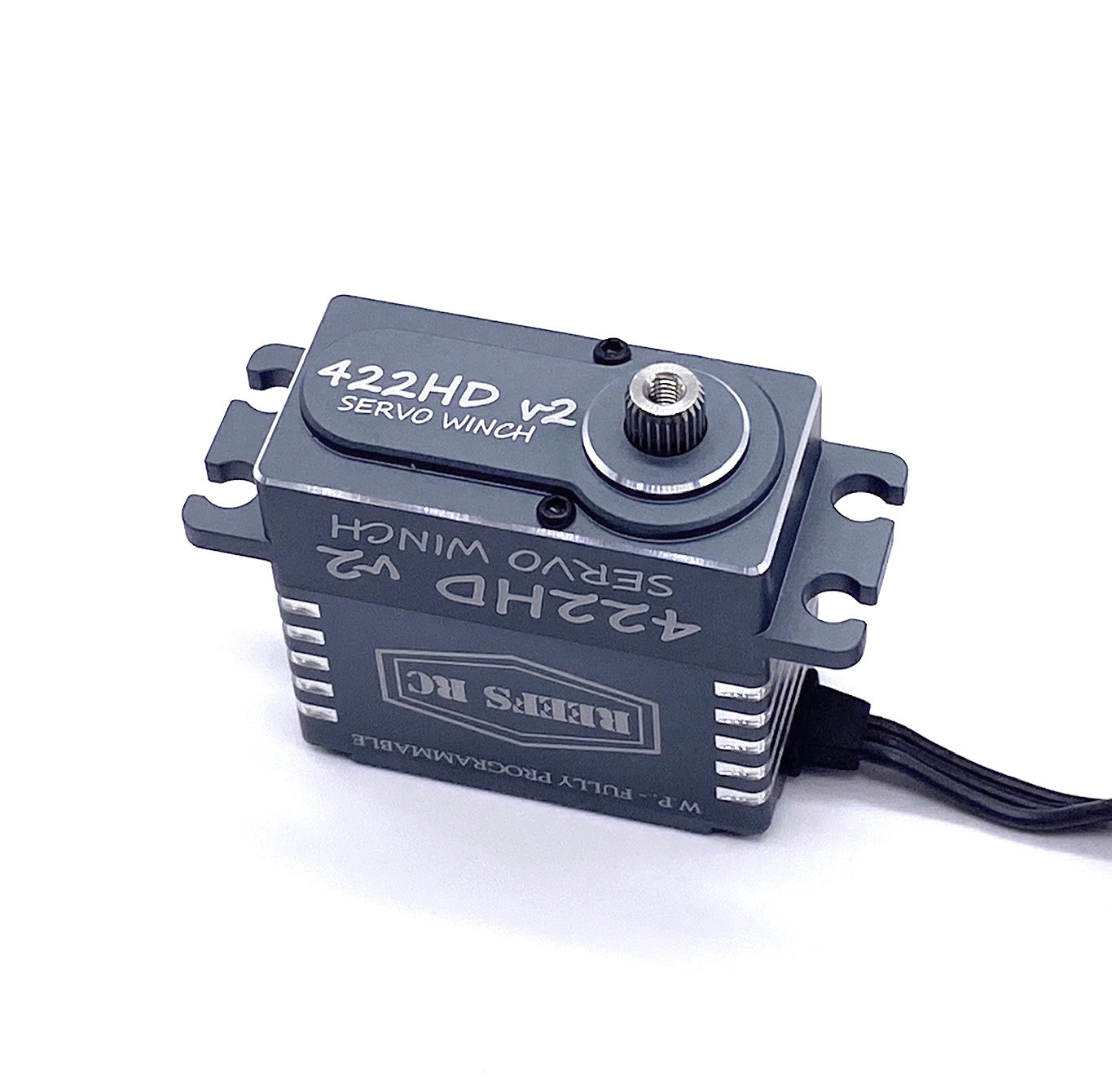

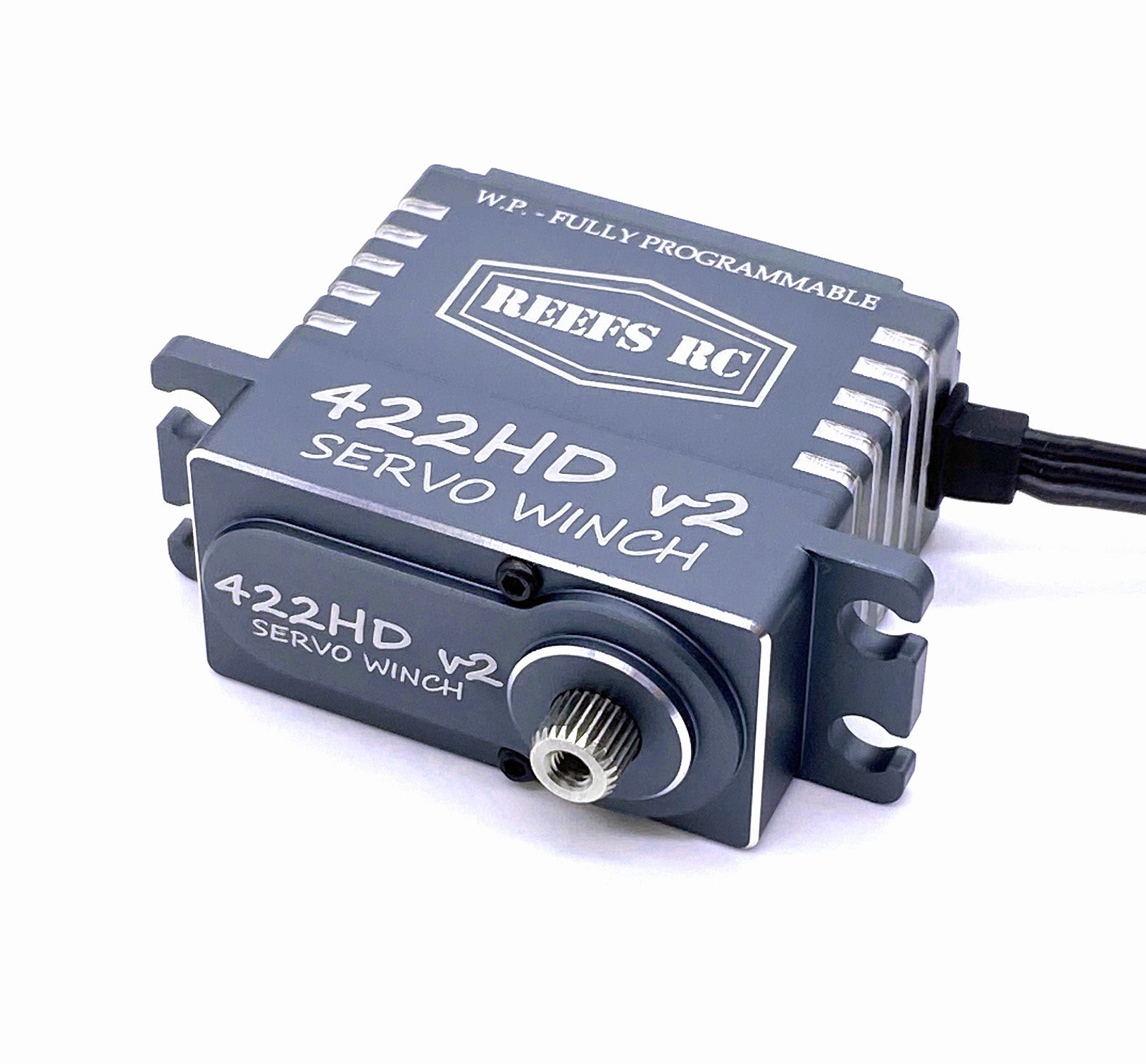

422HDv2 Servo Winch #REEFS43

• FULLY PROGRAMMABLE
• BUILT IN PREPROGRAMMED WINCH CONTROLLER
• High Torque Digital Coreless Servo
• SUBMARINE WATERPROOF: 7 Point Seals

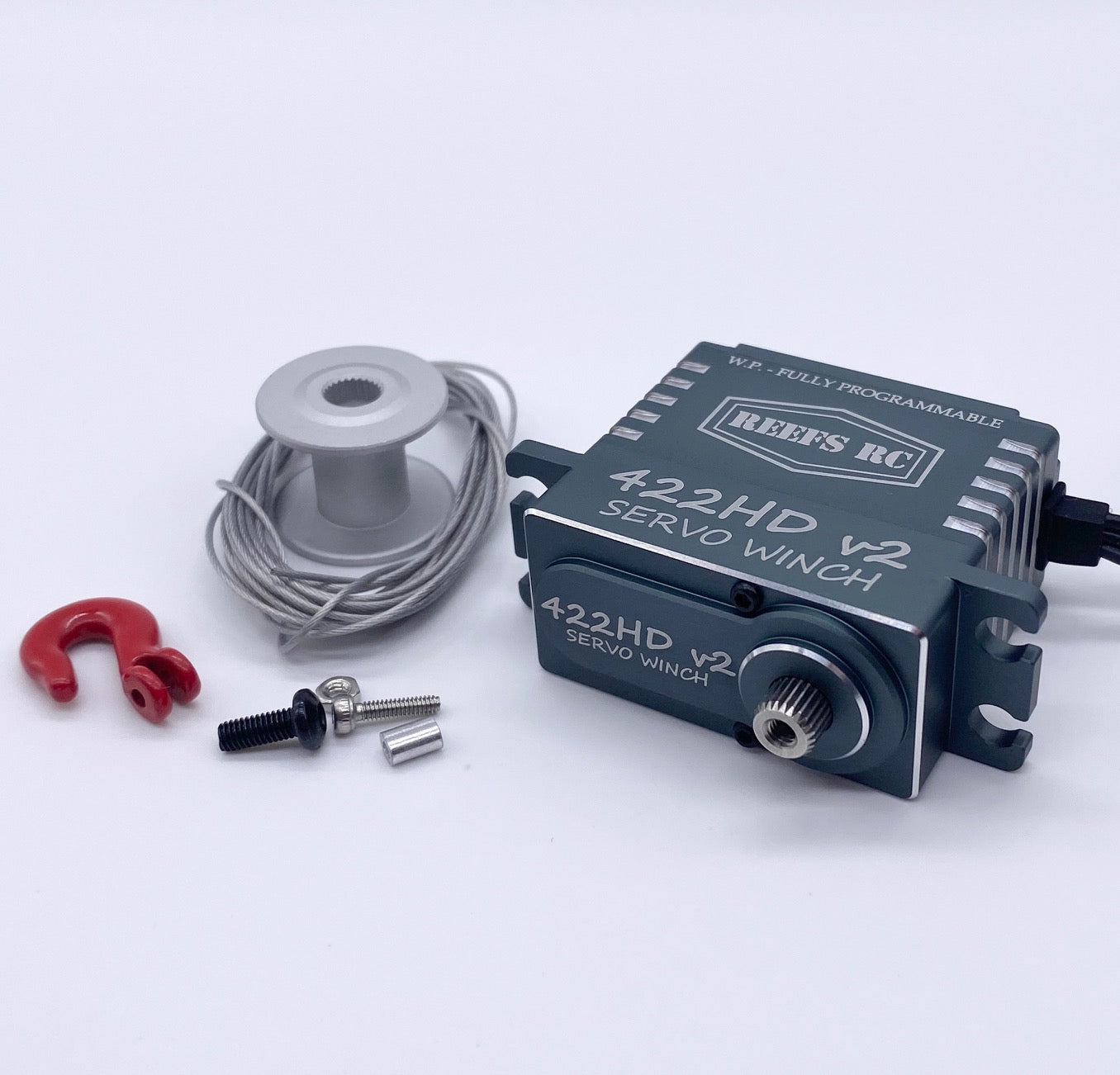

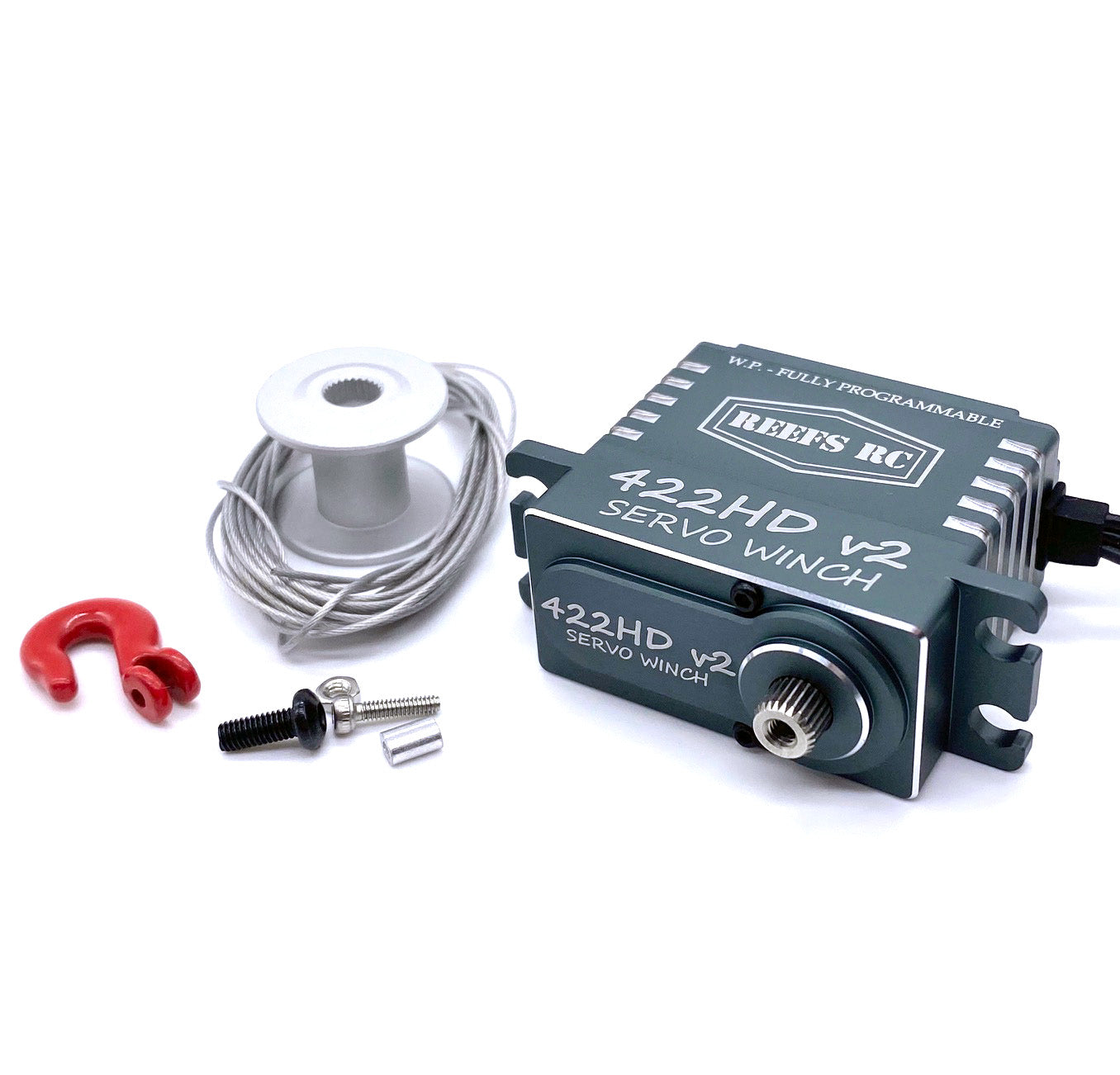

• 7075 CNC SPOOL w/ Clear Finish
• 7’ Silicone Coated Steel Braided Line,
• w/ Scale Recovery Hook
• Magnetic Angle Sensor / Voltage 4.8V - 8.4V
• Fully Programmable w/ REEFS Software
• REEFS LINK required for Programming
• Internal: Steel Gears / CNC Aluminum Casing

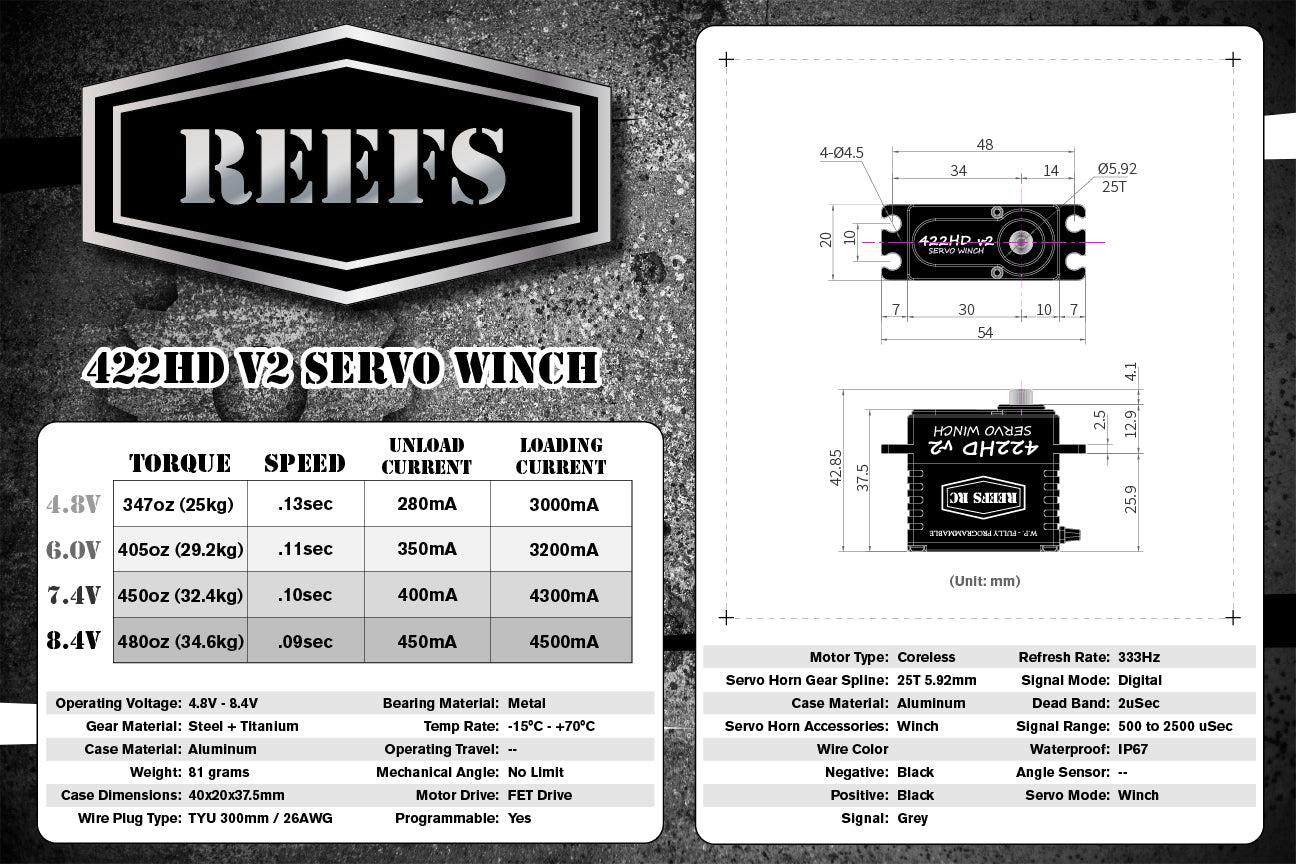

• Bearing Type: 3 Ball Bearings / Weight: 2.85oz

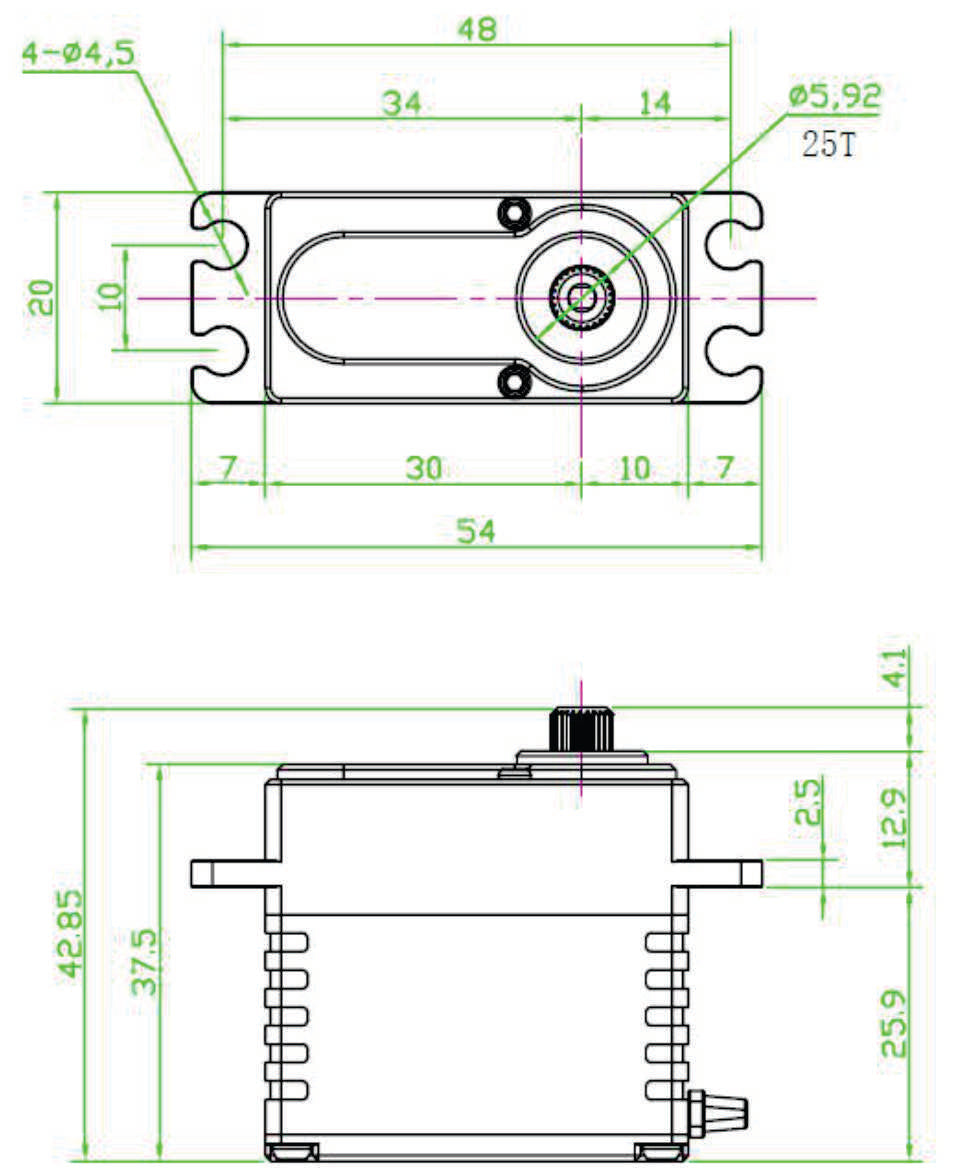

• Dimension: 1.57 x .78 x 1.5 (LWH)
• Torque: 405oz (29.2kg)@ 6v/ 450oz (32.4kg)@7.4v/ 480oz (34.6kg)@8.4v
• Speed: .11sec @6v/.10sec @7.4v/.09sec @8.4v
• Spline: 25T / Dead Band Width: 2¦Ìs
• BEC Not Req. Recommended for max performance

UnloadCurrent

280mA@4.8V
 350mA@6.0V
 400mA@7.4V
 450mA@8.4V

LoadingCurrent

3000mA@4.8V
 3300mA@6.0V
 3800mA@7.4V
 4200mA@8.4V

For programming, the USB Link is required.

Item# REEFS43
