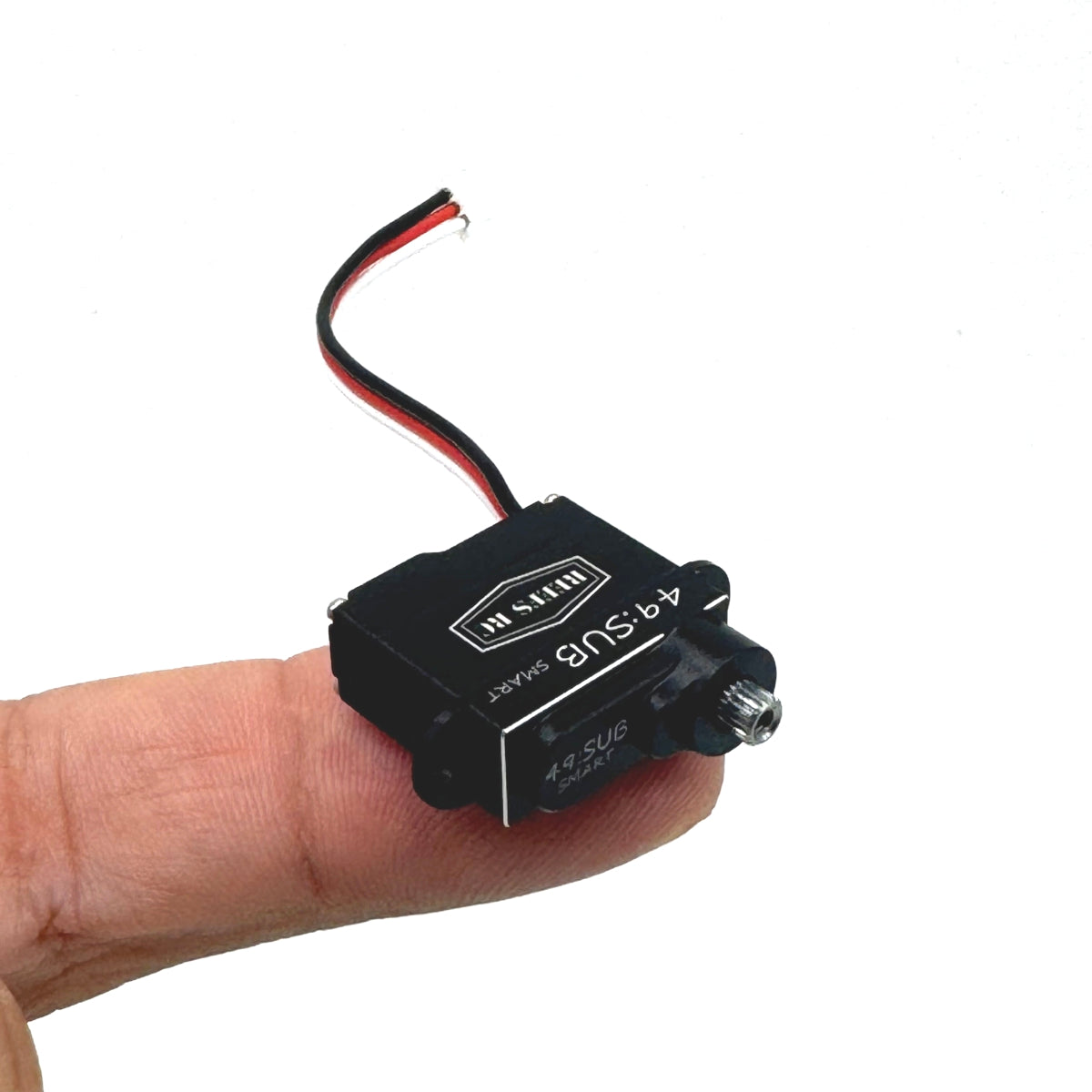

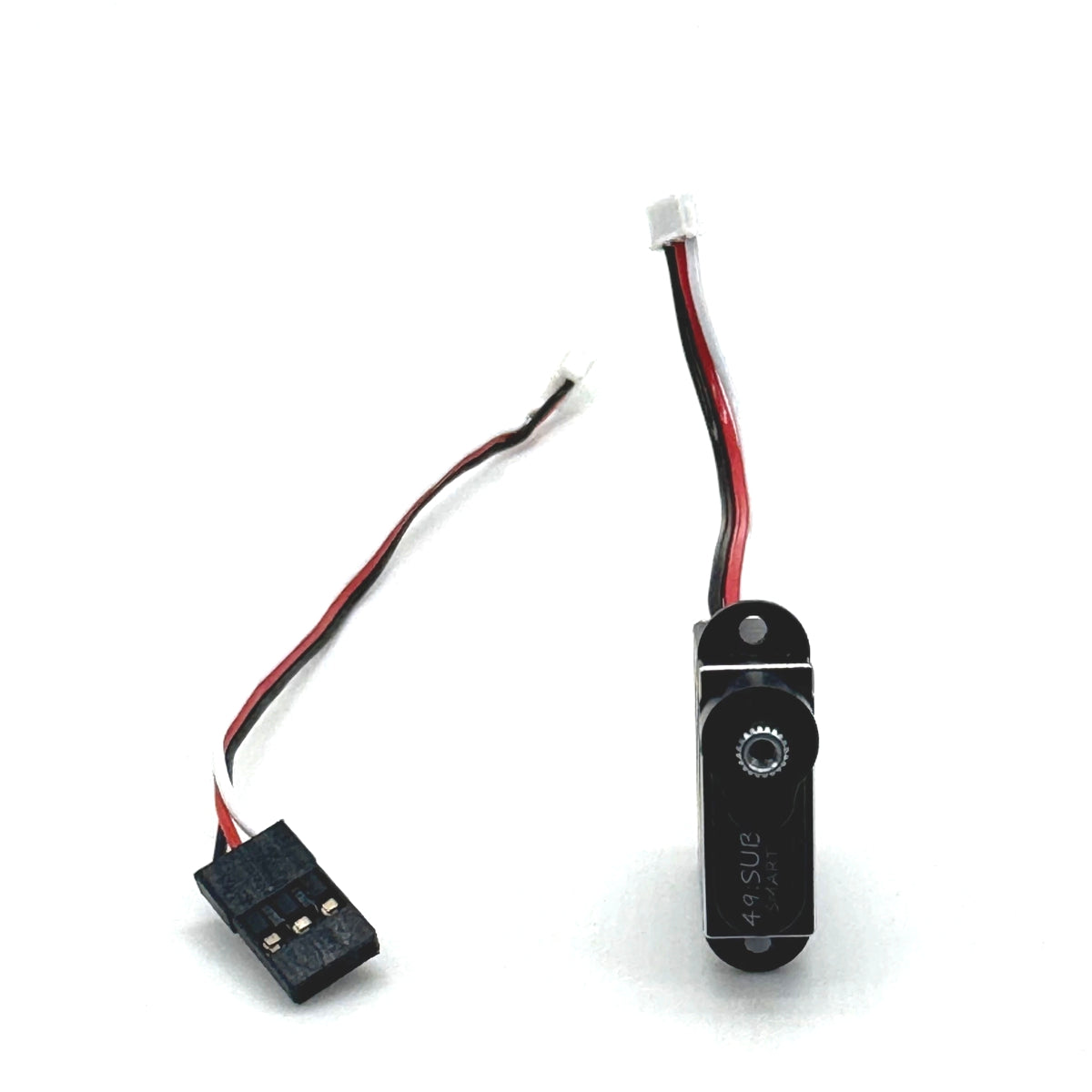

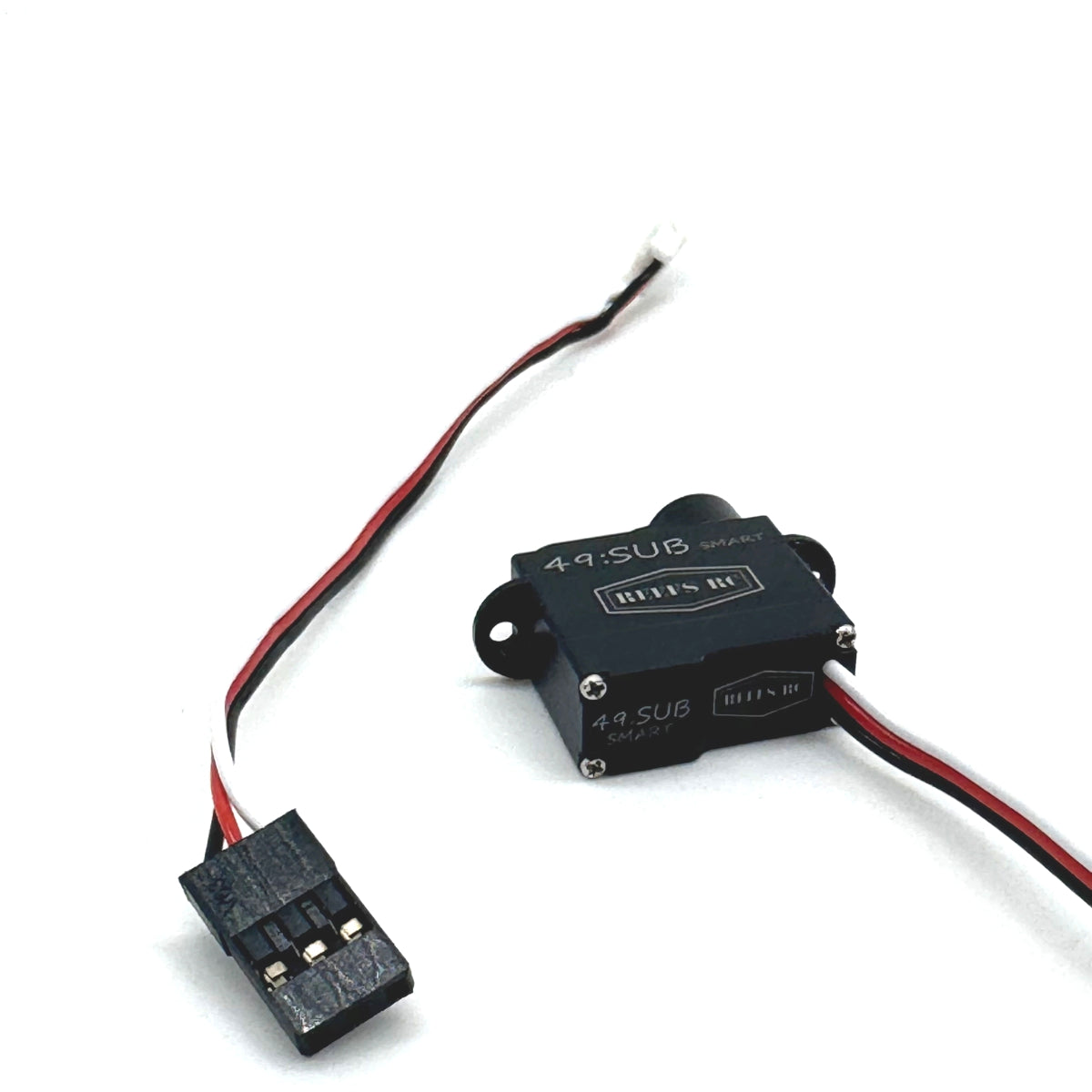

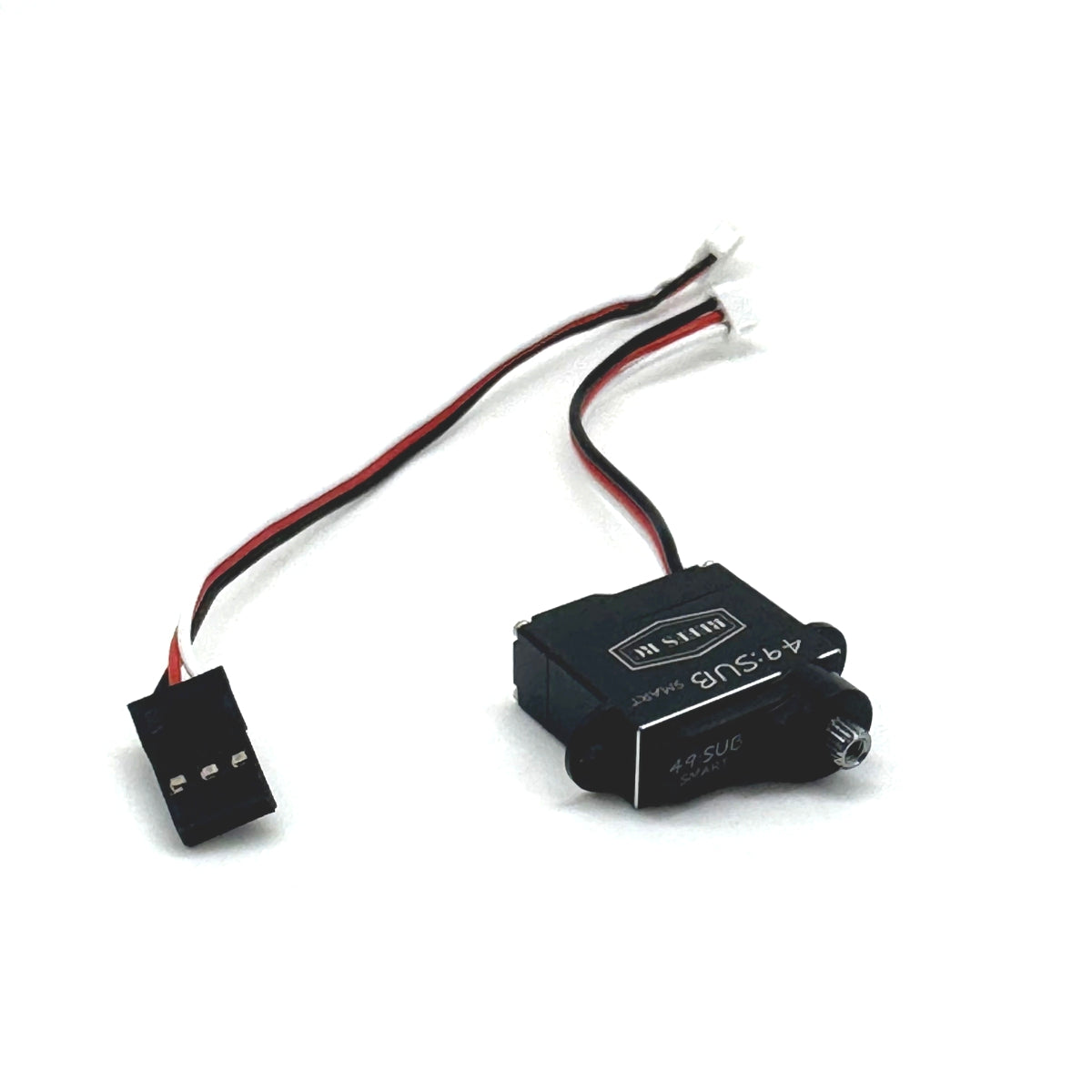

49Sub Micro Servo - REEFS207

49SubMicro Tabs are recommended for multi use installs.

High Torque High Speed
Servo / Winch
Military Grade Construction
Pulse Width Modulation Control
SMART Chip Technology
REEFS LINK required for Programming
(Optional) Comes as Servo

Voltage 4.8v - 8.4v
Internal: Metal Gears
CNC Aluminum Casing
Sealed Bearing
Temp Rate: -15C°~ +70C
Operating Travel: 180°±10°
Mechanical Angle: No Limit
Motor Drive: IC Drive
Weight: .24oz / 7g

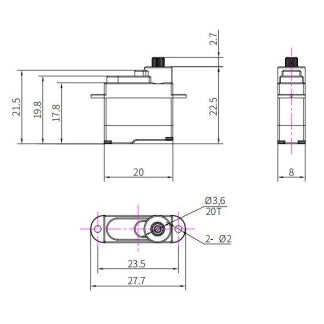

20 x 8 x 17.8 mm (LWH)

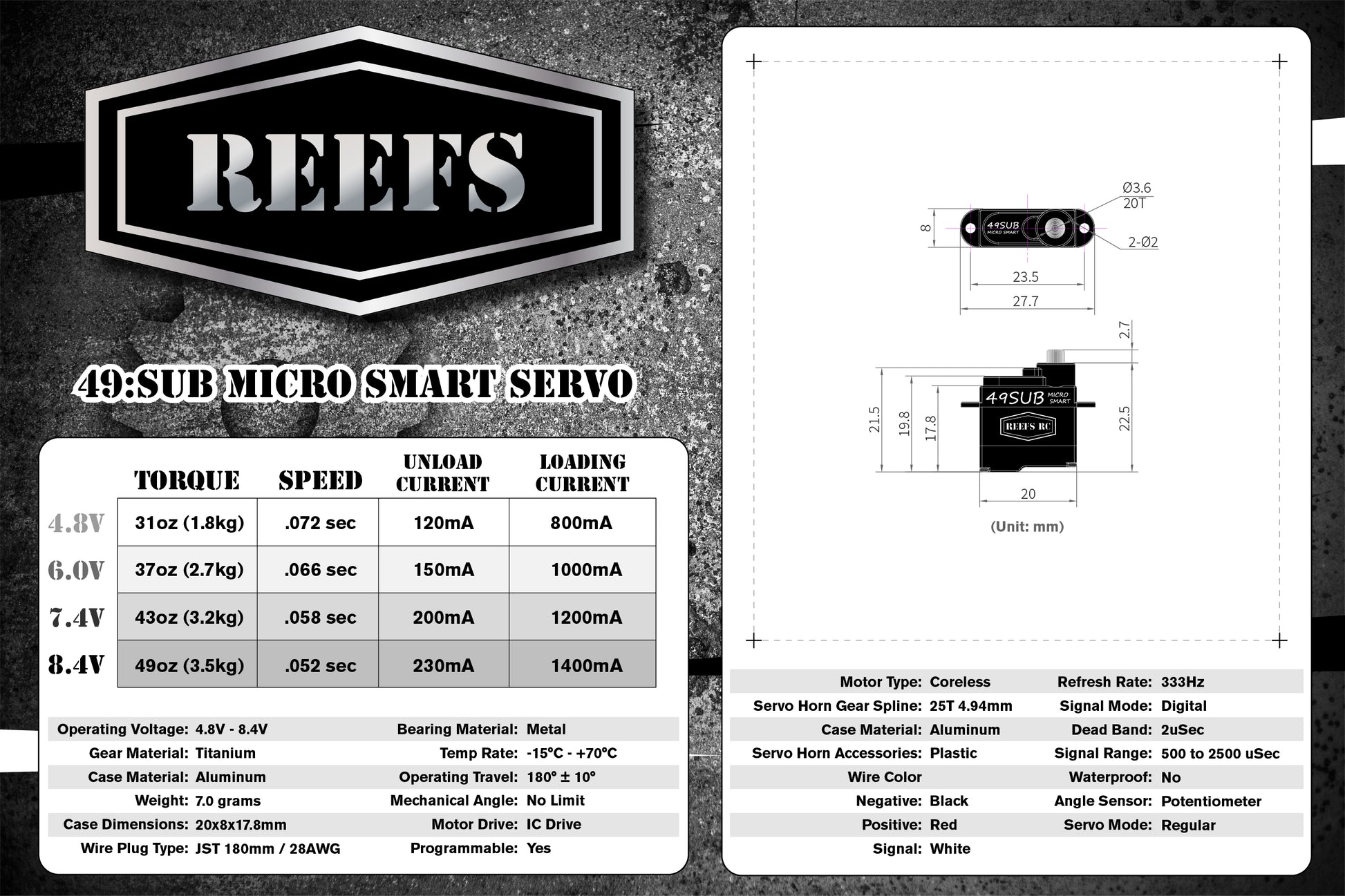

Torque: 37oz (2.7kg)@ 6.0v
              43oz (3.2kg)@ 7.4v
             49oz (3.5kg)@ 8.4v

Speed: .075 sec @ 6.0v
             .058 sec @ 7.4v
             .05 sec @ 8.4v

Spline: 20Tφ4.0mm
Dead Band Width: 2¦Ìs
BEC Not Required,
Recommended for Max Perf.

UnloadCurrent

120mA@4.8V
 150mA@6.0V
 200mA@7.4V
 230mA@8.4V

LoadingCurrent

800mA@4.8V
 1000mA@6.0V
 1200mA@7.4V
 1400mA@8.4V

- REEFS207
