900LP SMART 17V Brushless Direct Power Servo #REEFS186
900LP SMART 17V Brushless Direct Power Servo #REEFS186
Couldn't load pickup availability
It looks like you are gearing up to the next level is servo power!
Before adding that Reef 900LP Servo to your cart, check out Exocages' video on YouTube is definitely a smart move. You’ll get a clearer idea of all the components and steps involved, plus ensure you're fully prepared to make the most of the direct-powered servos.
WARNING!!: Does not work with Rhino ESC Systems! We recommend Holmes or Vt3k ESCs.
Recommend "true"+1200mah +100C battery or more, with an external Zener Diode (included).

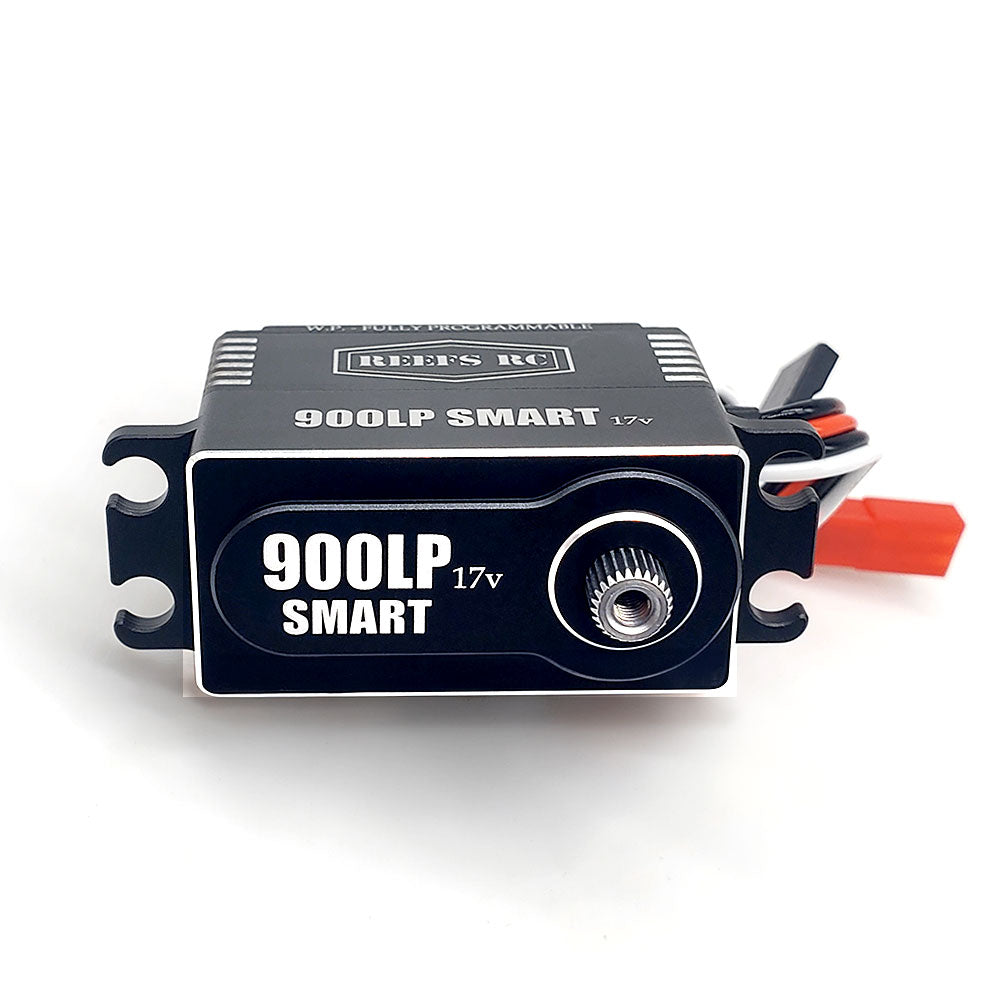

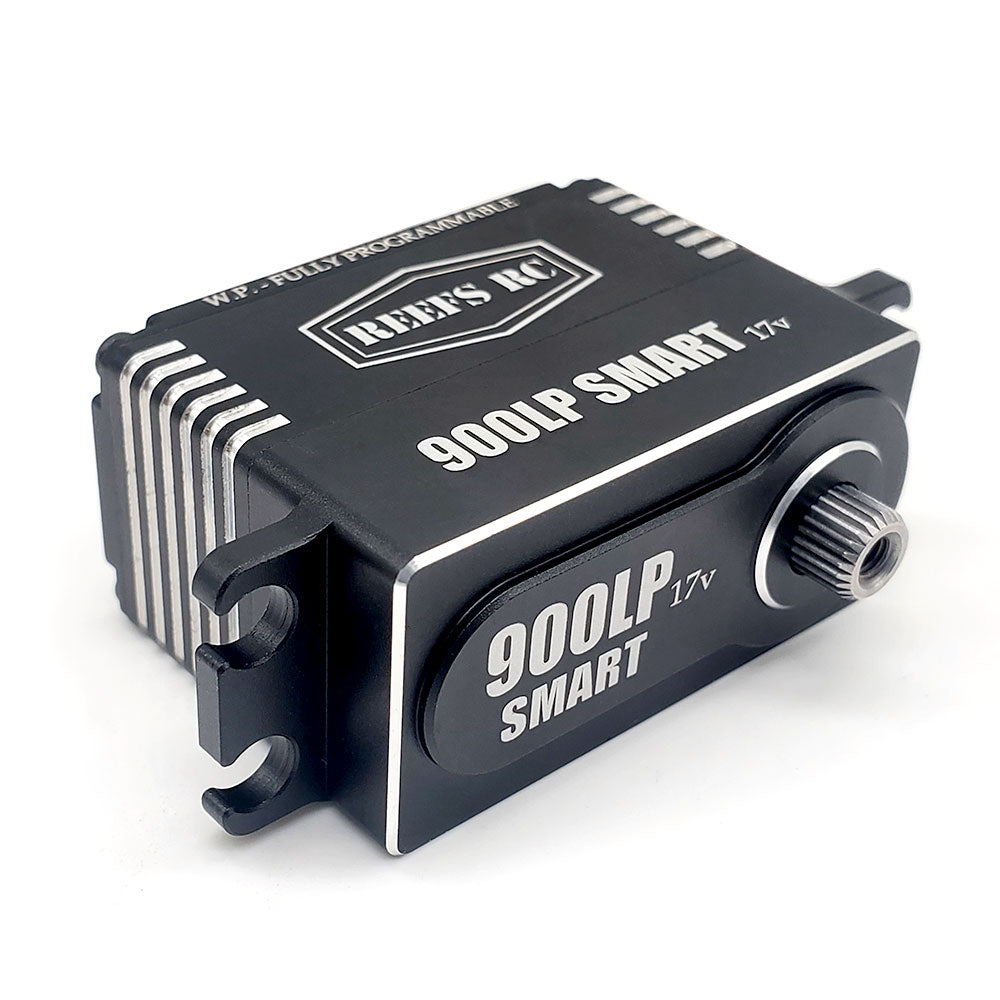

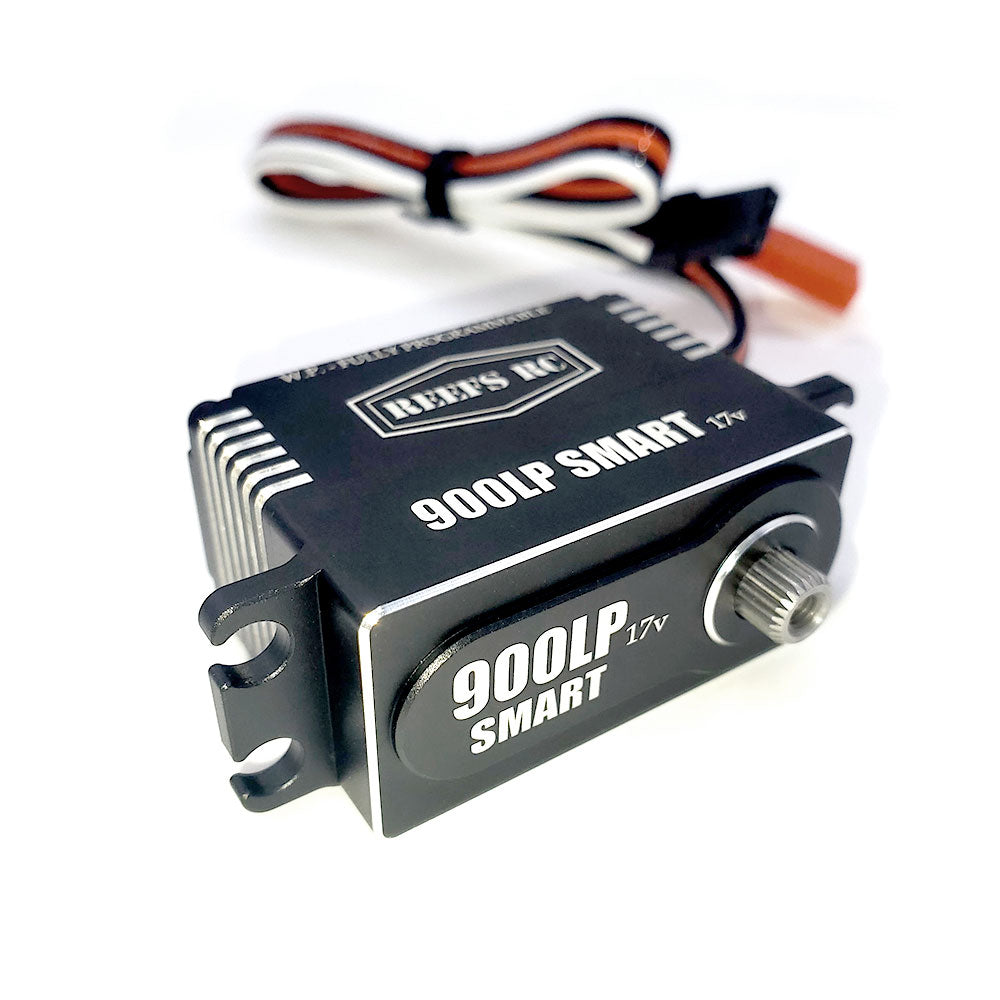

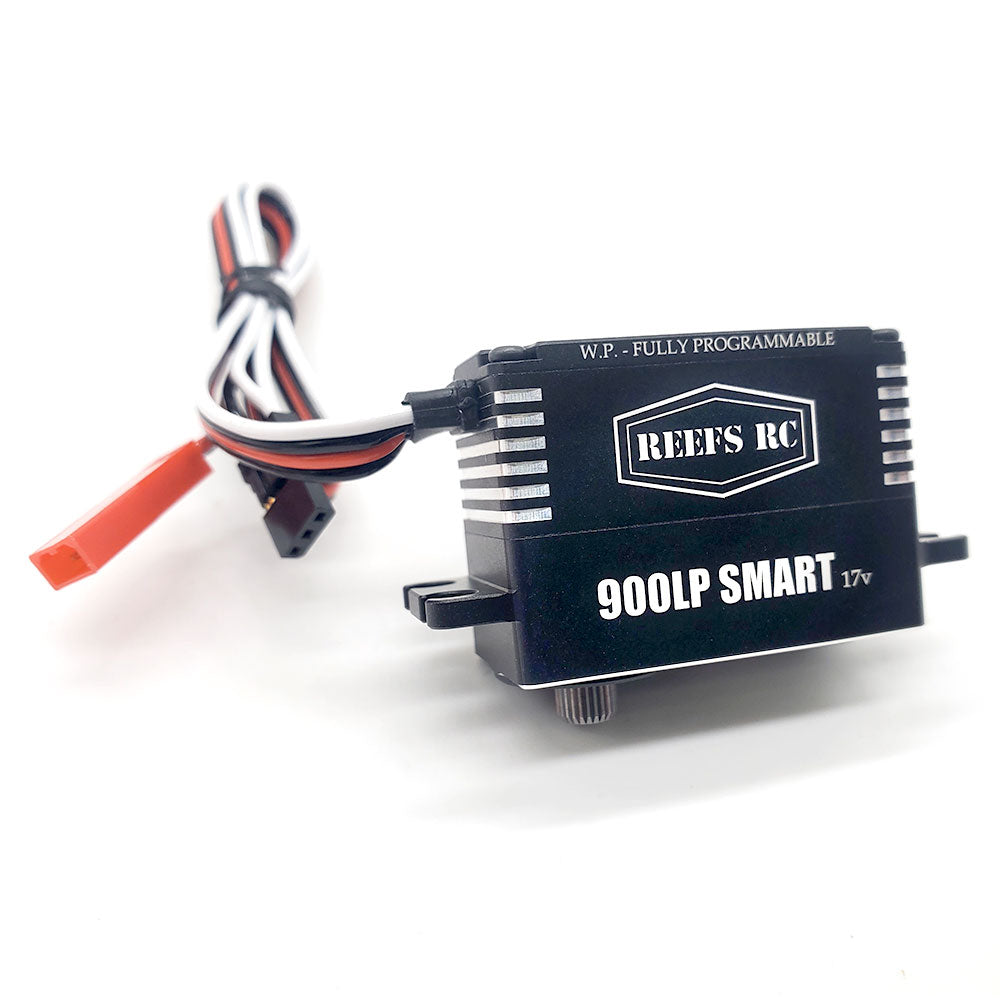

The 900LP SMART brushless servo really has it all! Low-Profile for a smaller footprint and lighter weight, a huge amount of power, capable of up to 17V, awesome speeds all while boasting SMART Programming!
Ready to utilize for your next setup!
This thing is insane!
NOTE: NOT RECOMMENDED TO USE WITH RHINO ELECTRONICS

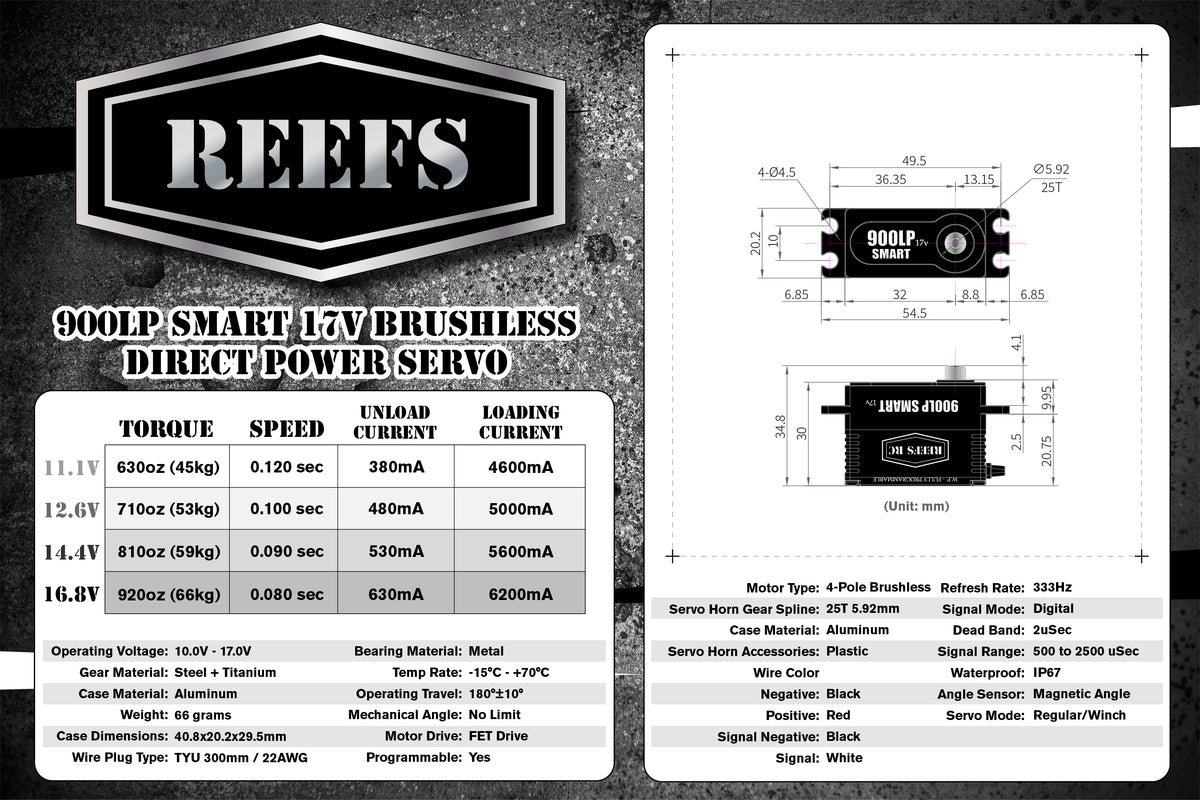

SPECIFICATIONS:
- High Torque High Speed Brushless SERVO or WINCH
- SMART - Comes as SERVO out of the Box. Easily switch to the preprogrammed WINCH Controller mode with the REEFS LINK*
- SUBMARINE WATERPROOF: 7 Point Seals
- Military Grade Construction
- Internal Steel Gears / All CNC Aluminum Casing
- 4-Pole Brushless Motor
- Magnetic Angle Sensor
- Pulse Width Modulation Control
- Bearing Type: 2 Ball Bearings / Weight: 2.3oz / 66g
- Voltage: 10V-17V
- Torque: 710oz (53kg)@12.6v / 810oz (59kg)@14.4v / 920oz (63kg)@16.8v
- Speed: .10sec @12.6v / .09sec @14.4v / .08sec @16.8v
- Dimension: 1.6 x .79 x 1.16 (LWH) / 48mm x 20.2mm x 29.5mm
- Spline: 25T
- Dead Band Width: 2μs
- BEC Not Required, This is a direct power servo.
- FULLY PROGRAMMABLE with BUILT IN PREPROGRAMMED WINCH CONTROLLER (the USB Link is required to switch servo to winch mode)
Unload Current:
320mA@10.0V
380mA@11.1V
480mA@12.6V
530mA@14.4V
630mA@16.8V
Load Current:
4300mA@10.0V
4800mA@11.1V
5800mA@12.6V
6500mA@14.4V
7500mA@16.8V
Item #REEFS186
