Beast 1000 1/5th Scale Servo

Beast 1000 1/5th Scale Servo

SKU: REEFS102

Regular price $389.99
Regular price Sale price $389.99
Sale Sold out
Shipping calculated at checkout.

We have 0 left in stock

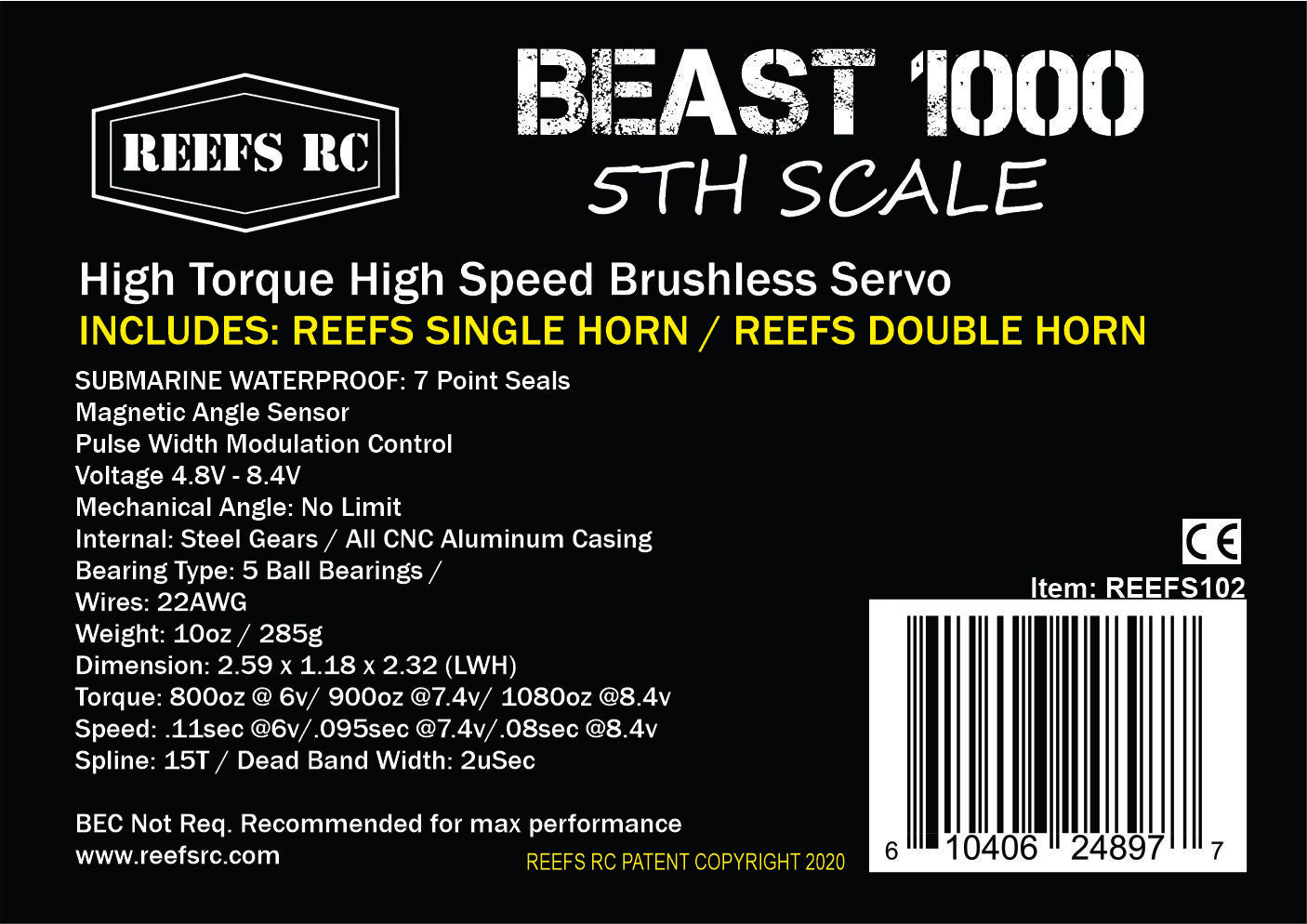

SPECIFICATIONS:

  • High Torque High Speed Brushless Servo

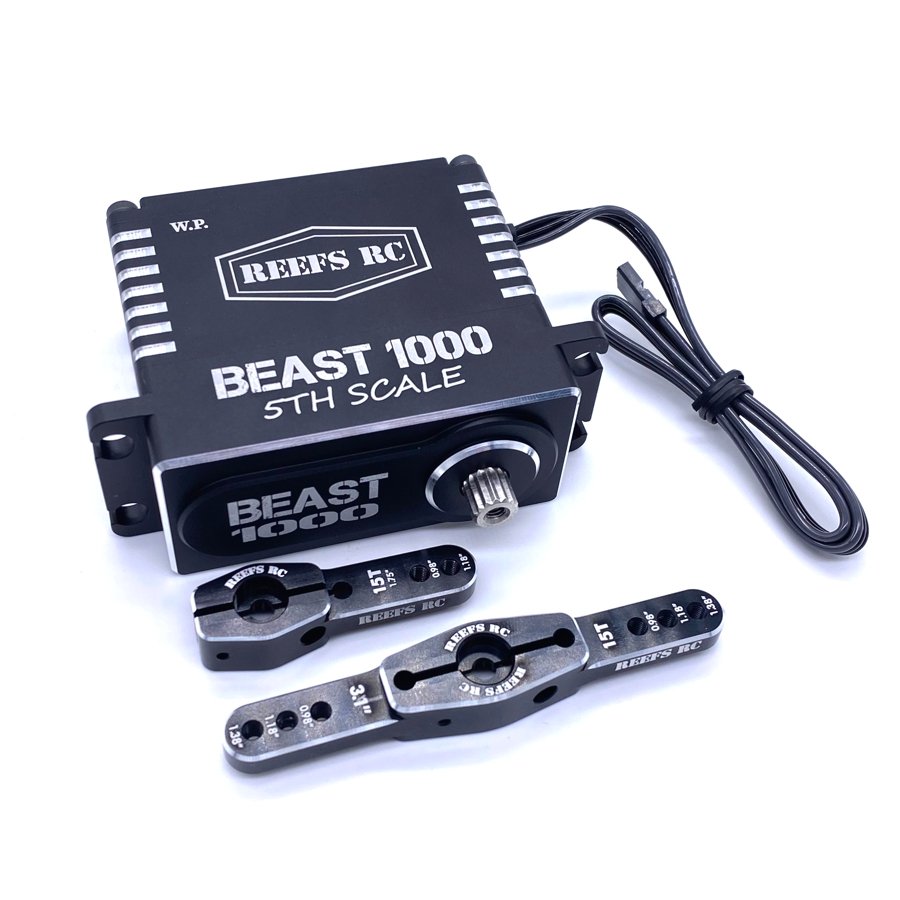

  • INCLUDES: REEFS SINGLE HORN / REEFS DOUBLE HORN
  • SUBMARINE WATERPROOF: 7 Point Seals
  • Magnetic Angle Sensor
  • Pulse Width Modulation Control
  • Voltage: 4.8V - 8.4V
  • Mechanical Angle: No Limit
  • Internal: Steel Gears / All CNC Aluminum Casing
  • Bearing Type: 5 Ball Bearings /
  • Wires: 22AWG
  • Weight: 10oz / 285g
  • Dimension: 2.59 x 1.18 x 2.32 (LWH)
  • Torque: 800oz @ 6v/ 900oz @7.4v/ 1080oz @8.4v
  • Speed: .11sec @6v/.095sec @7.4v/.08sec @8.4v
  • Spline: 15T / Dead Band Width: 2uSec
  • BEC Not Req. (Recommended for max performance)
  • Load Current:
  • 8800 mA @ 4.8V 9800 mA @ 6.0V 10500 mA @ 7.4V 11000 mA @ 8.4V
  • Unload Current:
  • 550 mA @ 4.8V 600 mA @ 6.0V 700 mA @ 7.4V 820 mA @ 8.4V
Hardware Included:
  • (1) Servo Horn Screw 3.5x8mm
  • (3) 3x16mm Cap Head Screws for end of horns.
  • (4) 2mm Horn Clamping Cap Head Screws
