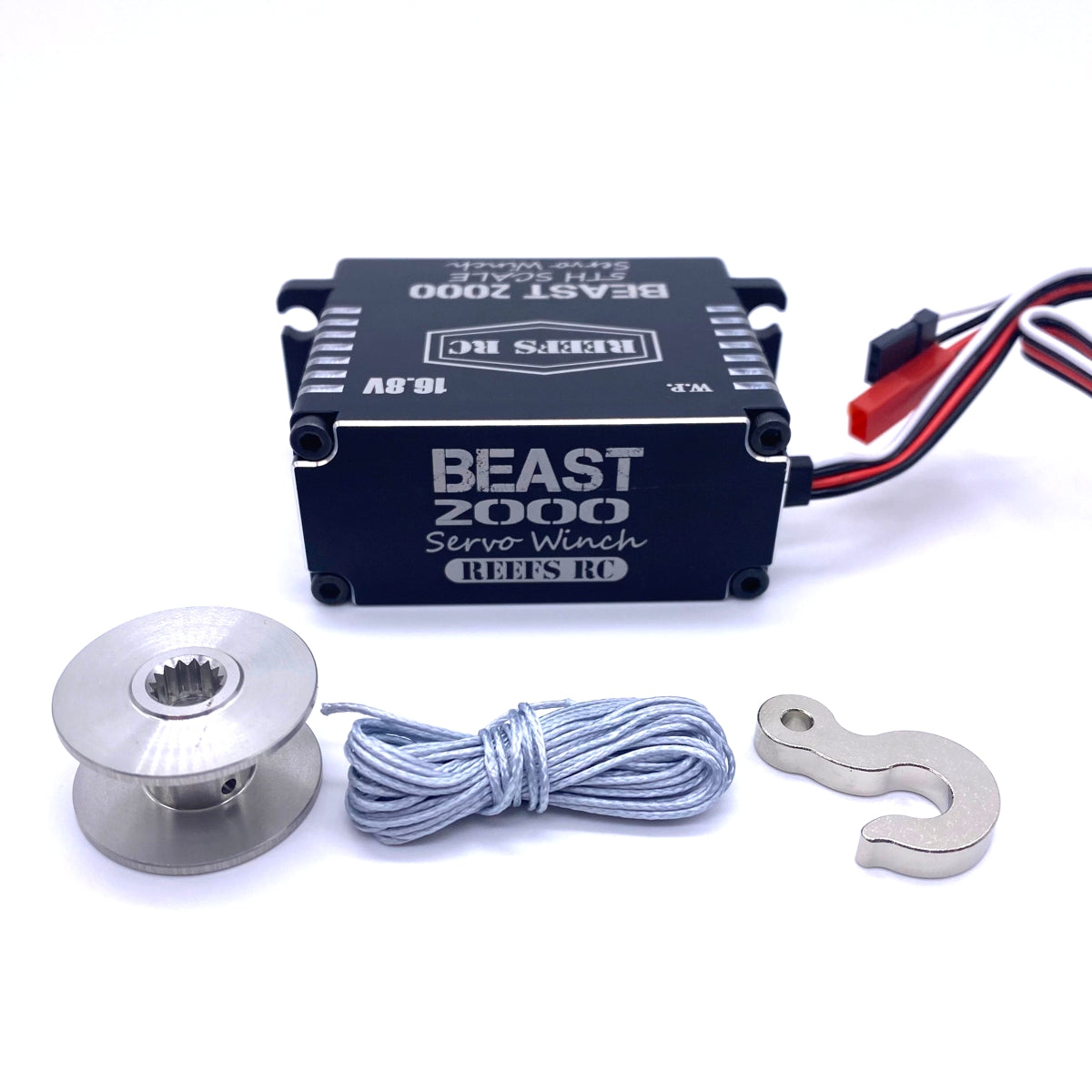

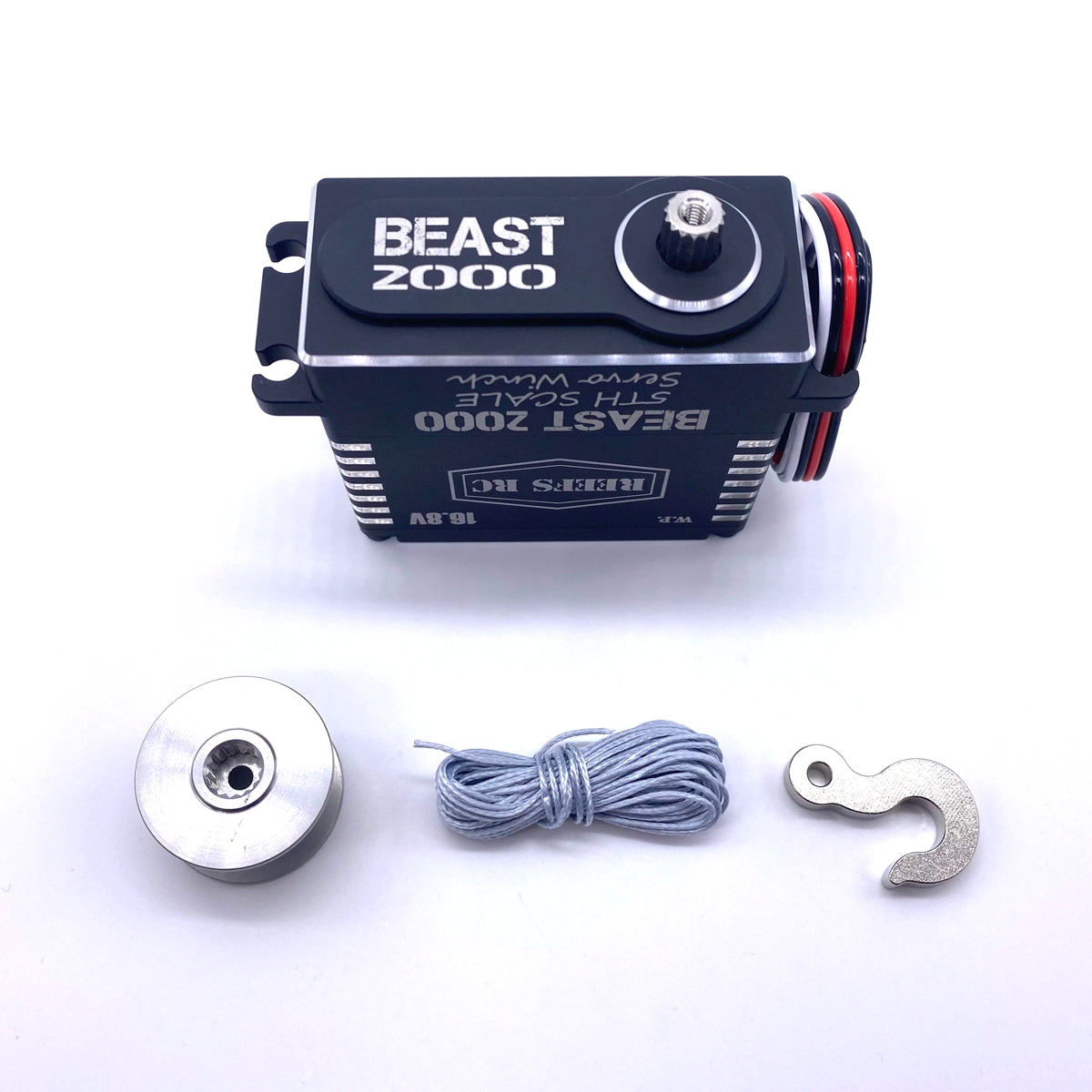

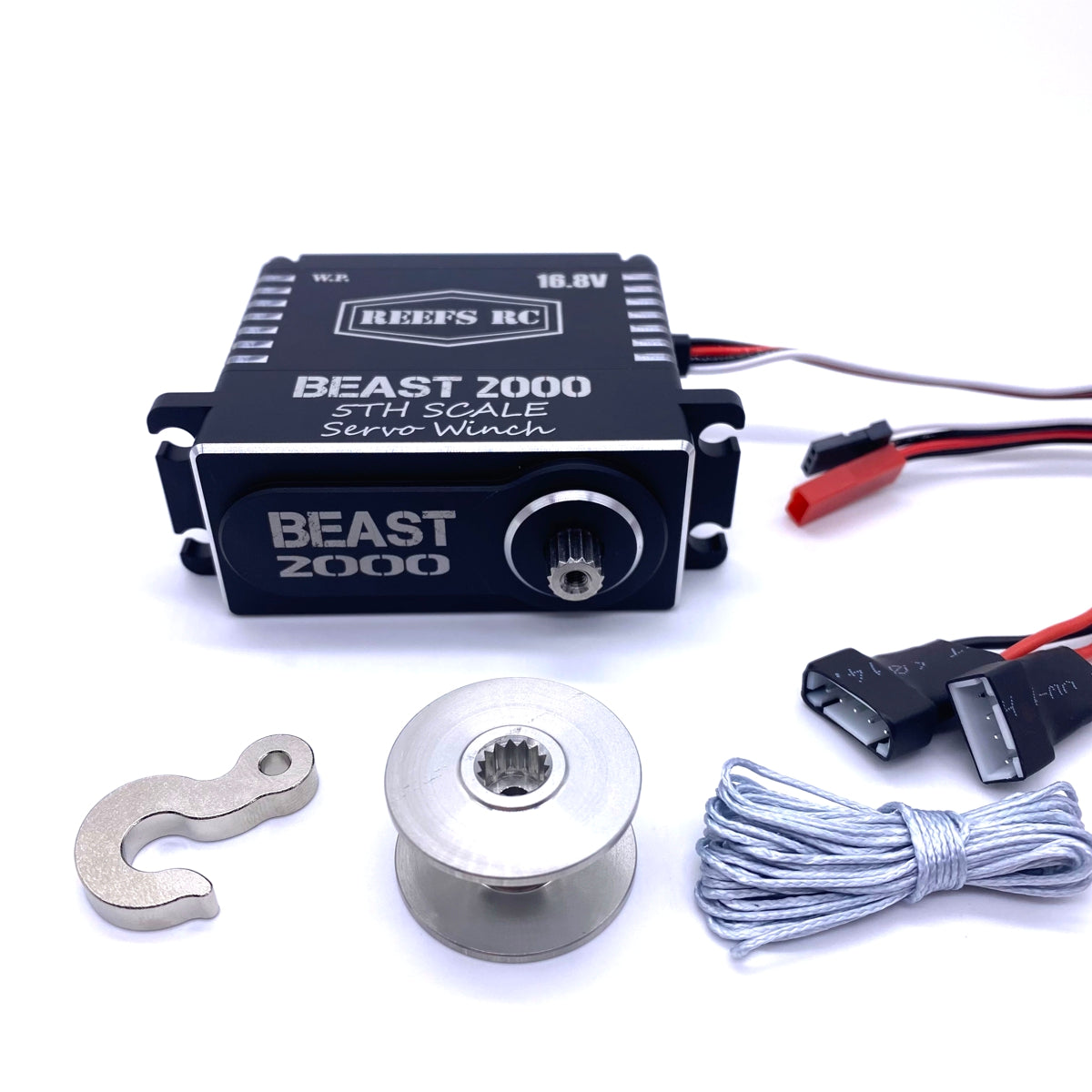

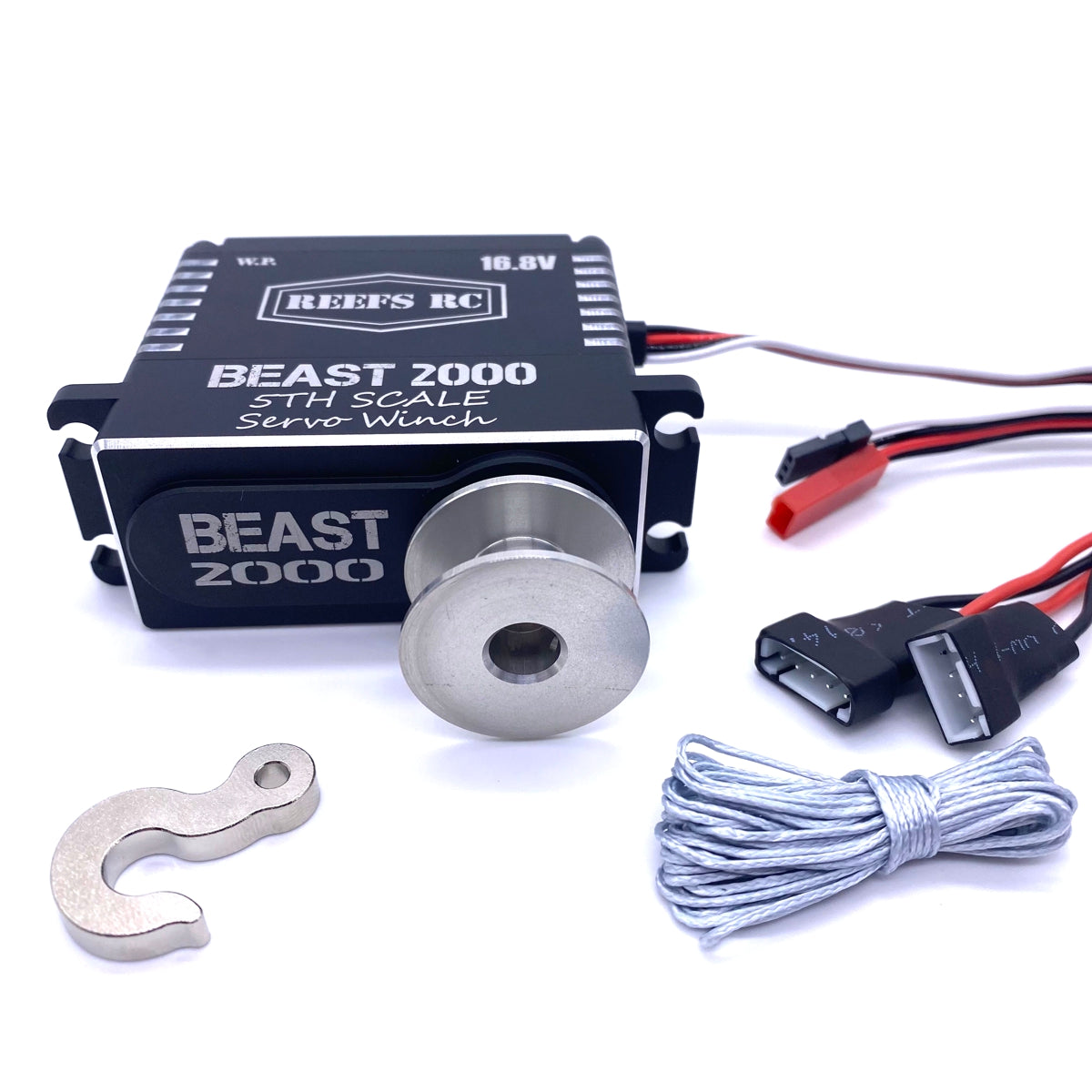

Beast 2000 1/5 Scale Servo Winch #REEFS117

• High Torque High Speed Brushless Servo
• W/: REEFS SPOOL / REEFS 5TH SCALE HOOK / SYN. LINE / 3S & 4S CONNECTOR
• SUBMARINE WATERPROOF: 7 Point Seals
• Magnetic Angle Sensor
• Pulse Width Modulation Control
• Voltage 7.4V - 16.8V
• Mechanical Angle: No Limit
• Internal: Steel Gears / All CNC Aluminum Casing
• Bearing Type: 5 Ball Bearings /
• Weight: 10oz / 285g / Wires: 22AWG
• Dimension: 2.59 x 1.18 x 2.32 (LWH)
• Torque: 1000oz (72kg)@ 10v/ 1250oz (90kg)@11.1v/ 1450oz (104.4kg)@12v / 2000 (144kg)@ 16.8v
• Speed: .11sec @10v/.105sec @11.1v/.10sec @12v/ .09sec @ 14.4v / .08sec @ 16v
• Spline: 15T
• Dead Band Width: 2uSec

UnloadCurrent

950mA@10.0V
 1000mA@11.1V
 1060mA@12.0V
 1200mA@14.4V
 1300mA@16.0V

LoadingCurrent

7700mA@10.0V
 8300mA@11.1V
 9200mA@12.0V
 10600mA@14.4V
 11000mA@16.0V

Item# REEFS117
