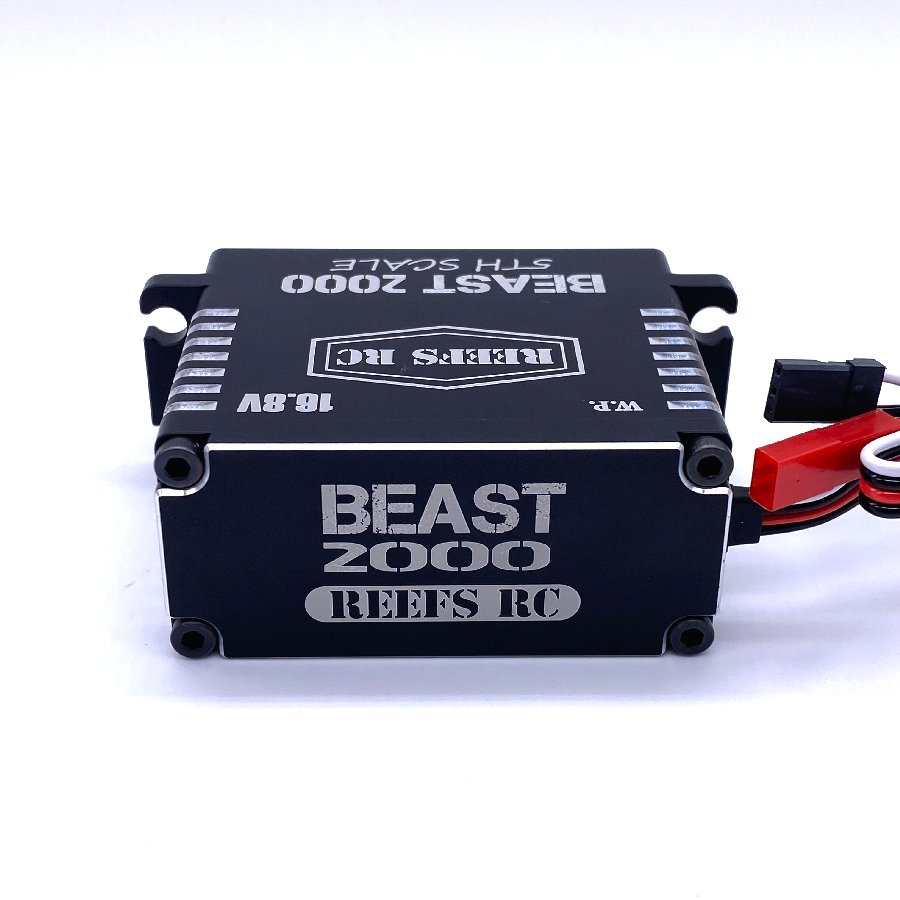

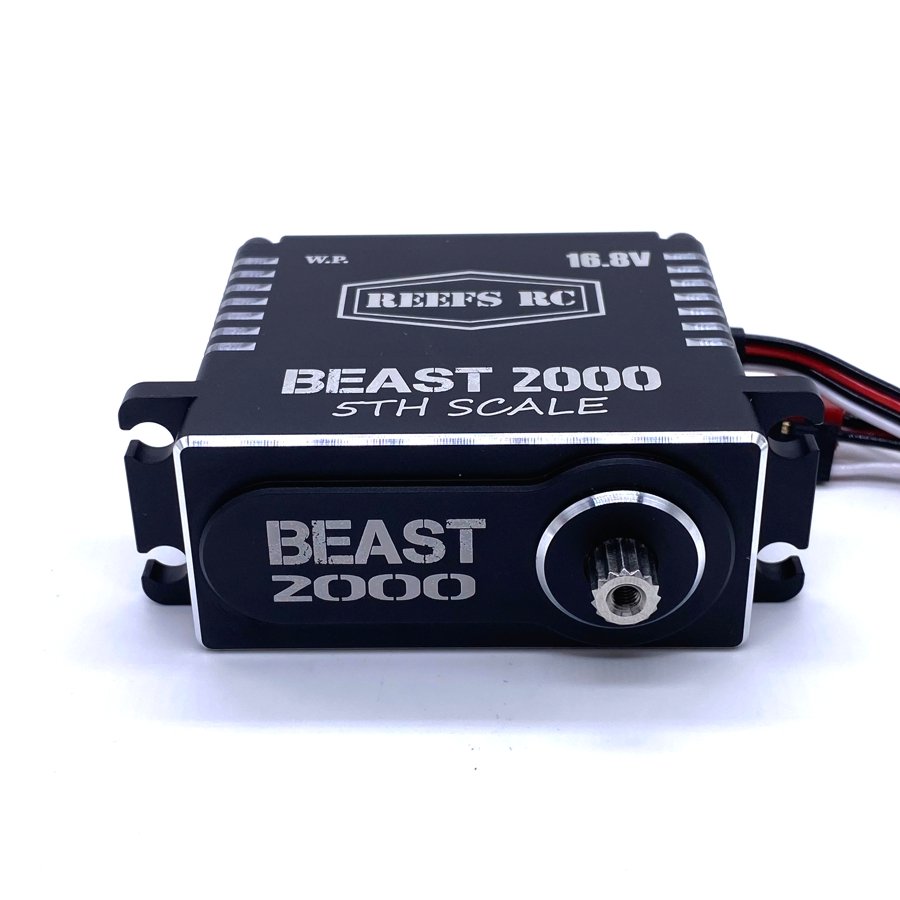

Beast 2000 1/5th Scale Servo #REEFS103

Beast 2000 1/5th Scale Servo #REEFS103

Regular price $449.99
Regular price Sale price $449.99
Discounted Price Sold out
Shipping calculated at checkout.


Specifications:
  • High Torque High Speed Brushless Servo
  • INCLUDES: REEFS SINGLE HORN / REEFS DOUBLE HORN / 3S & 4S CONNECTOR
  • SUBMARINE WATERPROOF: 7 Point Seals
  • Magnetic Angle Sensor
  • Pulse Width Modulation Control
  • Voltage 7.4V - 16.8V
  • Mechanical Angle: No Limit
  • Internal: Steel Gears / All CNC Aluminum Casing
  • Bearing Type: 5 Ball Bearings /
  • Weight: 10oz / 285g / Wires: 22AWG
  • Dimension: 2.59 x 1.18 x 2.32 (LWH)
  • Torque: 1000oz @ 10v/ 1250oz @11.1v/ 1450oz @12v / 2000 @ 16.8v
  • Speed: .10sec @10v/.11sec @11.1v/.10sec @12v/ .09sec @ 14.4v / .08sec @ 16v
  • Spline: 15T / Dead Band Width: 2uSec

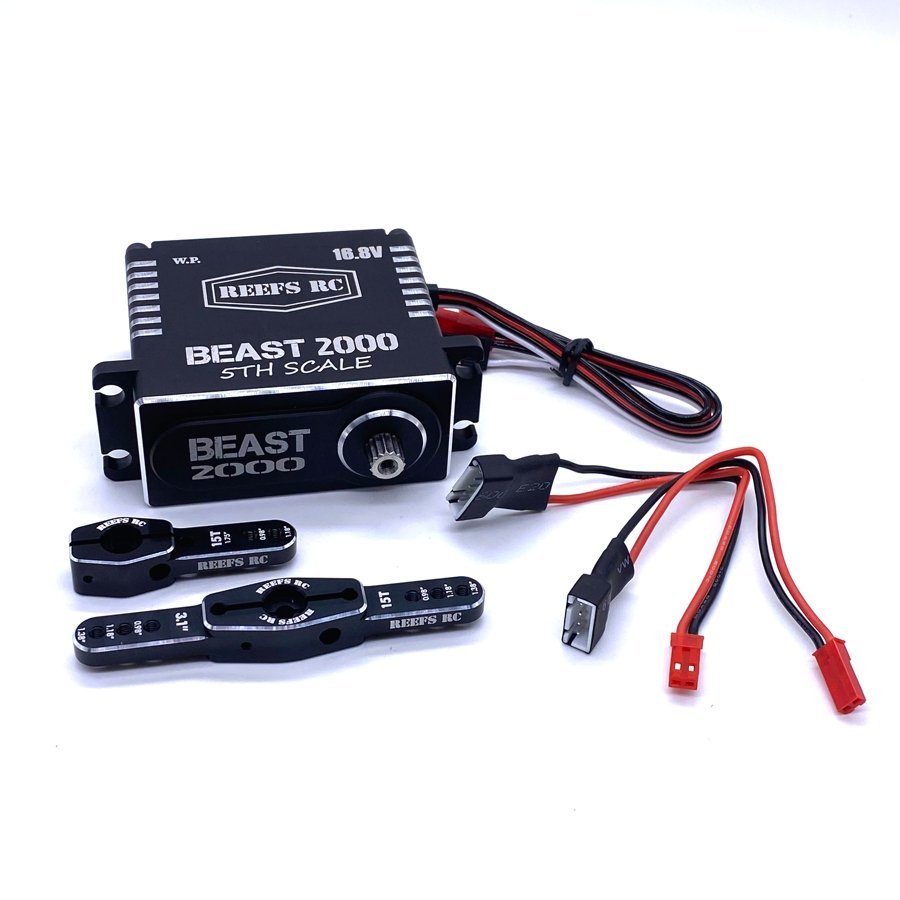

Hardware Included:

  • (1) Servo Horn Screw 3.5x8mm
  • (3) 3x16mm Cap Head Screws for end of horns.
  • (4) 2mm Horn Clamping Cap Head Screws

Load Current:

  • 7700 mA @ 10.0V
  • 8300 mA @ 11.1V
  • 9200 mA @ 12.0V
  • 10600 mA @ 14.4V
  • 11000 mA @ 16.0V

Unload Current:

  • 950 mA @ 10.0V
  • 1000 mA @ 11.1V
  • 1060 mA @ 12.0V
  • 1200 mA @ 14.4V
  • 1300 mA @ 16.0V
Item# REEFS103
