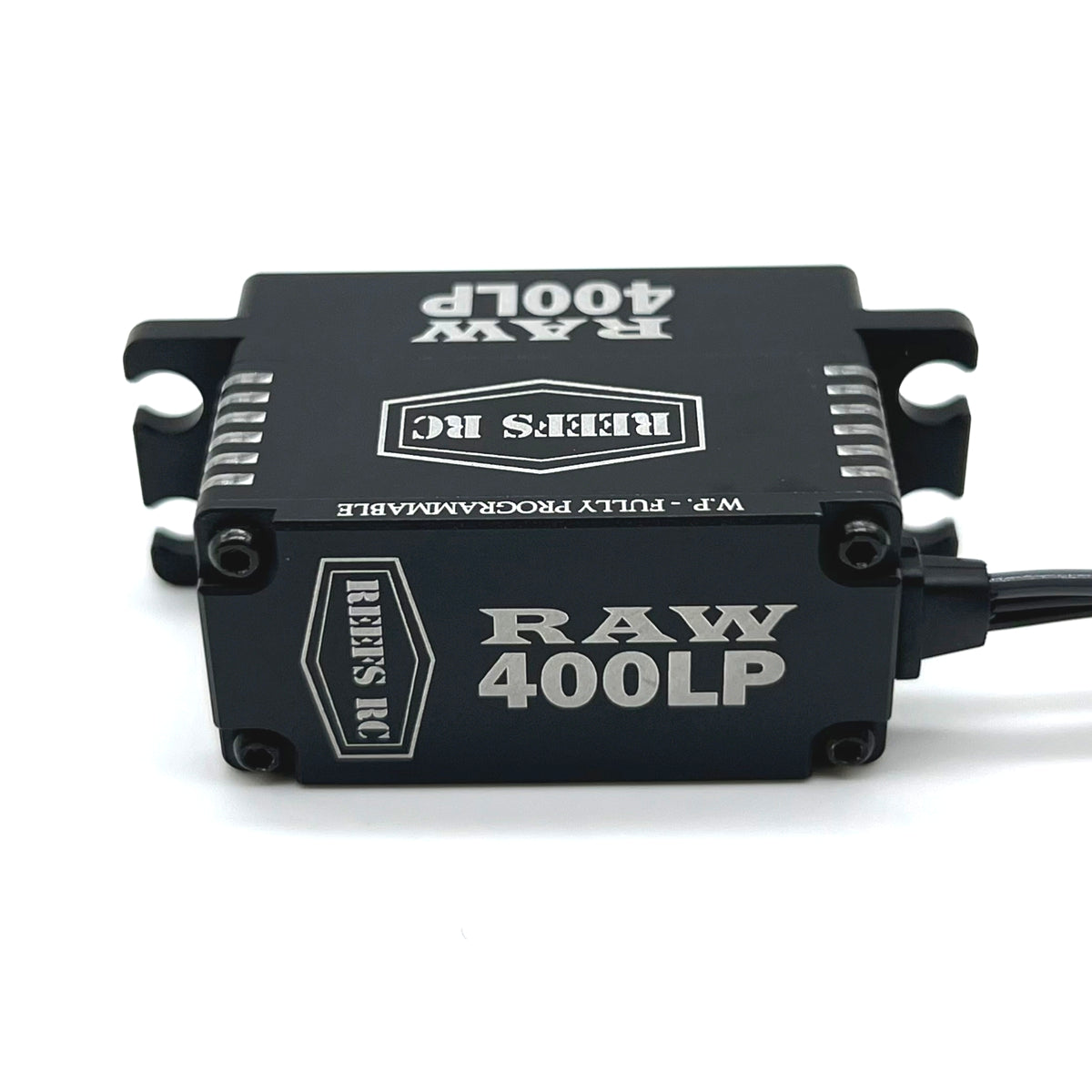

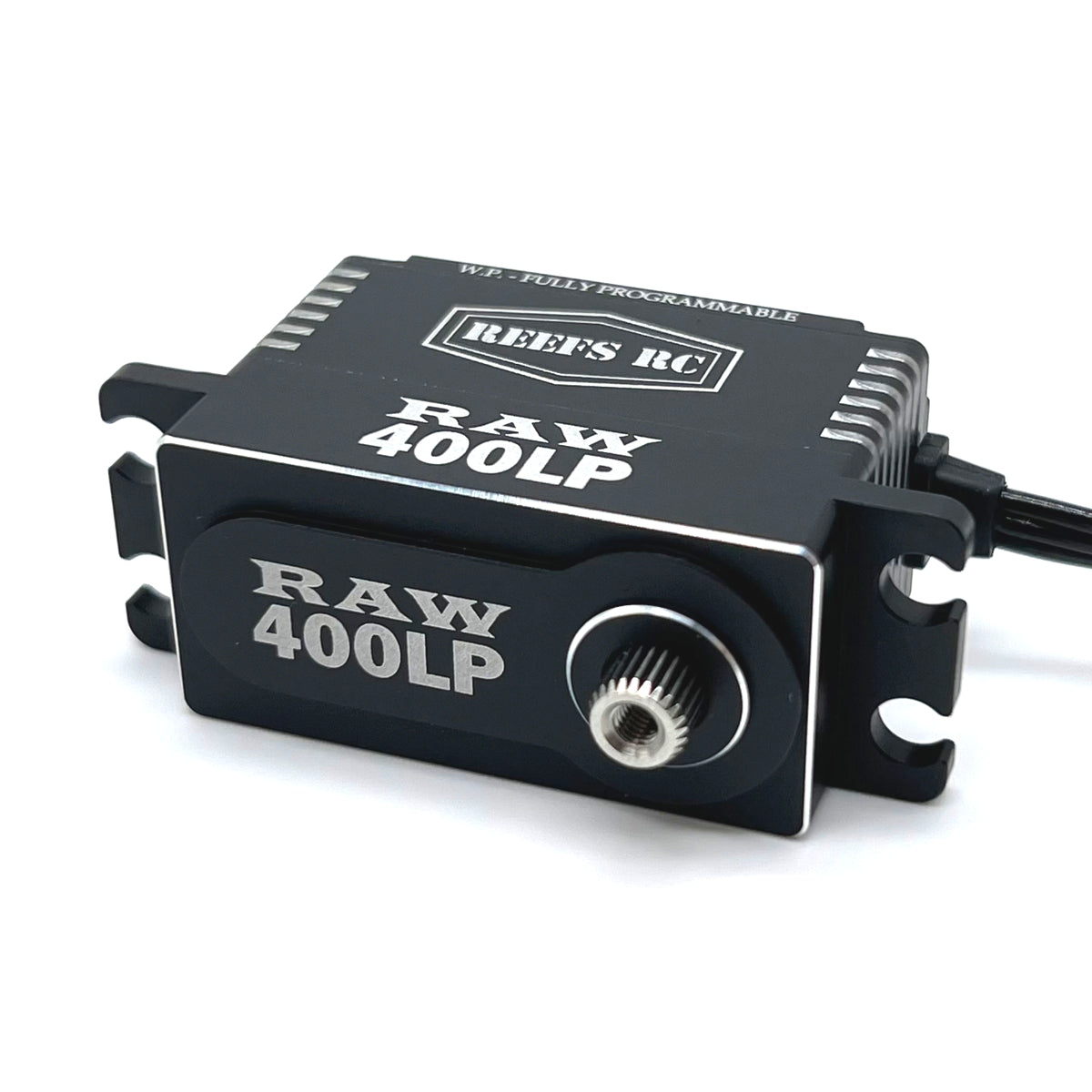

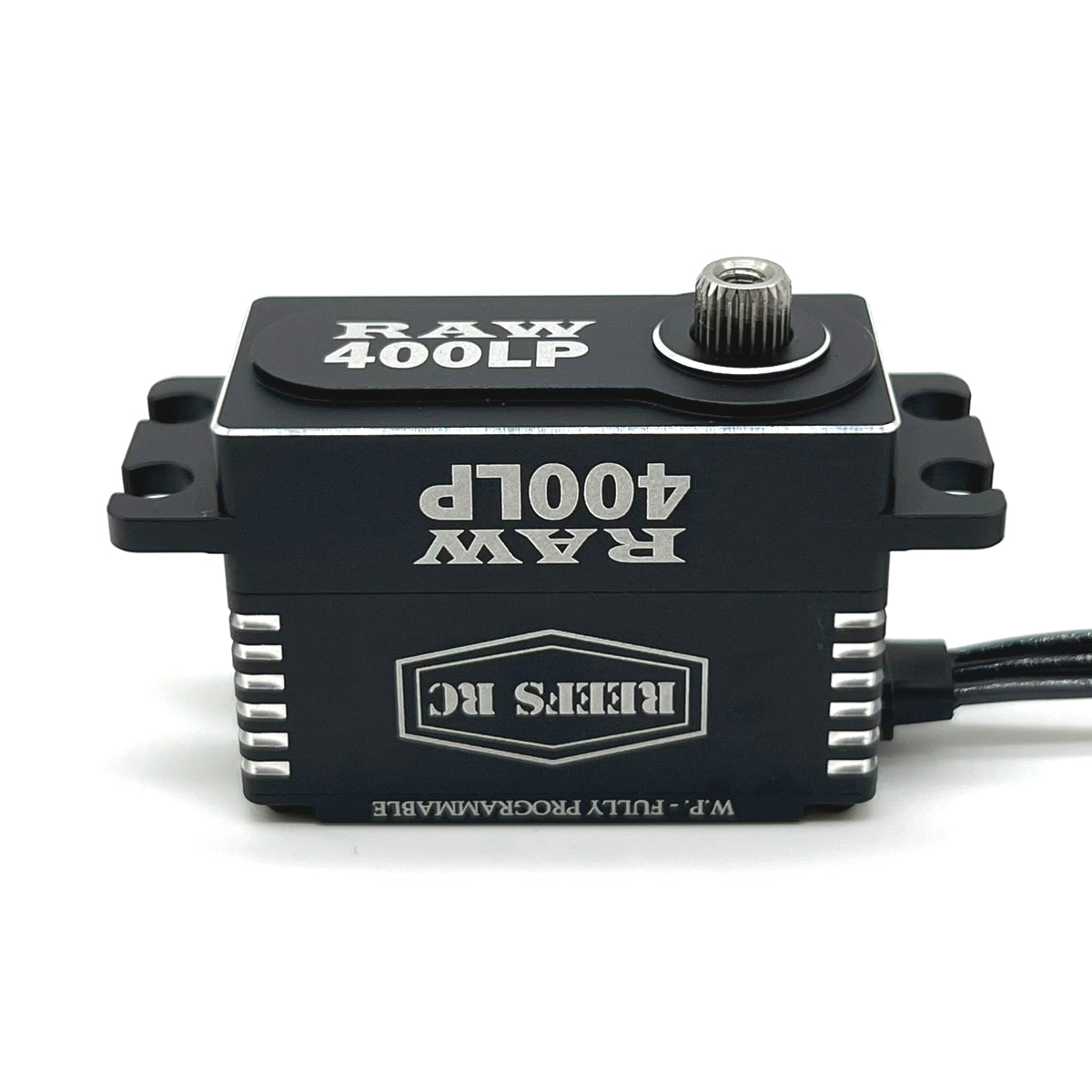

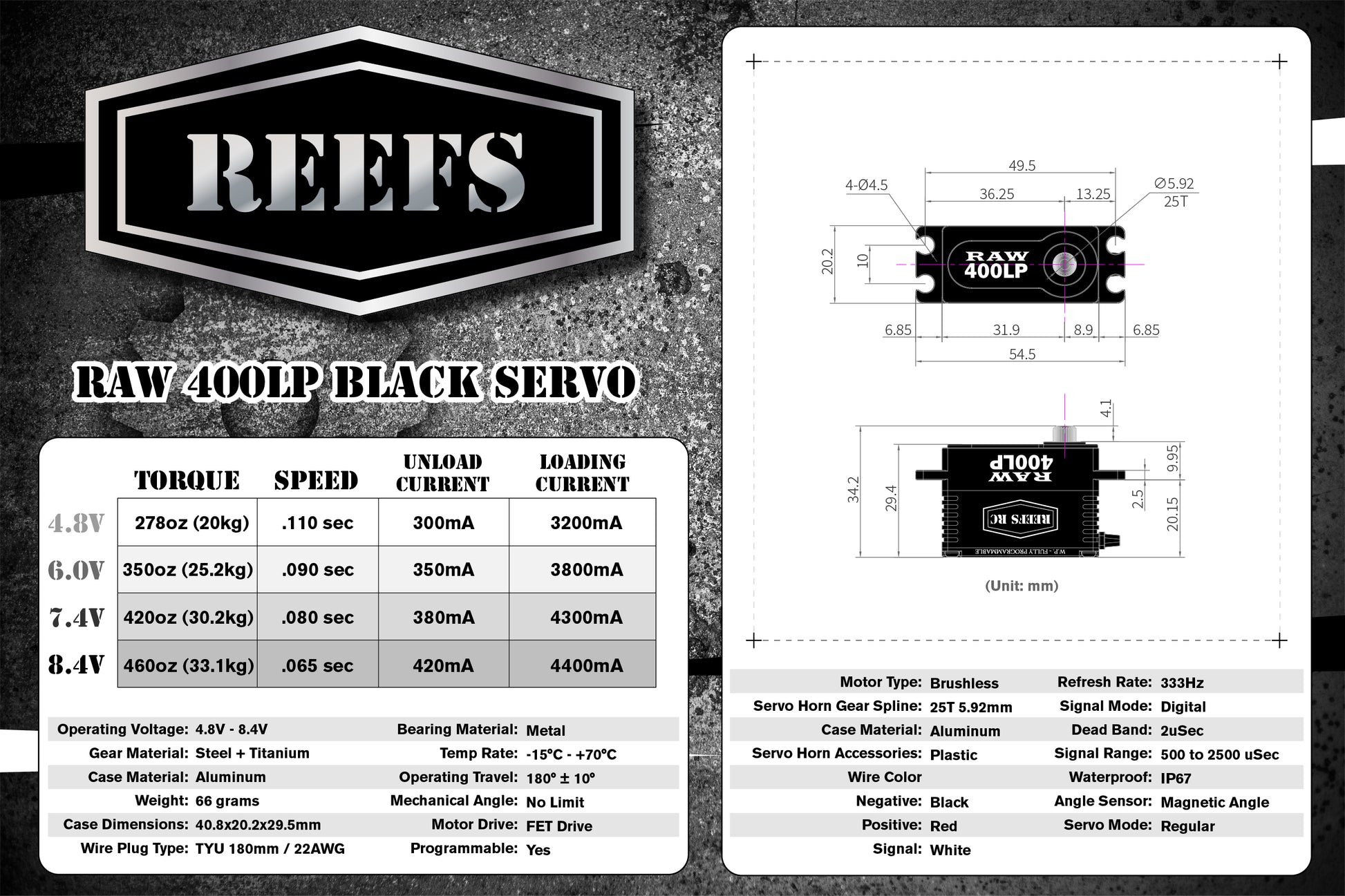

RAW 400LP Black #REEFS137

• SUBMARINE WATERPROOF: 7 Point Seals
• Magnetic Angle Sensor
• Fully Programmable w/ REEFS Software (REEFS USB LINK required)
• Voltage: 4.8V - 8.4V
• Internal: Steel Gears / All CNC Aluminum REEFS Case
• Bearing Type: 2 Ball Bearings
• Weight: 2.30oz

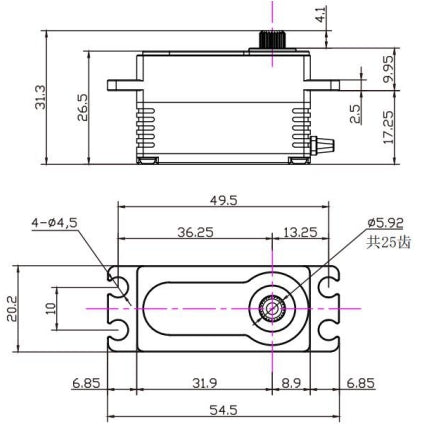

• Dimensions: 1.6 x .79 x 1.16 (LWH)
• Torque: 350oz (25.2kg)@ 6v/ 420oz (30.2kg)@7.4v/ 460oz (33.1kg)@8.4v
• Speed: .09sec @6v/.08sec @7.4v/.065sec @8.4v
• Spline: 25T
• Dead Band Width: 2¦Ìs
• BEC Not Required (Recommended for best performance)

UnloadCurrent

300mA@4.8V
 350mA@6.0V
 380mA@7.4V
 420mA@8.4V

LoadingCurrent

3200mA@4.8V
 3800mA@6.0V
 4300mA@7.4V
 4400mA@8.4V

Item# REEFS137
