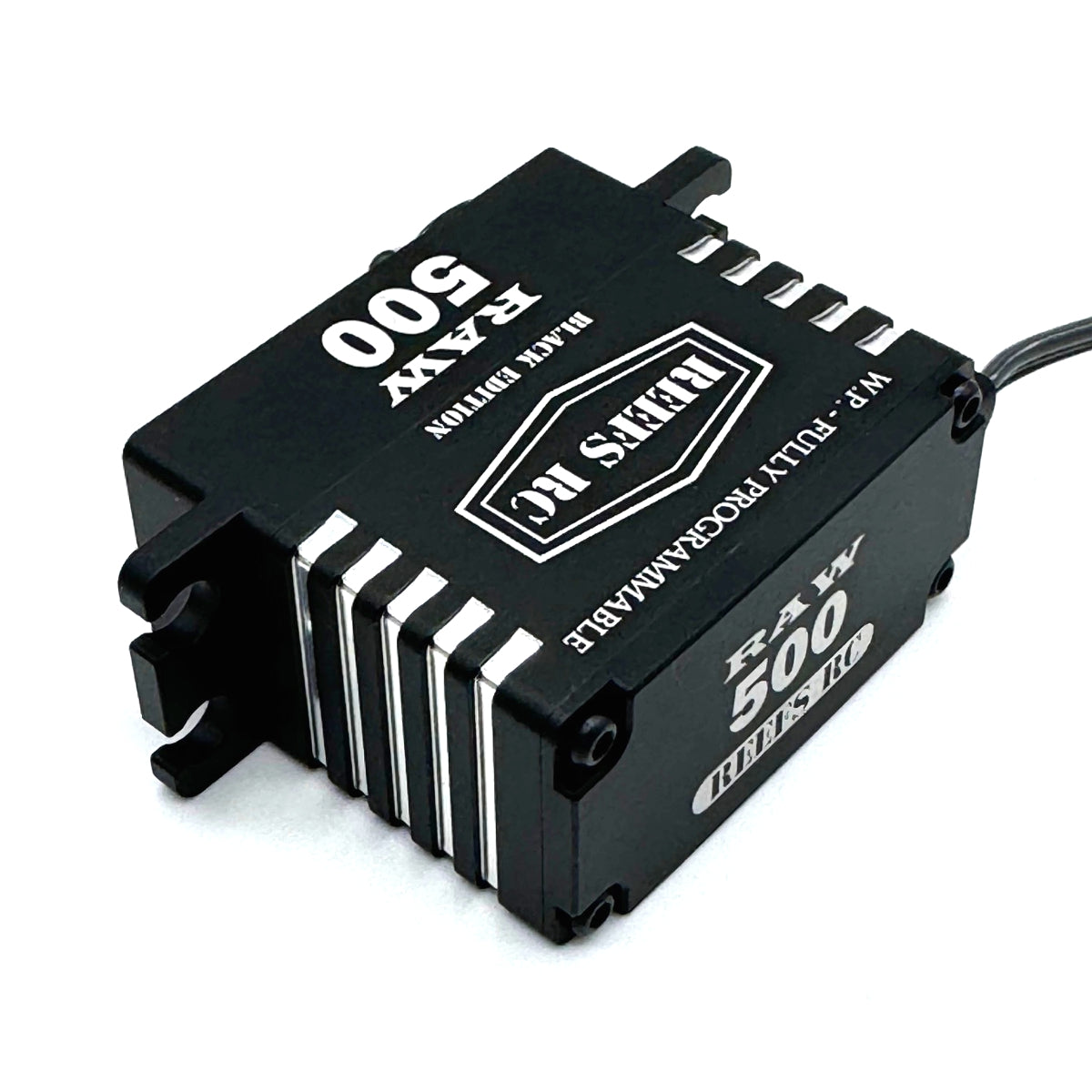

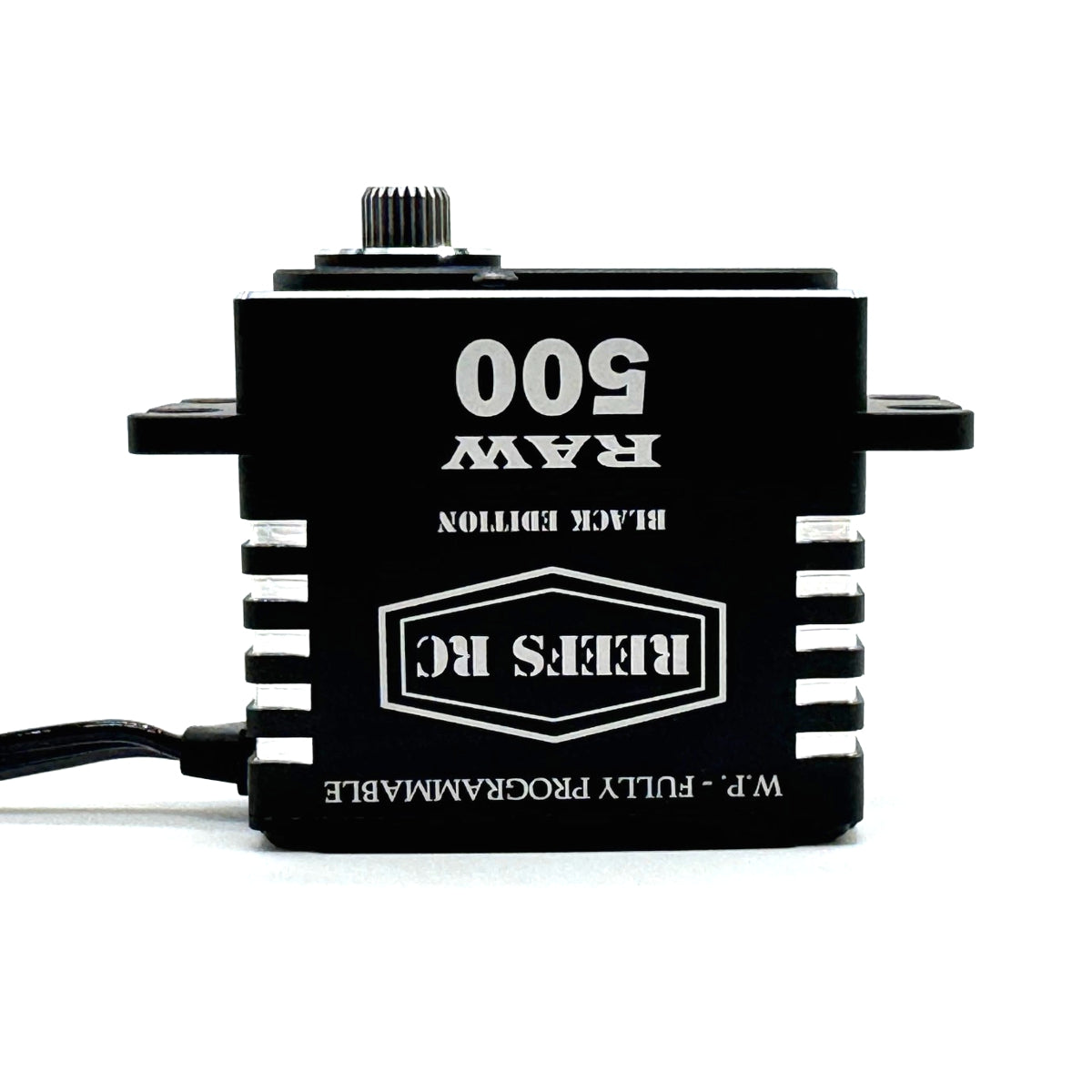

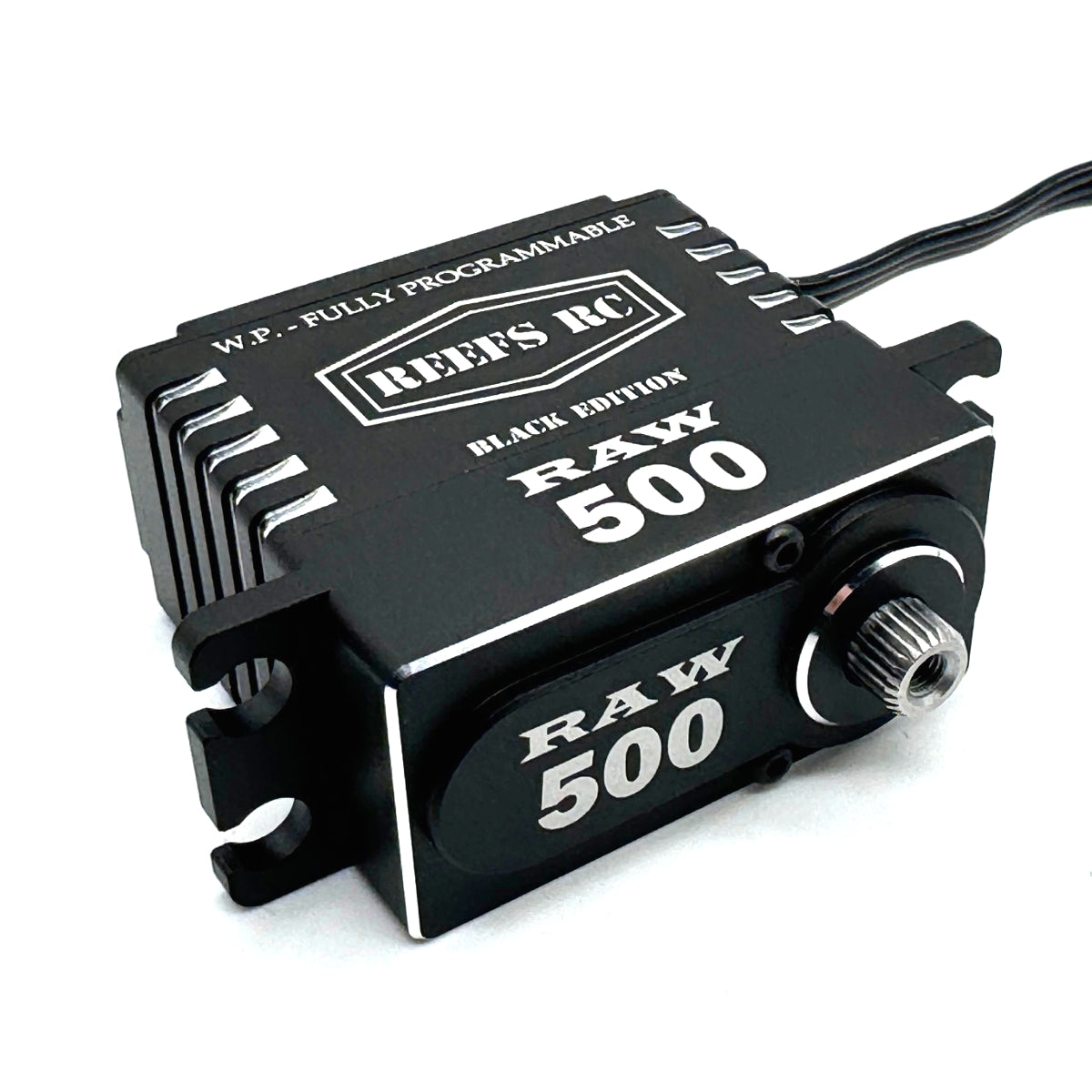

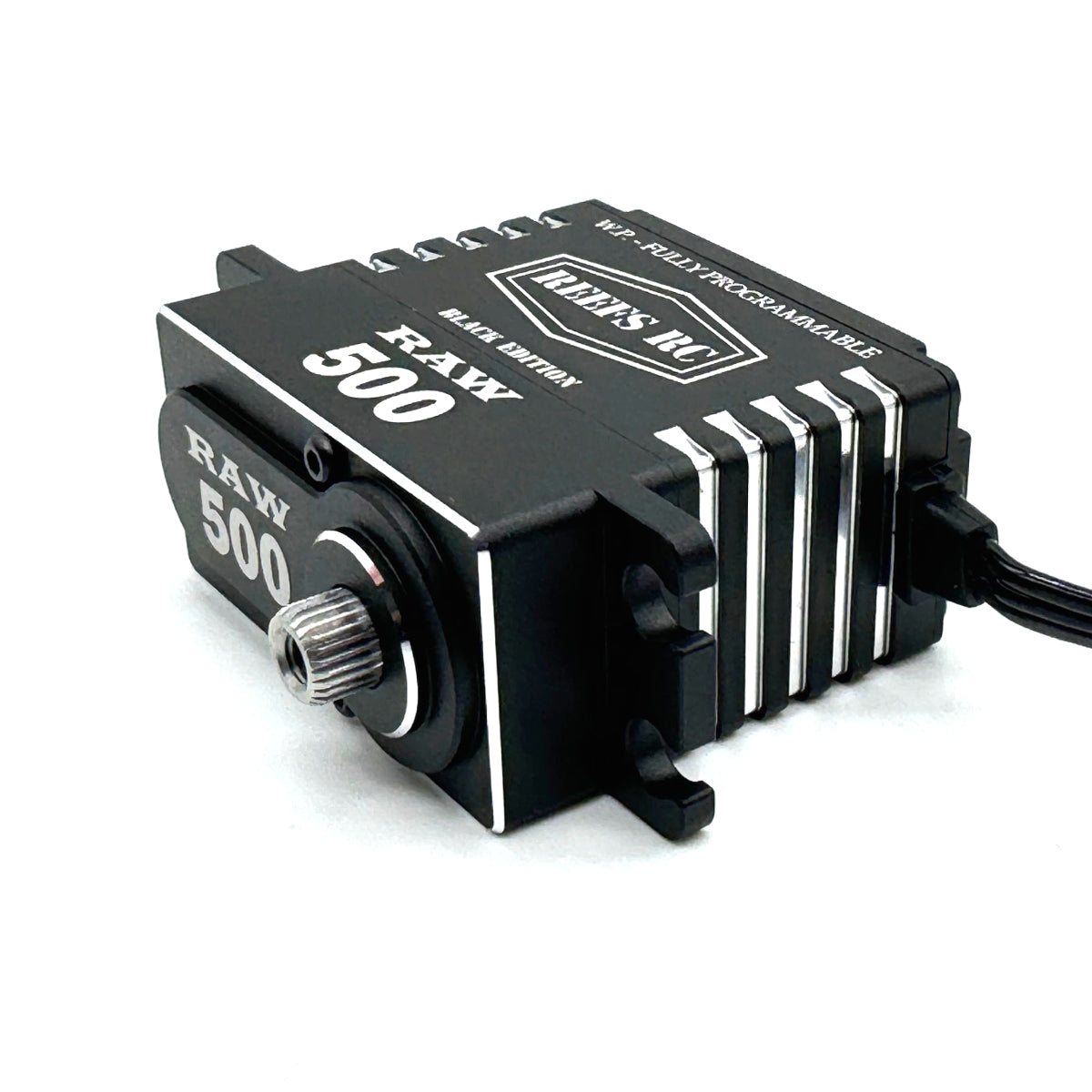

RAW500 BLACK EDITION
RAW500 BLACK EDITION
Regular price
$139.99
Regular price
Sale price
$139.99
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
The servo that changed the game is now available in BLACK! The RAW500 is a powerhouse of a servo that has proven itself time and time again. There's a reason it's our most recommended servo.
*Also available in LIMITED EDITION PINK

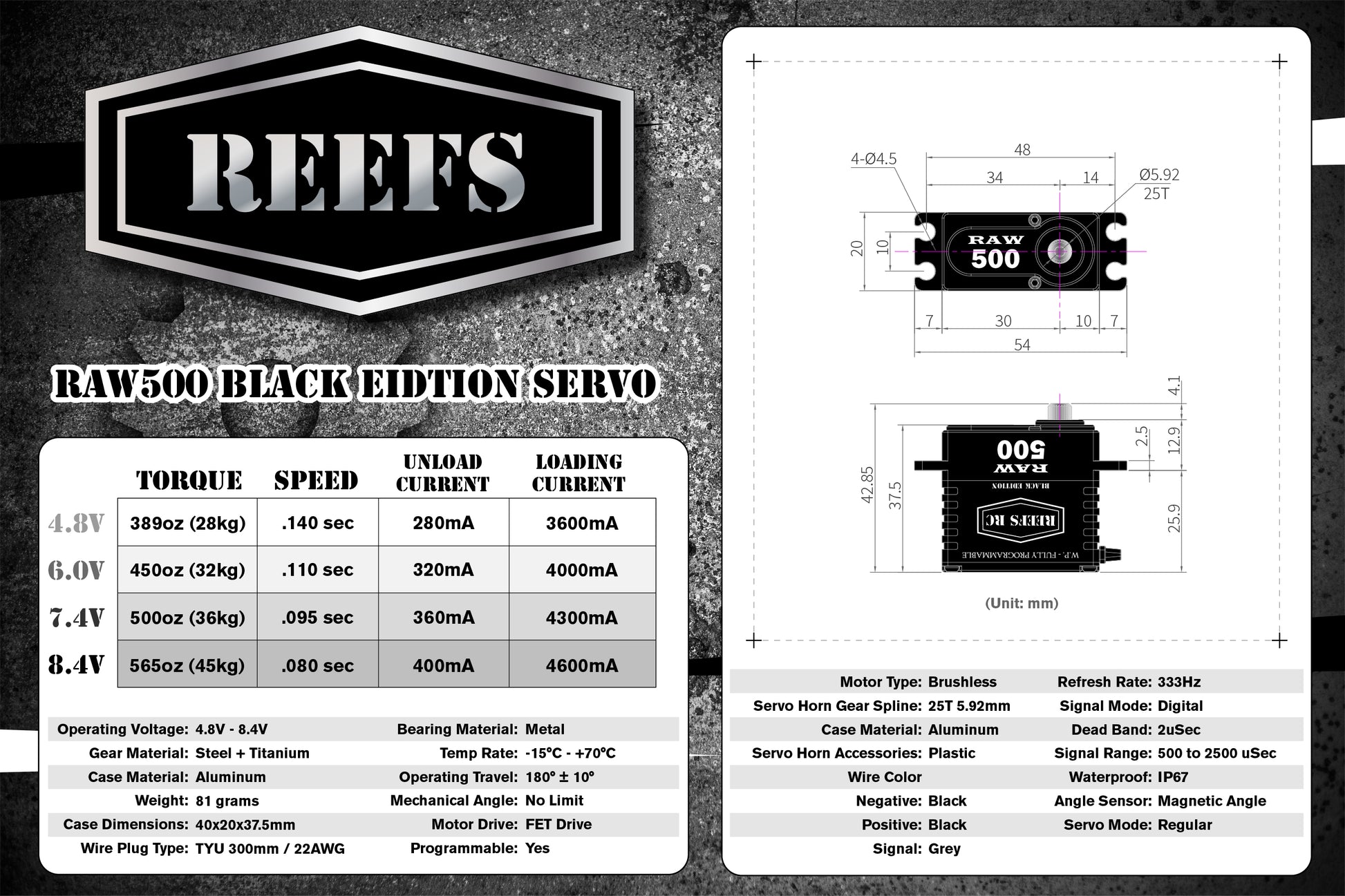

SPECIFICATIONS:
- SUBMARINE WATERPROOF: 7 Point Seals
- Magnetic Angle Sensor
- Pulse Width Modulation Control
- Fully Programmable w/ REEFS Software (REEFS USB LINK required)
- Voltage: 4.8V - 8.4V
- Internal: Steel Gears / All CNC Aluminum REEFS Case
- Bearing Type: 2 Ball Bearings / Weight: 2.75oz

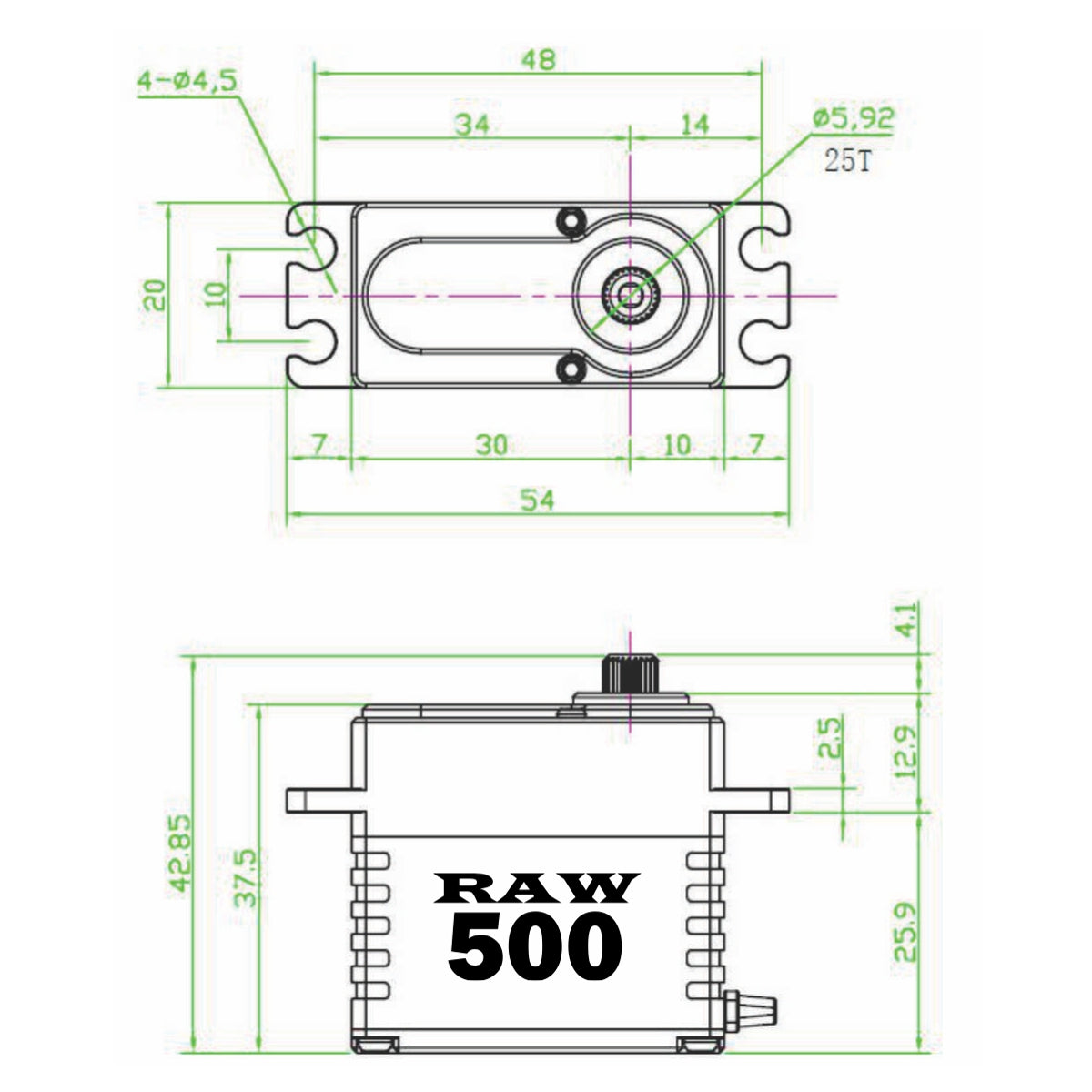

- Dimensions: 1.57 x .79 x 1.5 (LWH)
- Torque: 450oz @ 6v/ 500oz @7.4v/ 565oz @8.4v
- Speed: .11sec @6v/.095sec @7.4v/.08sec @8.4v
- Spline: 25T
- Dead Band Width: 2¦Ìs
- BEC Not Required (Recommended for best performance)
Unload Current: 320mA @ 6.0V / 360mA @ 7.4V / 400mA @ 8.4V
Loading Current: 4000mA @ 6.0V / 4300mA @ 7.4V / 4600mA @ 8.4V
For programming, the USB Link is required.
Item# REEFS178
