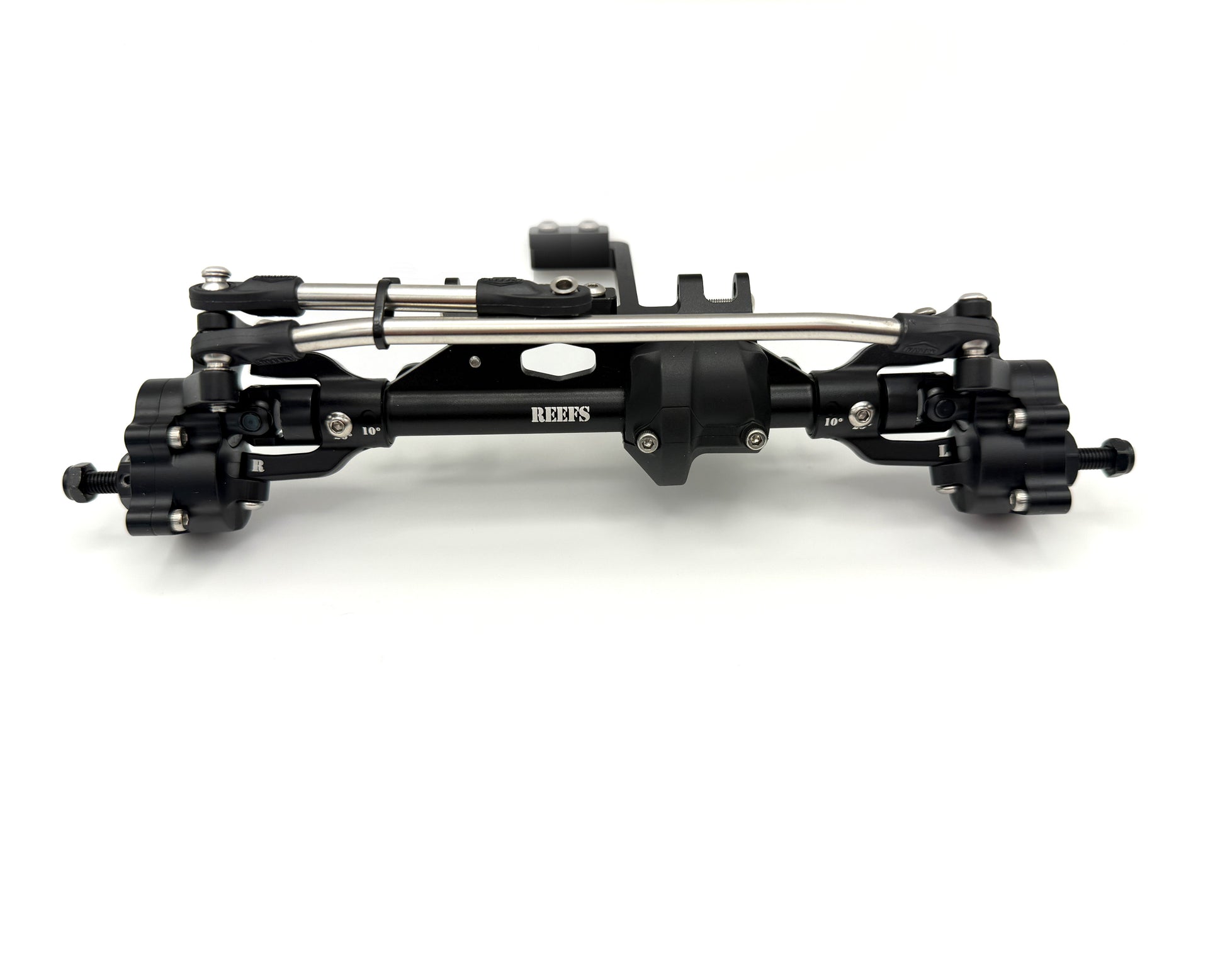

Now Available: Complete XP199 Portal Axles from our popular XP10!

The REEFS XP199 Axle delivers up to an incredible 60° of steering angle for exceptional maneuverability. High-clearance C-hubs and a low-profile differential cover to maximize ground clearance, giving you the confidence to tackle demanding terrain.

Built for strength from the inside out, the fully assembled axles feature precision-machined, hardened steel gears, spools, and shafts throughout. From the robust 6 mm portal stub shafts to every internal component, the XP199 Portal Axles are engineered to withstand today’s highest-torque applications while delivering the durability and performance serious builders expect.

• Housing: Black Anodized Machined Aluminum

• Gears: Machined, Hardened Steel Throughout

• Steering Angle: Up to 60∘

• Axle Shafts: Machined, Hardened Steel, 5mm Pinned

• Universals: Machined, Hardened Steel

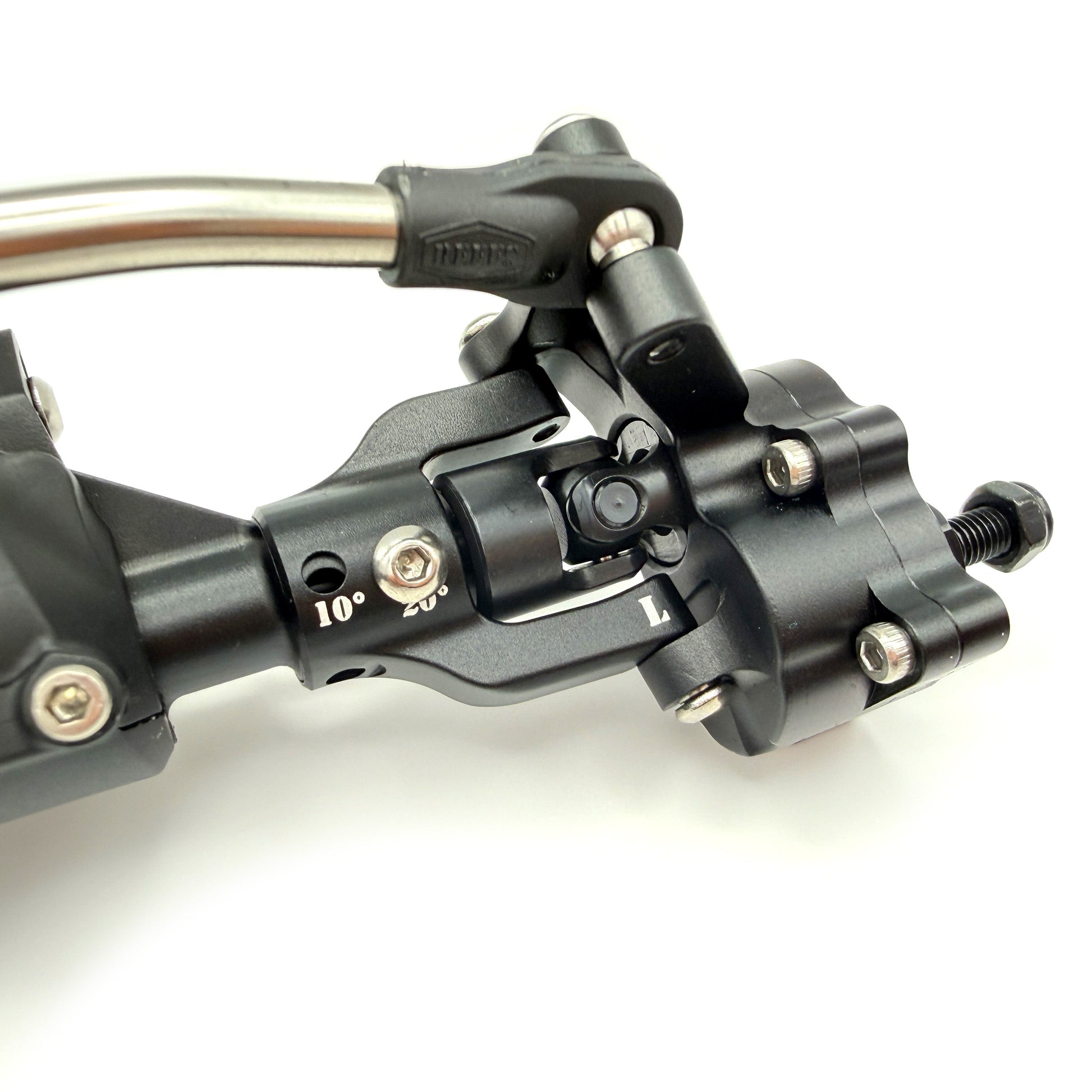

• C-Hubs: Machined Aluminum with 0∘, 10∘, and 20∘ Caster Adjustment

• Knuckles & Front Portal Covers: Machined Aluminum

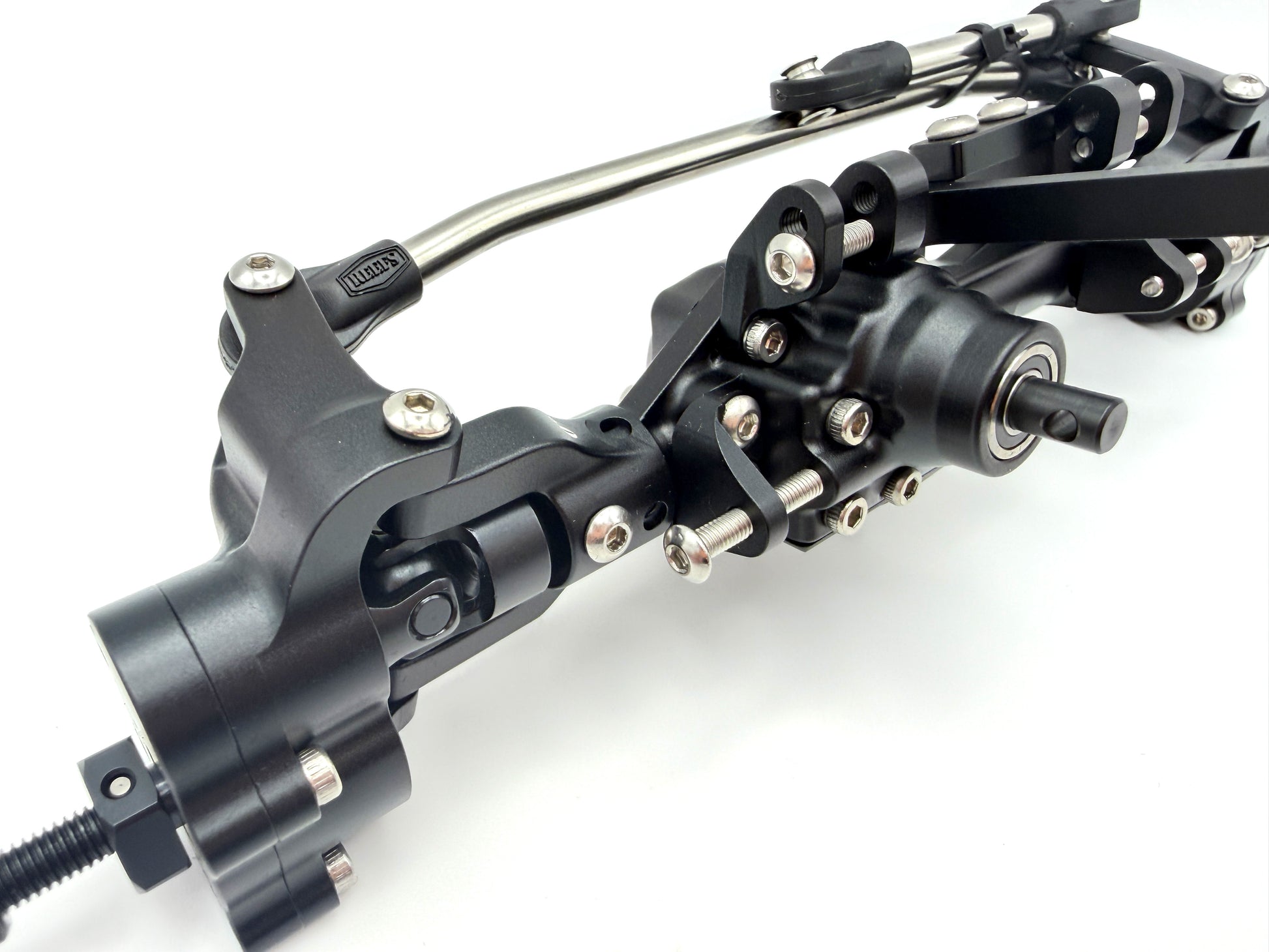

• Servo Mount: BTA (Behind the Axle) with Skid Plate

• Spools: Machined, Hardened Steel, Keyed

• Portal Stub Shafts: 6mm with M5 Threads

TECHNICAL SPECS:

• Ring and Pinion: 8T/30T
• Portal Gears: 18T/31T
• Hex to Hex width: 199mm.
• Servo on Axle mounting.
• Shims included for use between the Center driveshaft and housing.
