Triple4 Smart Servo Winch #REEFS79

The Triple4 Smart Winch can be used as a Winch or Steering servo!

Switch from Winch to Steering servo with a couple clicks on our REEFS Software!

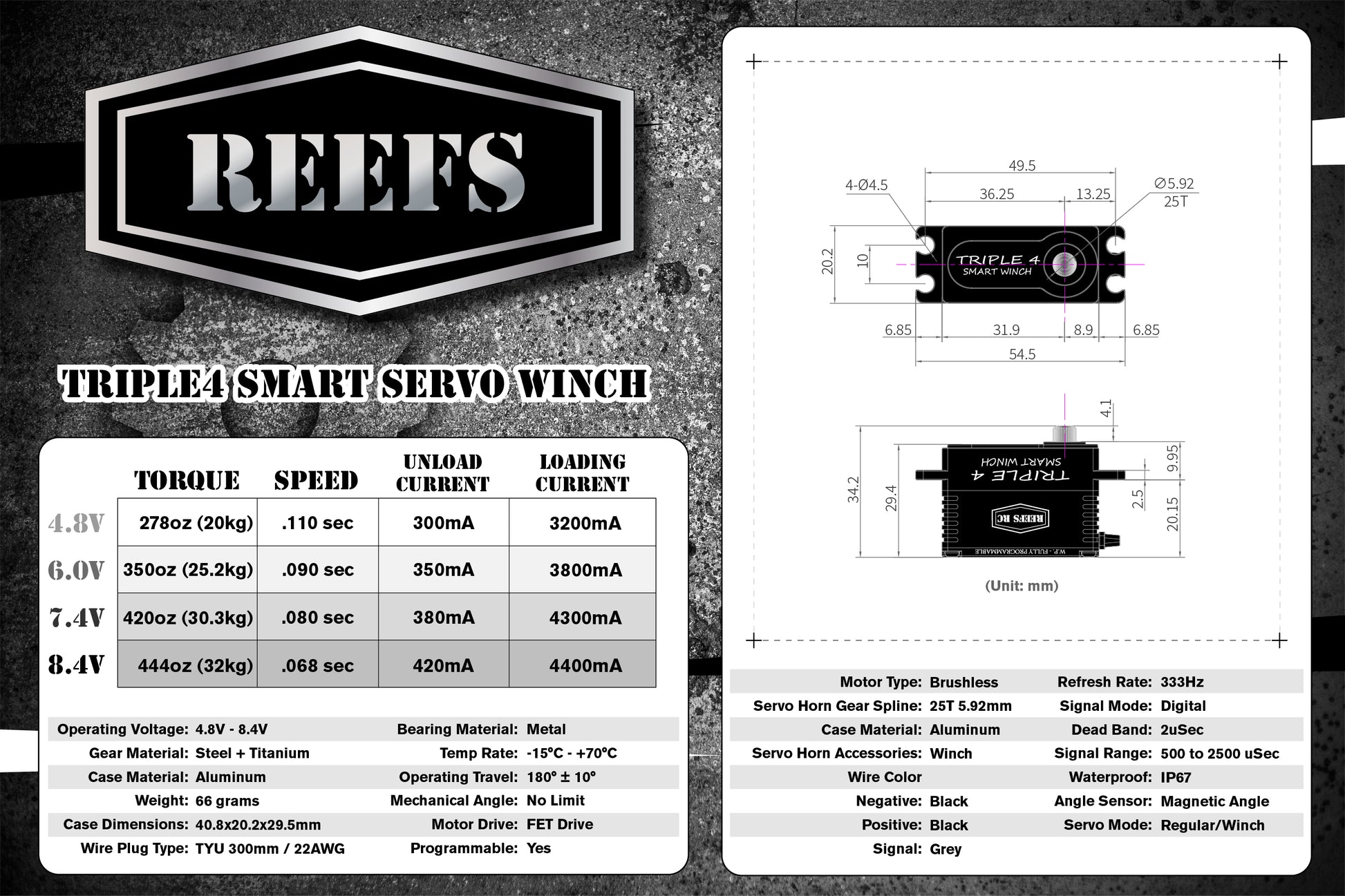

SPECIFICATIONS:

• Fully Programmable
• High Torque High Speed
• Brushless Servo or Servo Winch
• SUBMARINE WATERPROOF: 7 Point Seals
• 7075 LowPro CNC SPOOL w/ Clear Finish
• 7’ Silicone Coated Steel Braided Line,
• w/ Scale Recovery Hook
• Magnetic Angle Sensor / Voltage 4.8V - 8.4V
• REEFS LINK required for Programming
• Internal: Steel Gears / CNC Aluminum Casing
• Bearing Type: 2 Ball Bearings / Weight: 2.3oz
• Dimension: 1.6 x .79 x 1.16 (LWH)
• Torque: 350oz @ 6v/ 420oz @7.4v/ 444oz @8.4v
• Speed: .09sec @6v/.08sec @7.4v/.068sec @8.4v
• Spline: 25T / Dead Band Width: 2¦Ìs
• Operating Temperature: -15C°~ +70C° (5F / 158F)
• BEC Not Req. Recommended for max performance

For programming, the USB Link is required.

Item# REEFS79
